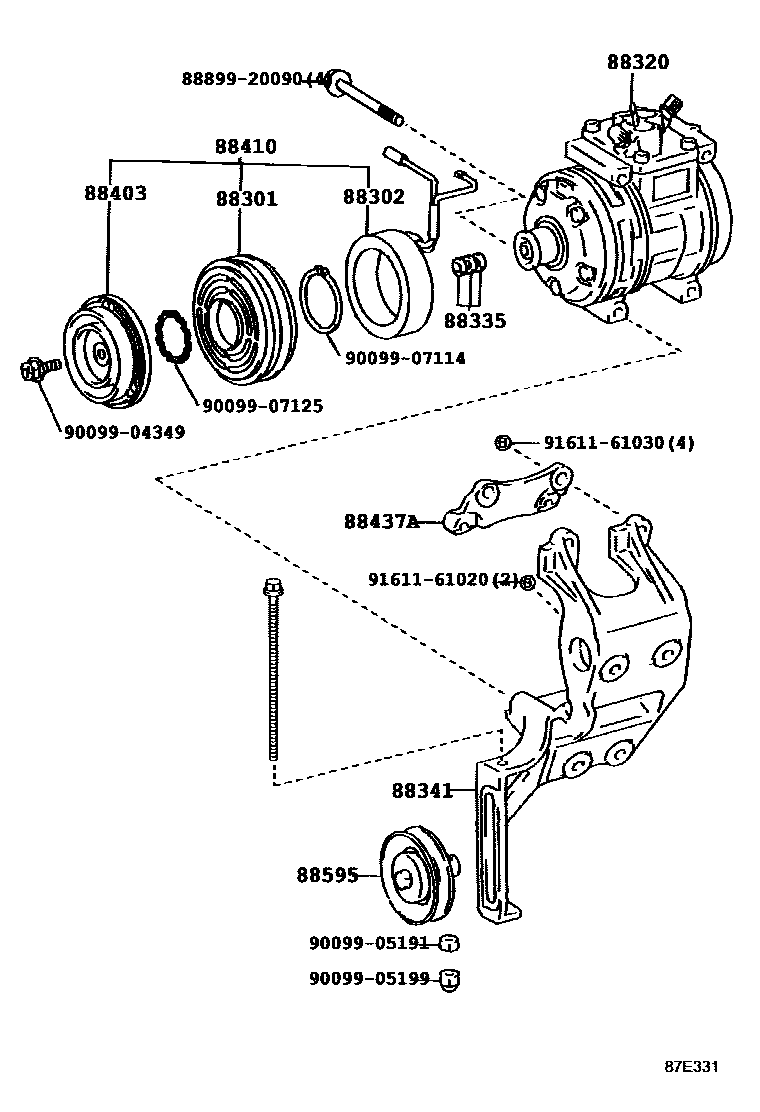

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-30430iKXC10198907-199511

main88412-38010iCXC10199105-199409

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22210iCXC10199105-199401

main88411-22310iKXC10199401-199511

main88411-2B080iKXC10198907-199401

main88411-38010iCXC10199401-199409

88320COMPRESSOR ASSY, COOLER

main88320-27100iKXC10198907-199401

main88320-38010iCXC10199105-199401

main88320-38030iKXC10199401-199511

main88320-38040iCXC10199401-199409

88335GASKET KIT, OVERHAUL

main88335-14020iCXC10,KXC10198907-199511

88341PLATE, FRONT VALVE

main88345-38010iKXC10199105-199511

main88345-90P80iKXC10198907-199105

main88444-27011iCXC10199105-199409

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCXC10,KXC10198907-199401

main88403-30290iCXC10,KXC10199401-199511

88410CLUTCH ASSY, MAGNET

main88410-22480iKXC10199401-199511

main88410-38010iCXC10199105-199401

main88410-38030iCXC10199401-199409

main88410-90P80iKXC10198907-199401

88437AATTACHMENT, COMPRESSOR

main88437-27040iKXC10198907-199511

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35020iCXC10,KXC10198907-199511

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009905191

main90099-05191

9009905199

main90099-05199

9009907114

main90099-07114

9009907125

main90099-07125

9161161020

main91611-61020

9161161030

main91611-61030

17 parts on this diagram · 2 diagrams in section
