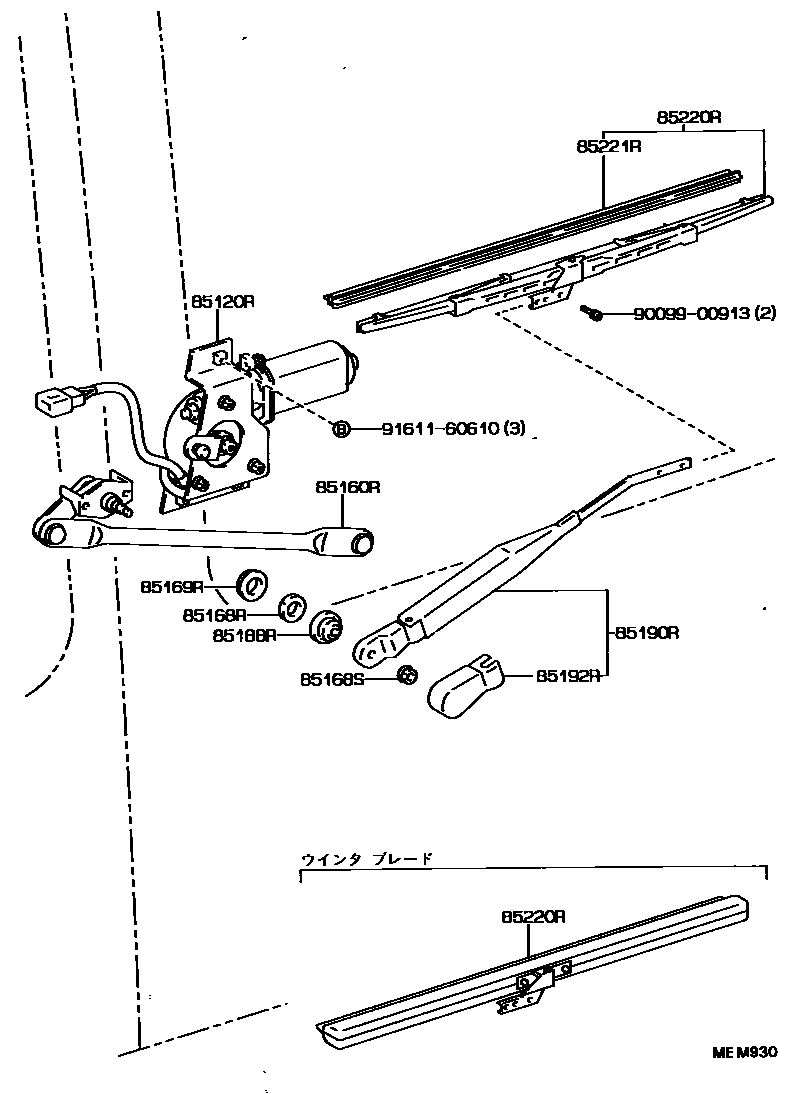

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-90P80iCXC10,KXC10198907-199511

85160RLINK ASSY, REAR WIPER

main85160-90P81iCXC10,KXC10198907-199511

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85186-90D00iCXC10,KXC10198907-199511

85168SNUT, REAR WIPER LINK PIVOT, NO.2

main90179-06070iCXC10,KXC10198907-199511

sub90179-06159

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-90P80iCXC10,KXC10198907-199511

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-90D00iCXC10,KXC10198907-199511

85190RARM ASSY, REAR WIPER

main85190-90P81iCXC10,KXC10198907-199511

85192RCOVER, REAR WIPER ARM

main85195-95J01iCXC10,KXC10198907-199511

85220RBLADE ASSY, REAR WIPER

main85220-14170iKXC10198907-199003

sub85291-14010

main85220-22370iKXC10198907-199006

sub85220-22600

main85220-22371iCXC10,KXC10199006-199511

sub85220-22600

main85291-14010iCXC10,KXC10199003-199511

sub85291-28H00

85221RBLADE, REAR WIPER

main85221-87002iCXC10,KXC10198907-199511

sub85214-12H90

9009900913

main90099-00913

9161160610

main91611-60610

12 parts on this diagram · 1 diagram in section
