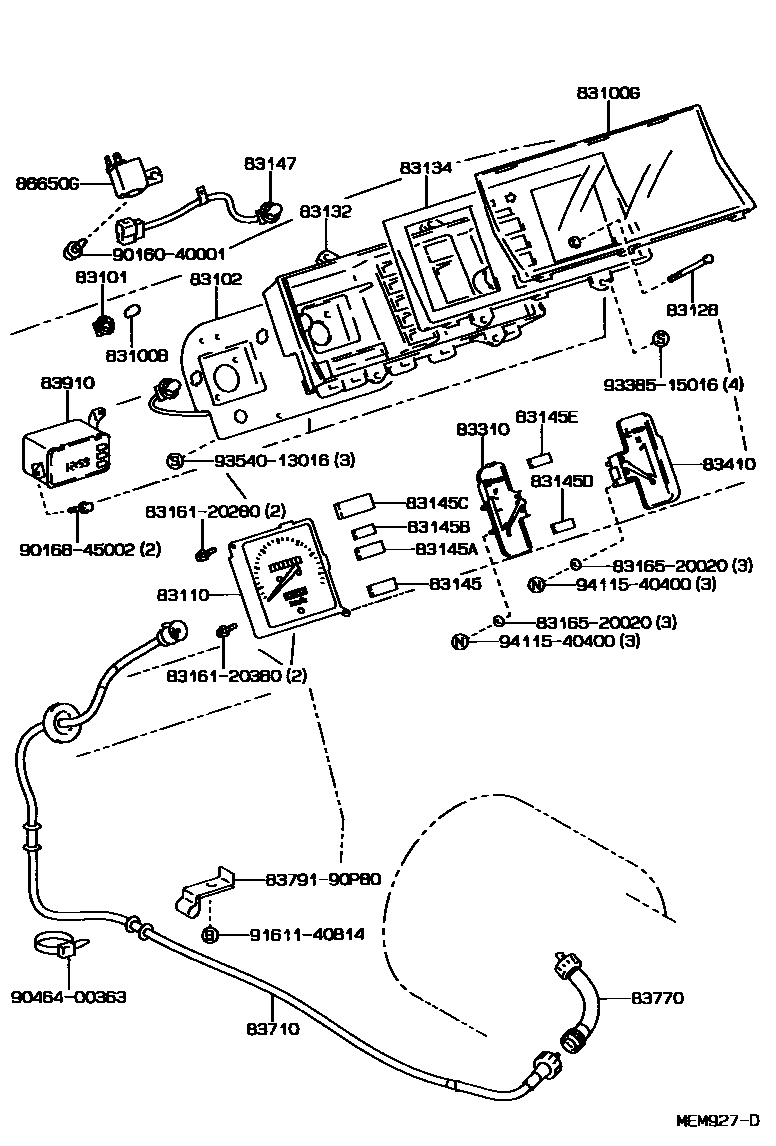

METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×3iCXC10,KXC10199105-199511

main90981-11018iCXC10199105-199409

main99132-12034×9iCXC10..4HC; CXC10..5H199105-199409

83100GGLASS, COMBINATION METER

main83138-95700iKXC10198907-199511

main83138-95A05iCXC10199105-199409

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iCXC10199105-199409

12V 1.4W BULB

main83101-20040×9iCXC10..4HC; CXC10..5H199105-199409

12V 3.4W BULB

main83101-20070×3iCXC10,KXC10199105-199511

GREEN CAP BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-38020iKXC10199105-199511

main83247-90P00iKXC10198907-199105

main83247-95J33iCXC10199105-199409

83110SPEEDOMETER ASSY

main83110-38090iKXC10199308-199511

main83110-38100iCXC10199308-199409

main83110-95A28iKXC10198907-199308

main83110-95A30iCXC10199105-199308

83128KNOB, TRIP COUNTER

main83128-90P00iCXC10,KXC10198907-199511

83132CASE, COMBINATION METER

main83132-95705iKXC10198907-199511

main83132-95J08iCXC10199105-199409

83134COVER, COMBINATION METER, NO.1

main83134-95709iCXC10,KXC10198907-199511

83145LENS, METER, NO.1

main83145-38080iCXC10199105-199409

main83145-38140iKXC10199105-199511

main83145-95018iKXC10198907-199105

83145ALENS, METER, NO.2

main83145-38060iCXC10199105-199409

main83145-38120iKXC10199105-199511

main83145-90P00iKXC10198907-199105

83145BLENS, METER, NO.3

main83145-95A15iCXC10,KXC10198907-199511

83145CLENS, METER, NO.4

main83145-95013iCXC10,KXC10198907-199511

83145DLENS, METER, NO.5

main83145-38040iCXC10,KXC10..3HC,5H199105-199511

main83145-38100iCXC10..4HC199105-199409

main83145-95J71iKXC10198907-199105

83145ELENS, METER, NO.6

main83145-38020iCXC10,KXC10199105-199511

main83145-95J70iKXC10198907-199105

83147LAMP, METER NO.1

main83147-90P00iKXC10198907-199105

83310GAGE ASSY, FUEL RECEIVER

main83243-95J30iCXC10,KXC10198907-199511

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-90P01iKXC10198907-199105

main83244-90P02iKXC10199105-199511

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-38050iKXC10..5H199105-199511

main83710-38060iKXC10..3HC199105-199511

main83710-38070iCXC10..5H199105-199409

main83710-38080iCXC10..4HC199105-199409

main83710-90P81iKXC10198907-199105

83770ADAPTER ASSY, SPEEDOMETER CABLE

main83770-22100iKXC10198907-199511

83910CLOCK ASSY

main83910-90P80iCXC10,KXC10198907-199511

86650GBUZZER ASSY

main86650-95010iCXC10,KXC10198907-199511

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316520020MIRROR, COMBINATION METER, NO.2

main83165-20020

8379190P80

main83791-90P80

9016040001

main90160-40001

9016845002

main90168-45002

9046400363

main90464-00363

9161140814

main91611-40814

9338515016

main93385-15016

9354013016

main93540-13016

9411540400

main94115-40400

32 parts on this diagram · 2 diagrams in section
