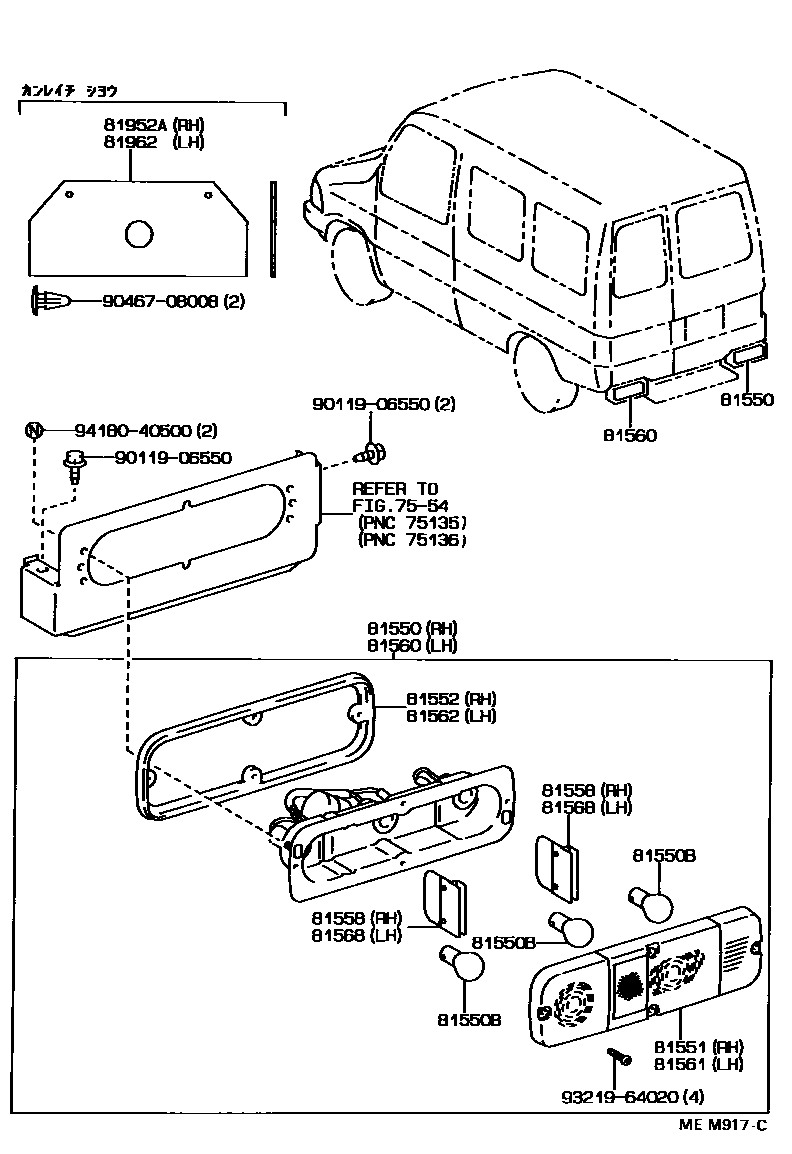

REAR COMBINATION LAMP

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

81550LAMP ASSY, REAR COMBINATION, RH

main81550-90D01iCXC10,KXC10198907-199511

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iCXC10,KXC10198907-199511

main99132-21210×2iCXC10,KXC10198907-199511

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iCXC10,KXC10198907-199511

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iCXC10,KXC10198907-199511

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060×2iCXC10,KXC10198907-199511

81560LAMP ASSY, REAR COMBINATION, LH

main81560-90D01iCXC10,KXC10198907-199511

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iCXC10,KXC10198907-199511

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-25040iCXC10,KXC10198907-199511

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060×2iCXC10,KXC10198907-199511

81952ACOVER, REAR LAMP, RH

main81952-90P80iCXC10,KXC10198907-199511

81962COVER, REAR LAMP, LH

main81952-90P80iCXC10,KXC10198907-199511

9011906550

main90119-06550

9046708008

main90467-08008

9321964020

main93219-64020

9418040500

main94180-40500

16 parts on this diagram · 1 diagram in section
