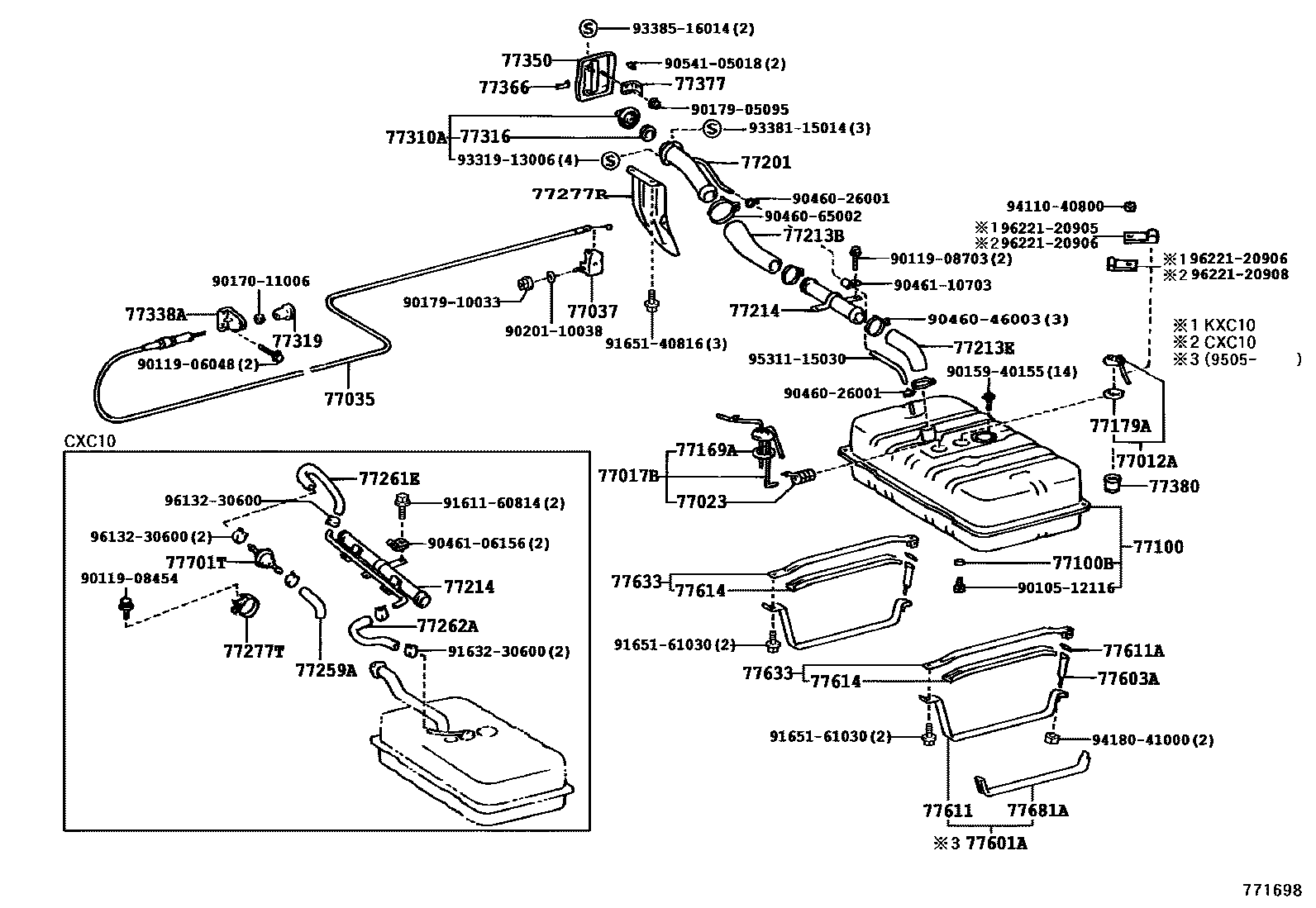

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-27110iKXC10198907-199511

main77012-27140iCXC10199105-199409

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-27180iKXC10198907-199511

main77017-27210iCXC10199105-199409

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iKXC10198907-199511

main77023-32010iCXC10199105-199409

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-90P80iCXC10,KXC10198907-199511

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iCXC10,KXC10198907-199511

77100TANK ASSY, FUEL

main77001-27380iCXC10,KXC10198907-199511

77100BGASKET(FOR FUEL TANK)

main90430-12245iCXC10,KXC10198907-199511

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iCXC10,KXC10198907-199511

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iCXC10,KXC10198907-199511

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-27220iCXC10,KXC10198907-199511

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-27100iCXC10,KXC10198907-199511

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-27110iCXC10,KXC10198907-199511

77214PIPE, FUEL TANK FILLER

main77210-27030iCXC10199105-199409

main77214-27020iKXC10198907-199511

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-27200iCXC10199105-199409

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main95333-06030iCXC10199105-199409

sub95338-06030

77262AHOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)

main95333-04030iKXC10198907-199511

main95333-06030iCXC10199105-199409

sub95338-06030

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-27060iCXC10,KXC10198907-199511

77277TBRACKET, CHECK VALVE

main77277-28011iCXC10,KXC10199105-199511

77310ACAP ASSY, FUEL TANK

main77310-12100iKXC10198907-199511

main77310-35061iCXC10199105-199409

77316GASKET, FUEL TANK CAP

main77316-12050iCXC10,KXC10198907-199511

77319KNOB, FUEL TANK CAP

main77319-89101iCXC10,KXC10198907-199511

77338ABRACKET, FUEL TANK CAP LOCK CONTROL ROD

main77338-90P80iCXC10,KXC10198907-199511

77350LID ASSY, FUEL FILLER OPENING

main77350-90P80iCXC10,KXC10198907-199511

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-90P50iCXC10,KXC10198907-199511

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-24010iCXC10,KXC10198907-199511

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iCXC10,KXC10198907-199511

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-27060iKXC10199505-199511

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-27030iCXC10,KXC10198907-199511

77611BAND, FUEL TANK

main77602-27080iCXC10,KXC10198907-199511

sub77601-27060

77611APIN (FOR FUEL TANK BAND)

main77653-25010iCXC10,KXC10198907-199511

77614SEAT, FUEL TANK BAND

main77681-22010iCXC10,KXC10199105-199511

main77681-27120iKXC10198907-199105

sub77681-22010

77633STAY, FUEL TANK

main77501-27050iCXC10,KXC10198907-199511

77681ASEAT, FUEL TANK BAND

main77681-27130iKXC10199505-199511

main77681-27140iCXC10,KXC10198907-199505

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iCXC10199105-199409

9010512116

main90105-12116

9011906048

main90119-06048

9011908454

main90119-08454

9011908703

main90119-08703

9015940155

main90159-40155

9017011006

main90170-11006

9017905095

main90179-05095

9017910033

main90179-10033

9020110038

main90201-10038

9046026001

main90460-26001

9046046003

main90460-46003

9046065002

main90460-65002

9046106156

main90461-06156

9046110703

main90461-10703

9054105018

main90541-05018

9161160814

main91611-60814

9163230600

main91632-30600

9165140816

main91651-40816

9165161030

main91651-61030

9331913006

main93319-13006

9338115014

main93381-15014

9338516014

main93385-16014

9411040800

main94110-40800

9418041000

main94180-41000

9531115030

main95311-15030

9613230600

main96132-30600

9622120905

main96221-20905

9622120906

main96221-20906

9622120908

main96221-20908

63 parts on this diagram · 3 diagrams in section
