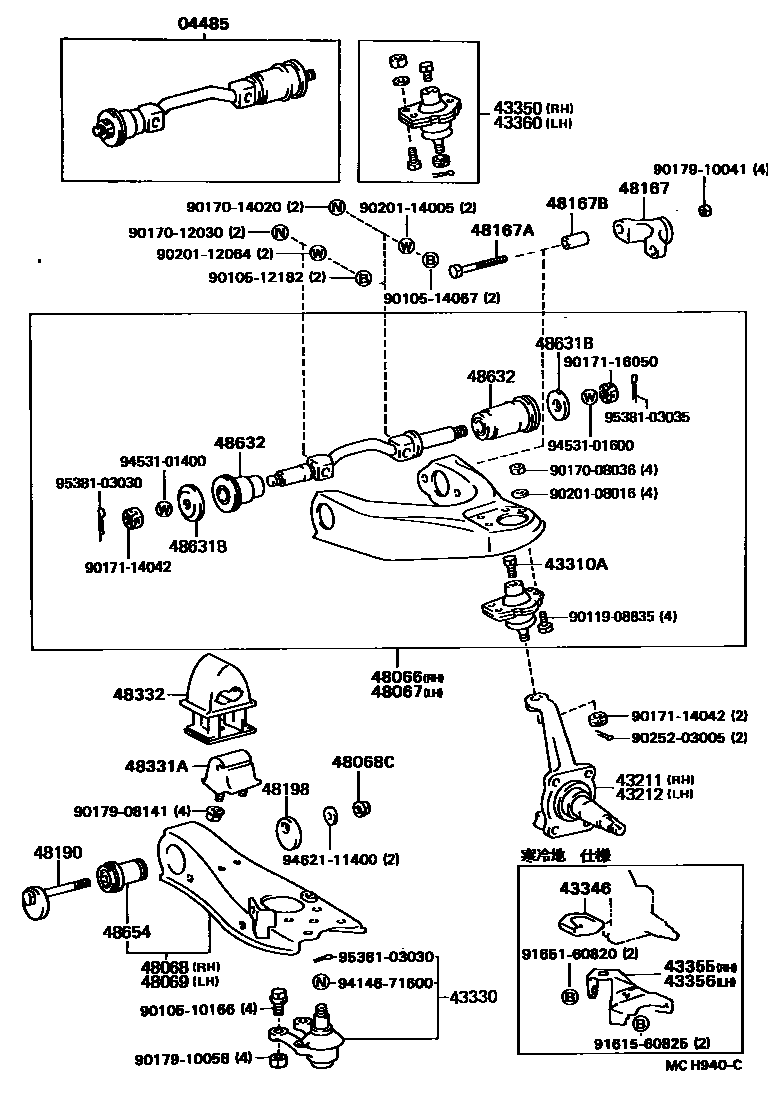

FRONT AXLE ARM & STEERING KNUCKLE
04485SHAFT KIT, UPPER SUSPENSION ARM
43211KNUCKLE, STEERING, RH
43212KNUCKLE, STEERING, LH
43310APLUG (FOR BALL JOINT)
43330JOINT ASSY, LOWER BALL, FRONT
43346PROTECTOR, LOWER BALL JOINT DUST COVER
43350JOINT ASSY, FRONT UPPER BALL, RH
43355DEFLECTOR, LOWER ARM ICE, RH
43356DEFLECTOR, LOWER ARM ICE, LH
43360JOINT ASSY, FRONT UPPER BALL, LH
48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48167ARM, TORQUE
48167ABOLT(FOR TORQUE ARM SETTING)
48167BTUBE(FOR TORQUE ARM SETTING BOLT)
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48331ABUMPER, FRONT SPRING, NO.1
48332BUMPER, FRONT SPRING, NO.2
48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
48632BUSH, UPPER ARM
48654BUSH, LOWER ARM
9010510166
main90105-10166
9010512182
main90105-12182
9010514067
main90105-14067
9011908835
main90119-08835
9017008036
main90170-08036
9017012030
main90170-12030
9017014020
main90170-14020
9017114042
main90171-14042
9017116050
main90171-16050
9017908141
main90179-08141
9017910041
main90179-10041
9017910058
main90179-10058
9020108016
main90201-08016
9020112064
main90201-12064
9020114005
main90201-14005
9025203005
main90252-03005
9161560825
main91615-60825
9165160820
main91651-60820
9414671600
main94146-71600
9453101400
main94531-01400
9453101600
main94531-01600
9462111400
main94621-11400
9538103030
main95381-03030
9538103035
main95381-03035
49 parts on this diagram · 1 diagram in section
