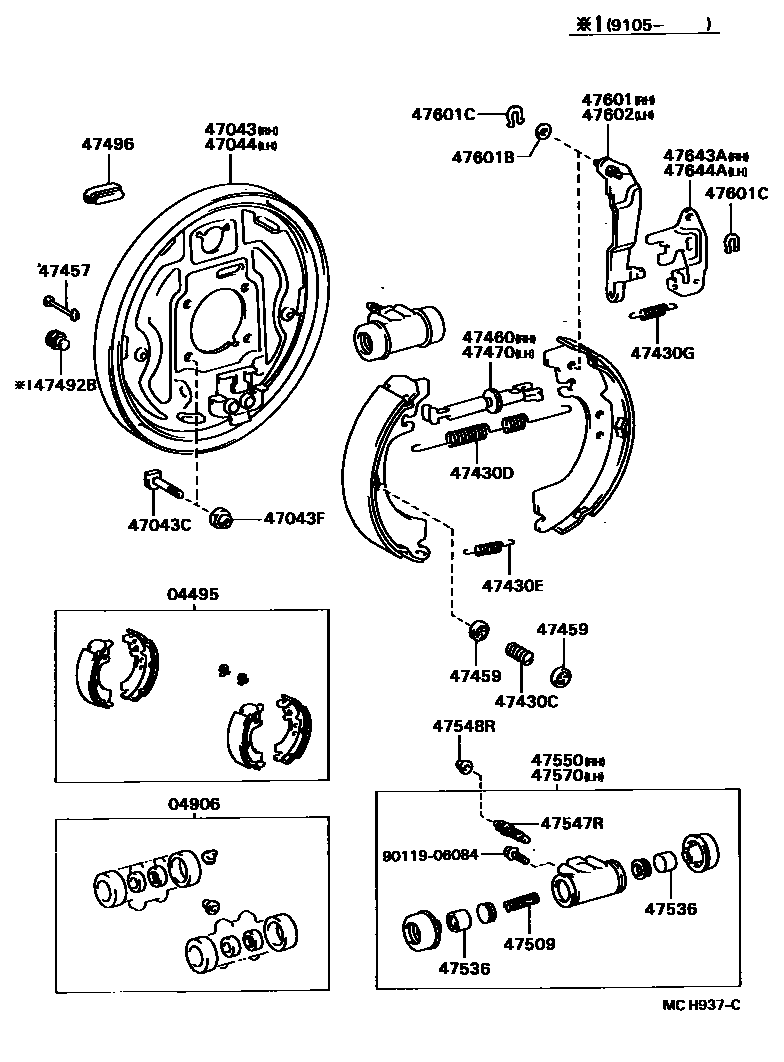

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-20051iKXC10198907-199105

main04495-27051iCXC10,KXC10199105-199511

main04497-20031iKXC10198907-199105

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-27020iCXC10,KXC10198907-199511

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-27110iCXC10,KXC10199105-199511

main47043-28040iKXC10198907-199105

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-27010×8iCXC10,KXC10198907-199511

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10127×8iCXC10,KXC10198907-199511

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-27110iCXC10,KXC10199105-199511

main47044-28040iKXC10198907-199105

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iCXC10,KXC10198907-199511

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iCXC10,KXC10198907-199511

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iCXC10,KXC10198907-199511

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iCXC10,KXC10198907-199511

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iCXC10,KXC10198907-199511

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iCXC10,KXC10198907-199511

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14040iCXC10,KXC10198907-199511

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14040iCXC10,KXC10198907-199511

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iCXC10,KXC10199105-199511

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iCXC10,KXC10198907-199511

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-35020×2iCXC10,KXC10198907-199511

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-27020×4iCXC10,KXC10198907-199511

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iCXC10,KXC10198907-199511

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iCXC10,KXC10198907-199511

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-27020iCXC10,KXC10198907-199511

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-27020iCXC10,KXC10198907-199511

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iCXC10,KXC10198907-199511

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iCXC10,KXC10199105-199511

main90564-08151×2iKXC10198907-199105

main90564-08152×2iKXC10198907-199105

main90564-08172×2iCXC10,KXC10199105-199511

main90564-08173×2iKXC10198907-199105

main90564-08174×2iKXC10198907-199105

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iKXC10198907-199105

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iCXC10,KXC10198907-199511

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-20020iCXC10,KXC10198907-199511

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-20020iCXC10,KXC10198907-199511

9011906084

main90119-06084

29 parts on this diagram · 1 diagram in section
