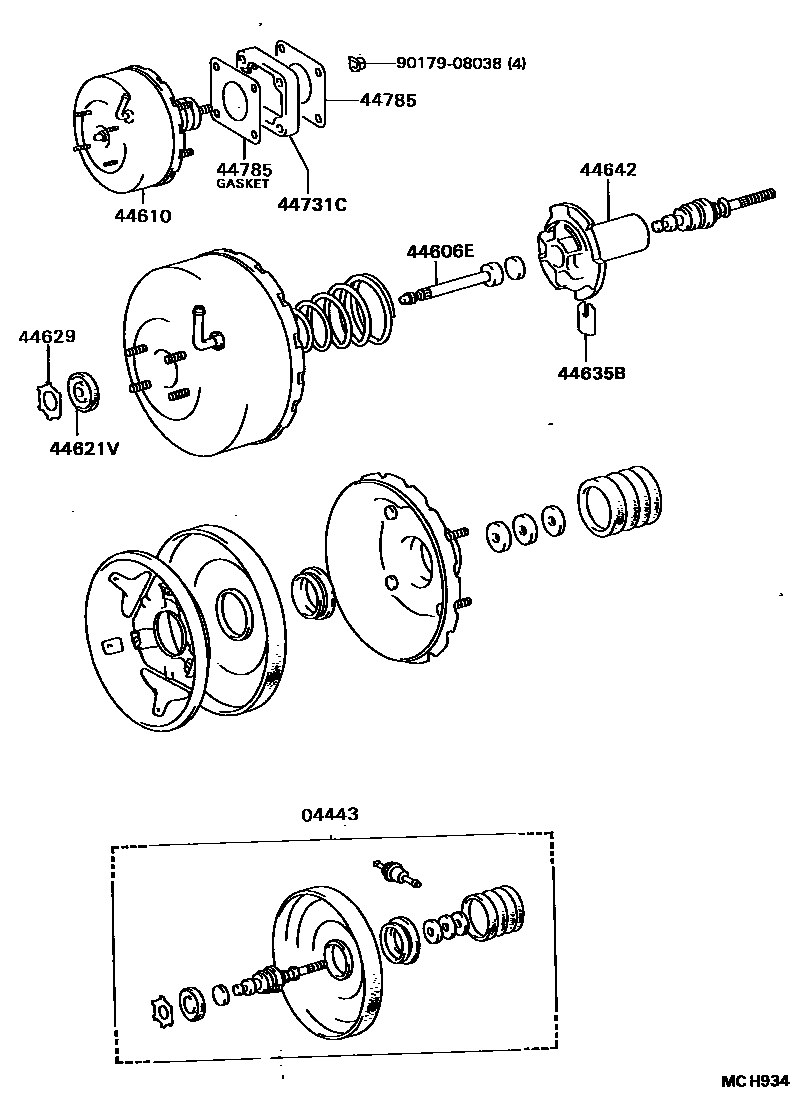

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-27430iKXC10198907-199511

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iKXC10198907-199511

44610BOOSTER ASSY, BRAKE

main44610-27380iKXC10198907-199511

main44610-27390iCXC10199105-199409

44621VSEAL, BOOSTER BODY

main44621-28120iKXC10198907-199511

44629RING, CIRCULAR INTERNAL

main44628-28120iKXC10198907-199511

44635BKEY, VALVE STOPPER

main44635-12630iKXC10198907-199511

44642PISTON, BRAKE BOOSTER

main44642-12520iKXC10198907-199511

44731CBRACKET, BRAKE BOOSTER

main44731-27030iCXC10,KXC10198907-199511

44785GASKET, BRAKE BOOSTER

main44785-32010×2iCXC10,KXC10198907-199511

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
