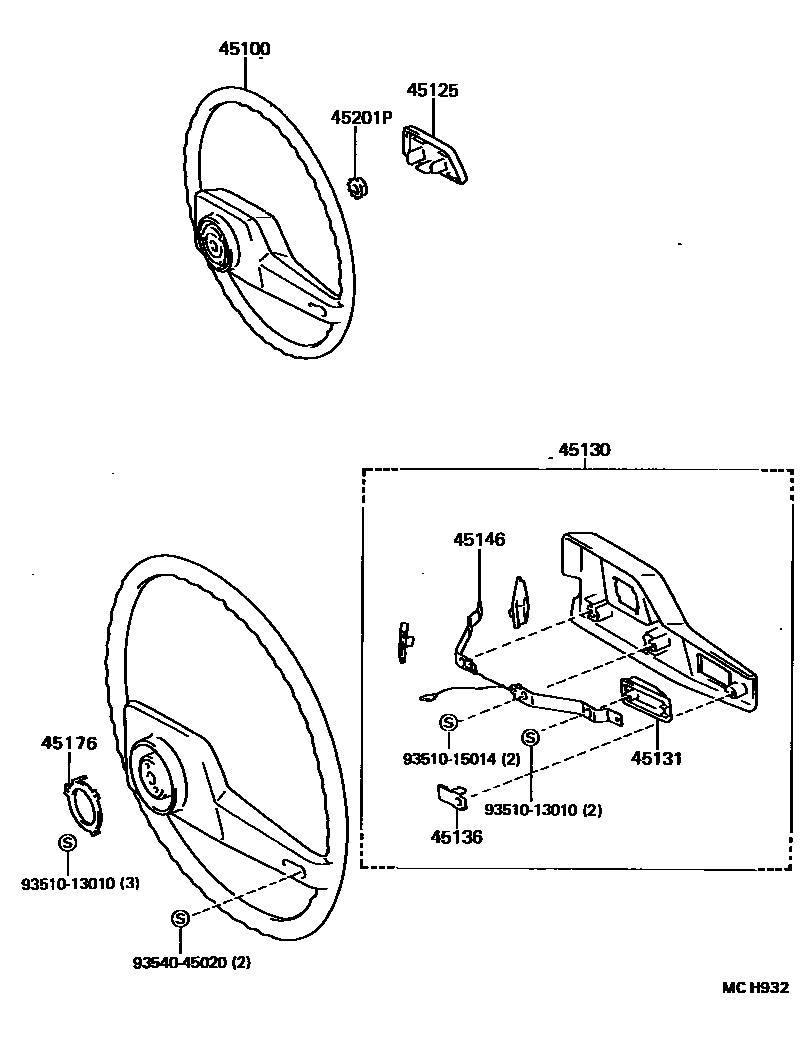

STEERING WHEEL

0001 1 0002 1��(���- �������)

45100WHEEL ASSY, STEERING

main45100-26121-B0iKXC10..DX; KXC10..STD..02S198907-199511

main45100-60190-03iCXC10199105-199409

45125MARK, STEERING WHEEL PAD

main45125-26060-B0iCXC10,KXC10198907-199511

BLUISH GRAY,TRIM1#

45130BUTTON ASSY, HORN

main45130-26110-B0iKXC10..DX; KXC10..STD..02S198907-199511

BLUISH GRAY,TRIM1#

main45130-27090-B0iCXC10199105-199409

BLUISH GRAY,TRIM1#

45131BUTTON, HORN, NO.1

main45131-26050×2iCXC10,KXC10198907-199511

45136PLATE, HORN BUTTON CONTACT

main45136-26020iCXC10,KXC10198907-199511

45146SPRING, HORN BUTTON CONTACT

main45146-26030×2iCXC10,KXC10198907-199511

45176RING, HORN CONTACT

main45176-30070iCXC10,KXC10198907-199511

45201PNUT, STEERING WHEEL SET

main90179-12071iCXC10,KXC10199306-199511

main90179-12086iCXC10,KXC10198907-199306

9351013010

main93510-13010

9351015014

main93510-15014

9354045020

main93540-45020

11 parts on this diagram · 2 diagrams in section
