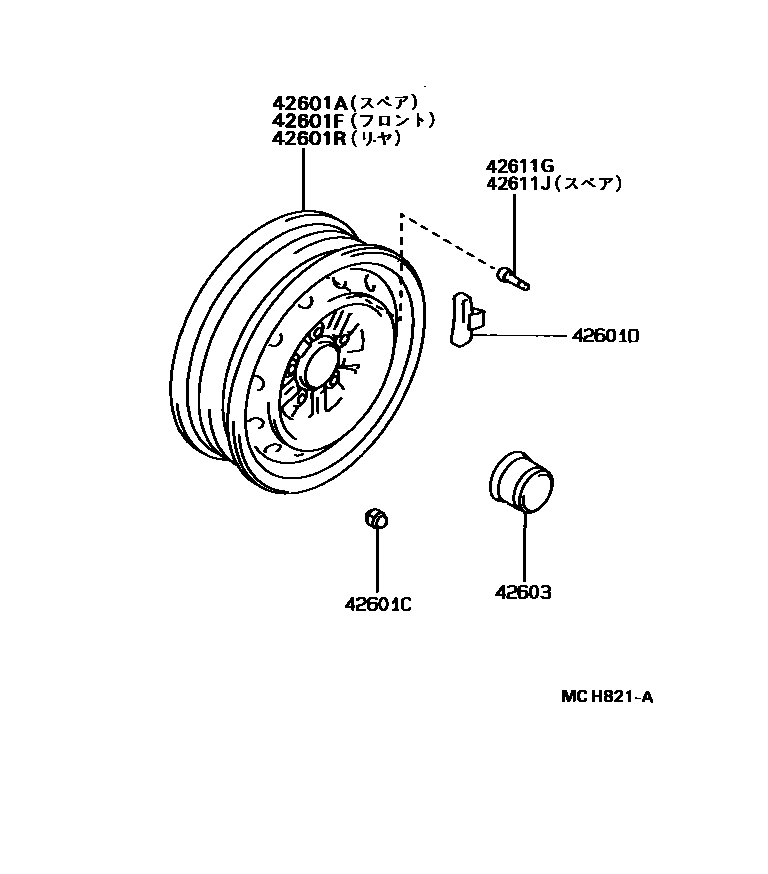

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42601-27130-03iKXC10198907-199105

42601CNUT, HUB (FOR AXLE)

main90942-01061×20iCXC10,KXC10198907-199511

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iCXC10,KXC10198907-199511

main90942-03020iCXC10,KXC10198907-199511

main90942-03022iCXC10,KXC10198907-199511

main90942-03025iCXC10,KXC10198907-199511

main90942-03027iCXC10,KXC10198907-199511

main90942-03029iCXC10,KXC10198907-199511

main90942-03031iCXC10,KXC10198907-199511

main90942-03041iCXC10,KXC10198907-199511

42601FWHEEL, DISC (FOR FRONT)

main42601-27130-03×2iKXC10198907-199105

42601RWHEEL, DISC (FOR REAR)

main42601-27130-03×2iKXC10198907-199105

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-27060×4iCXC10,KXC10198907-199511

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iCXC10,KXC10198907-199511

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iCXC10,KXC10198907-199511

8 parts on this diagram · 1 diagram in section
