Toyota DELIBOY — REAR AXLE SHAFT & HUB

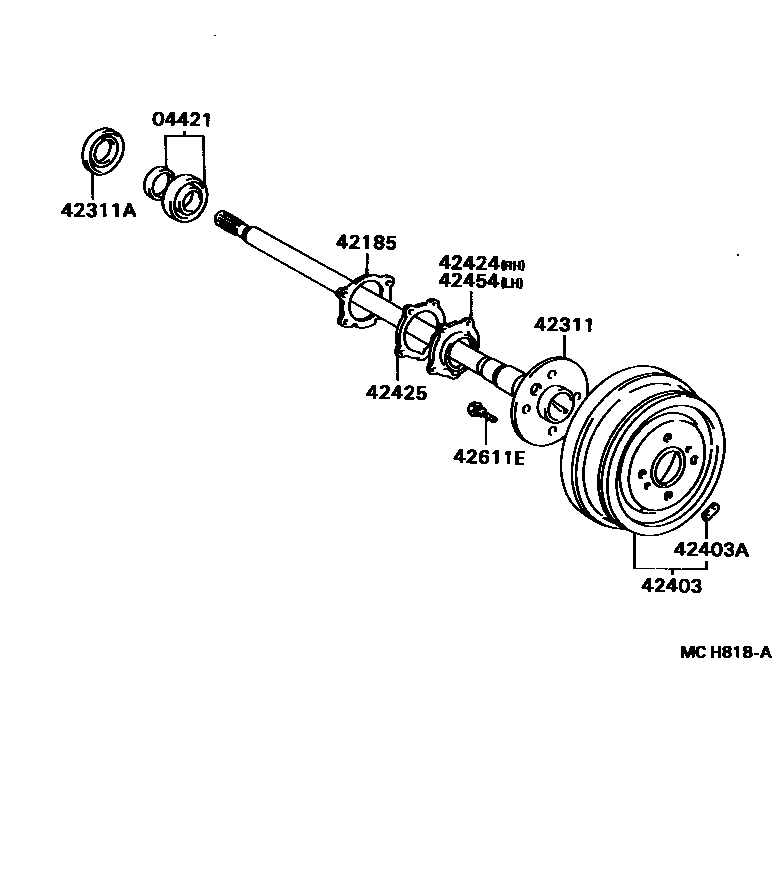

Parts diagram

04421BEARING KIT, REAR AXLE SHAFT

42185GASKET, REAR AXLE HOUSING END

42311SHAFT, REAR AXLE

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

42403DRUM SUB-ASSY, REAR BRAKE

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

42424RETAINER, REAR AXLE BEARING, OUTER, RH

42425GASKET, REAR AXLE BEARING RETAINER

42454RETAINER, REAR AXLE BEARING, OUTER, LH

42611EBOLT, HUB (FOR REAR AXLE)

10 parts on this diagram · 1 diagram in section

REAR AXLE SHAFT & HUB for Toyota DELIBOY

This section contains 10 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota DELIBOY. Key components include: BEARING KIT, REAR AXLE SHAFT, GASKET, REAR AXLE HOUSING END, SHAFT, REAR AXLE, SEAL, OIL(FOR REAR AXLE SHAFT), DRUM SUB-ASSY, REAR BRAKE.
