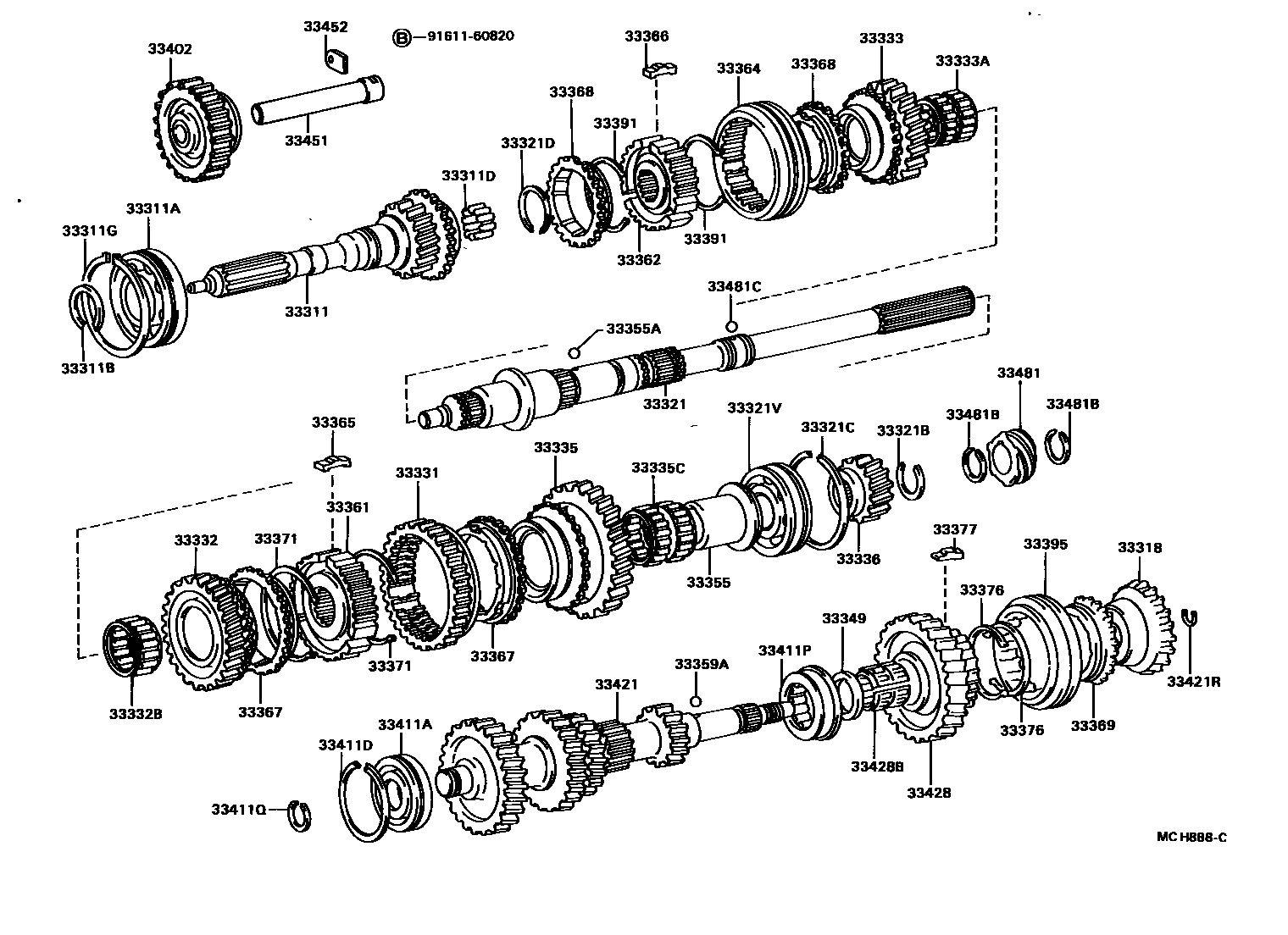

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33349WASHER, 5TH GEAR THRUST
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33421GEAR, COUNTER
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
33481CBALL, REVERSE SHIFT RESTRICT
9161160820
main91611-60820
51 parts on this diagram · 1 diagram in section
