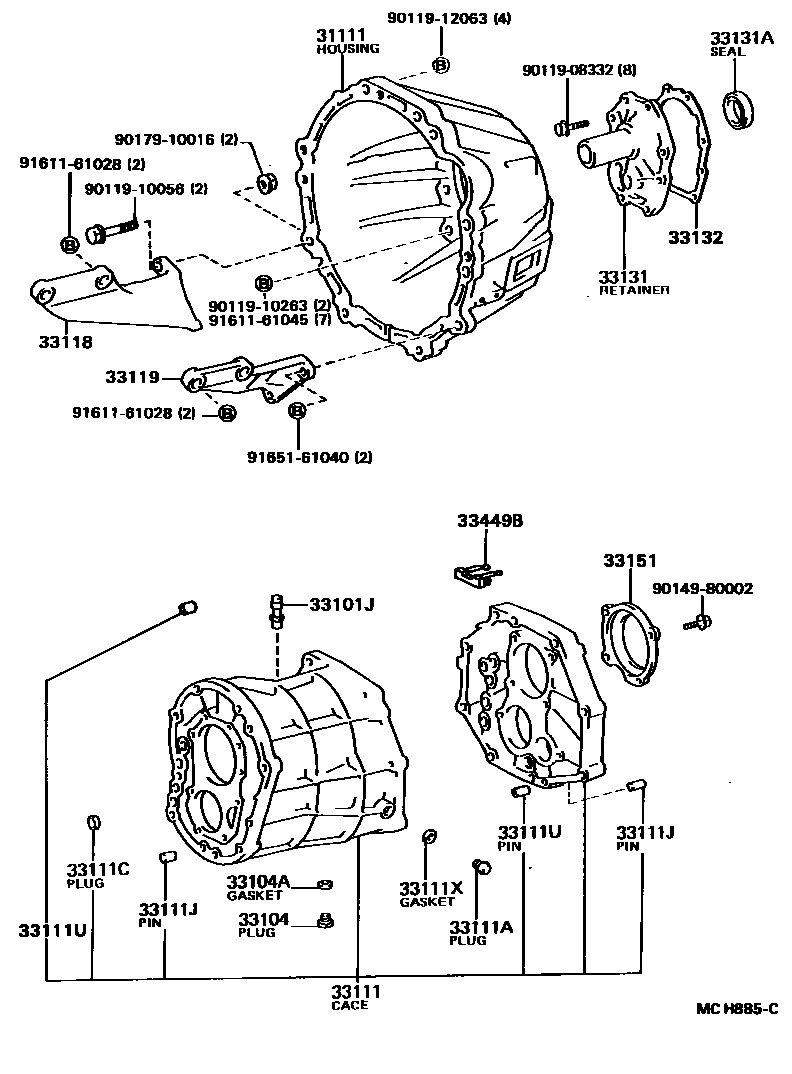

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G55 0002 1G52

31111HOUSING, CLUTCH

main31111-27030iKXC10..5H198907-199511

main31111-28030iCXC10..5H199105-199409

33101JPLUG, BREATHER

main90930-03085iCXC10,KXC10..5H198907-199511

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iCXC10,KXC10..5H198907-199503

main90341-18022iKXC10..5H199503-199506

main90341-18032iKXC10..5H199506-199511

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCXC10,KXC10..5H198907-199511

33111CASE, MANUAL TRANSMISSION

main33101-35060iCXC10,KXC10..5H198907-199511

sub33101-26060

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCXC10,KXC10..5H198907-199511

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iCXC10,KXC10..5H198907-199511

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iCXC10,KXC10..5H198907-199511

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iCXC10,KXC10..5H198907-199511

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCXC10,KXC10..5H198907-199511

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKXC10..5H198907-199511

main33118-14033iCXC10..5H199105-199409

33119PLATE, STIFFENER, LH(MTM)

main33119-12050iKXC10..5H198907-199511

main33119-14050iCXC10..5H199105-199409

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iCXC10,KXC10..5H198907-199511

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iKXC10198907-199007

sub90311-30014

main90311-30014iCXC10,KXC10..5H199007-199511

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCXC10,KXC10..5H198907-199511

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iCXC10,KXC10..5H198907-199511

33449BMAGNET, TRANSMISSION

main33449-26010iCXC10,KXC10..5H198908-199511

9011908332

main90119-08332

9011910056

main90119-10056

9011910263

main90119-10263

9011912063

main90119-12063

9014980002

main90149-80002

9017910016

main90179-10016

9161161028

main91611-61028

9161161045

main91611-61045

9165161040

main91651-61040

26 parts on this diagram · 2 diagrams in section
