TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

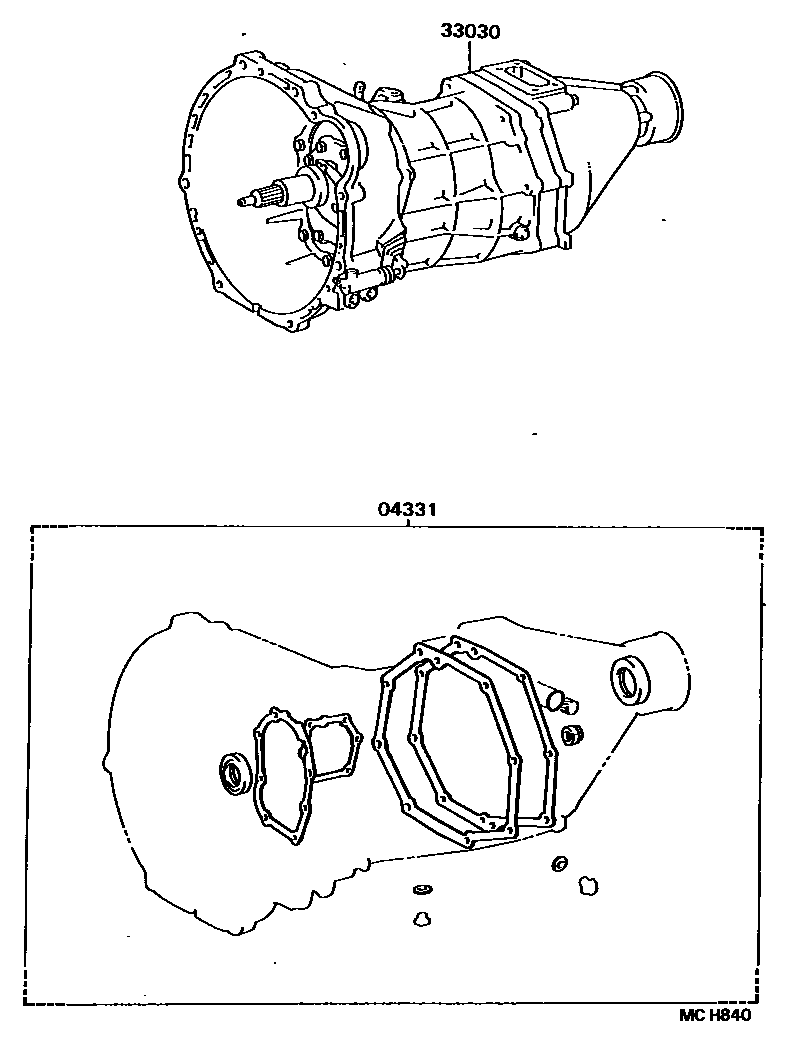

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35170i198907-199511

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-27850i198907-199005

main33030-27851i199005-199105

main33030-27852i199105-199511

main33030-2K101i199105-199409

2 parts on this diagram · 1 diagram in section
