21015HOUSING SUB-ASSY, COIL

main21015-13710i198907-199105

main21015-13730i199105-199511

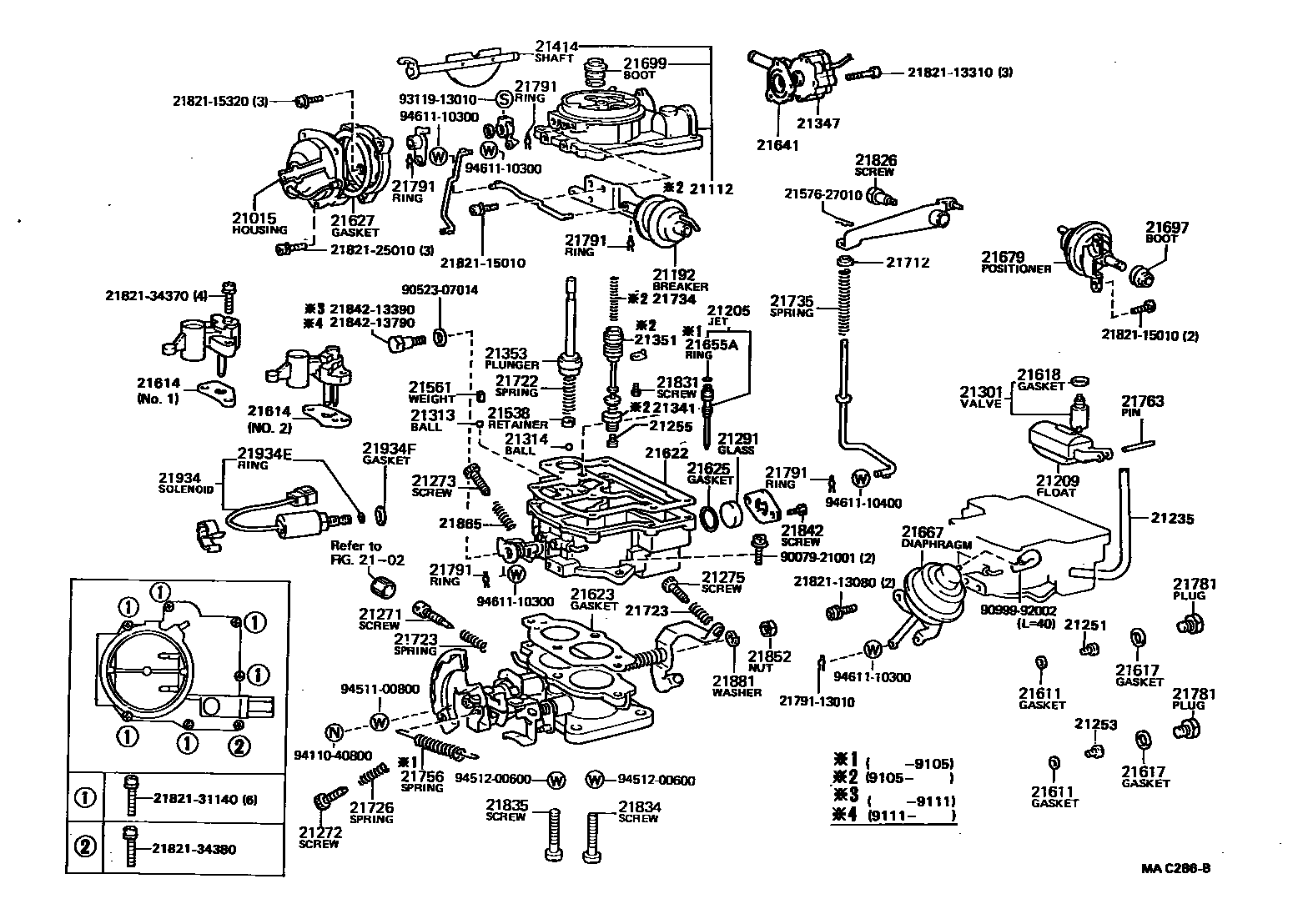

2102CARBURETOR ASSEMBLY

→ Go to FIG 21-02

21112HORN, AIR

main21112-13760i199105-199511

21192BREAKER

main21192-13710i198907-199105

main21192-13760i199105-199511

21205JET SUB-ASSY, SLOW

main21205-13710i198907-199105

main90999-44148i199105-199511

21209FLOAT SUB-ASSY

main21209-13310i198907-199511

21235PIPE OR HOSE, CONNECTING

main21235-13311i198907-199208

21251JET, 1ST MAIN

main21251-13700i199105-199511

main90999-41107i198907-199105

21253JET, 2ND MAIN

main90999-42168i198907-199105

main90999-42171i199105-199511

21255JET, POWER

main90999-43040i199302-199511

main90999-43050i199105-199302

main90999-43055i198907-199105

21271SCREW, IDLE ADJUSTING

main21271-13271i198907-199511

21272SCREW, 1ST IDLE ADJUSTING

main21814-33010i198907-199511

21273SCREW, THROTTLE ADJUSTING

main21273-13390i198907-199009

main21273-24231i199009-199511

21275SCREW, ADJUSTING

main21275-10050i198907-199511

21291GLASS, LEVEL GAGE

main21291-34320i198907-199511

21301VALVE SUB-ASSY, NEEDLE

main21301-13310i198907-199511

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i198907-199511

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-60010i198907-199511

21341VALVE, POWER

main21304-30010i199105-199511

21347VALVE, SOLENOID

main21347-13710i198907-198912

main21347-13711i198912-199511

21351PISTON, POWER

main21351-24230i199105-199511

21353PLUNGER, PUMP

main21353-13590i198907-199511

21414SHAFT, CHOKE

main21054-13391i198907-199511

21538RETAINER, BALL CHECK

main21538-31010i198907-199511

21561WEIGHT, PUMP DISCHARGE

main21561-22010i198907-199511

21611GASKET, MAIN JET

main21611-22010×2i198907-199511

21614GASKET, VENTURI

main21614-13430i198912-199105

NO.1

main21614-22010i198907-198912

NO.1

main21614-24360i198907-198912

NO.2

main21614-24580i198912-199105

NO.2

21617GASKET, MAIN PASSAGE PLUG

main21617-30010×2i198907-199511

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198907-199105

21622GASKET, AIR HORN

main21622-13430i198912-199511

main21622-24360i198907-198912

21623GASKET, BODY FLANGE

main21623-13080i198907-198912

main21623-13430i198912-199511

21625GASKET, LEVEL GAGE

main21655-60200i198907-199511

21627GASKET, COIL HOUSING

main21627-28090i198907-199511

21641GASKET(FOR THERMOSTATIC VALVE COVER)

main21641-13310i198907-198912

main21641-13311i198912-199511

21655ARING, O(FOR SLOW JET)

main21655-44101i198907-199105

21667DIAPHRAGM

main21667-13710i198907-199105

main21667-13760i199105-199511

21679POSITIONER

main21679-13290i198907-199105

main21679-13530i199105-199511

21697BOOT(FOR SLIDING ROD)

main21699-41010i198907-199511

21699BOOT(FOR PUMP PLUNGER)

main21699-28150i198907-199511

21712BUSH, SLIDING ROD

main21712-38010i198907-199511

21722SPRING, PUMP DAMPING

main21722-22010i198907-199105

21723SPRING, IDLE ADJUSTING

main21723-21030×2i198907-199511

21726SPRING, 1ST IDLE ADJUSTING

main21726-40010i198907-199511

21734SPRING, POWER PISTON

main21734-33081i199105-199511

21735SPRING, PUMP ARM

main21735-22010i199105-199511

main21735-23010i198907-199105

21756SPRING, BACK(FOR THROTTLE SHAFT)

main90507-10003i198907-199105

21763PIN, FLOAT LEVER

main21763-38010i198907-199511

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-15230×2i198907-199511

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13011×5i199208-199511

main21791-60010×5i198907-199208

21826SCREW, PUMP ARM SET

main21826-24470i199105-199511

main21826-31012i198907-199105

21831SCREW, POWER PISTON STOP

main21821-15060i198907-199511

21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

main21834-31010i198907-199511

21835SCREW, SET, NO.3(FOR CARBURETOR BODY SET)

main21835-40010i198907-199511

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-33010×2i198907-199511

21852NUT, THROTTLE LEVER SET

main21852-30010i198907-199511

21865SPRING

main21864-24230i198907-199511

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i198907-199511

21934SOLENOID, THROTTLE VALVE

main21062-13710i198907-199511

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i198907-199511

21934FGASKET

main21649-38010i198907-199511

2157627010CLIP, PUMP STRAINER

main21576-27010

2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010

2182113080SCREW, 2ND THROTTLE VALVE SET

main21821-13080

2182113310SCREW, 2ND THROTTLE VALVE SET

main21821-13310

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182115320SCREW, 2ND THROTTLE VALVE SET

main21821-15320

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182134370SCREW, 2ND THROTTLE VALVE SET

main21821-34370

2182134380SCREW, 2ND THROTTLE VALVE SET

main21821-34380

2184213390SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-13390

2184213790SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-13790

9007921001

main90079-21001

9052307014

main90523-07014

9099992002

main90999-92002

9311913010

main93119-13010

9411040800

main94110-40800

9451100800

main94511-00800

9451200600

main94512-00600

9461110300

main94611-10300

9461110400

main94611-10400
