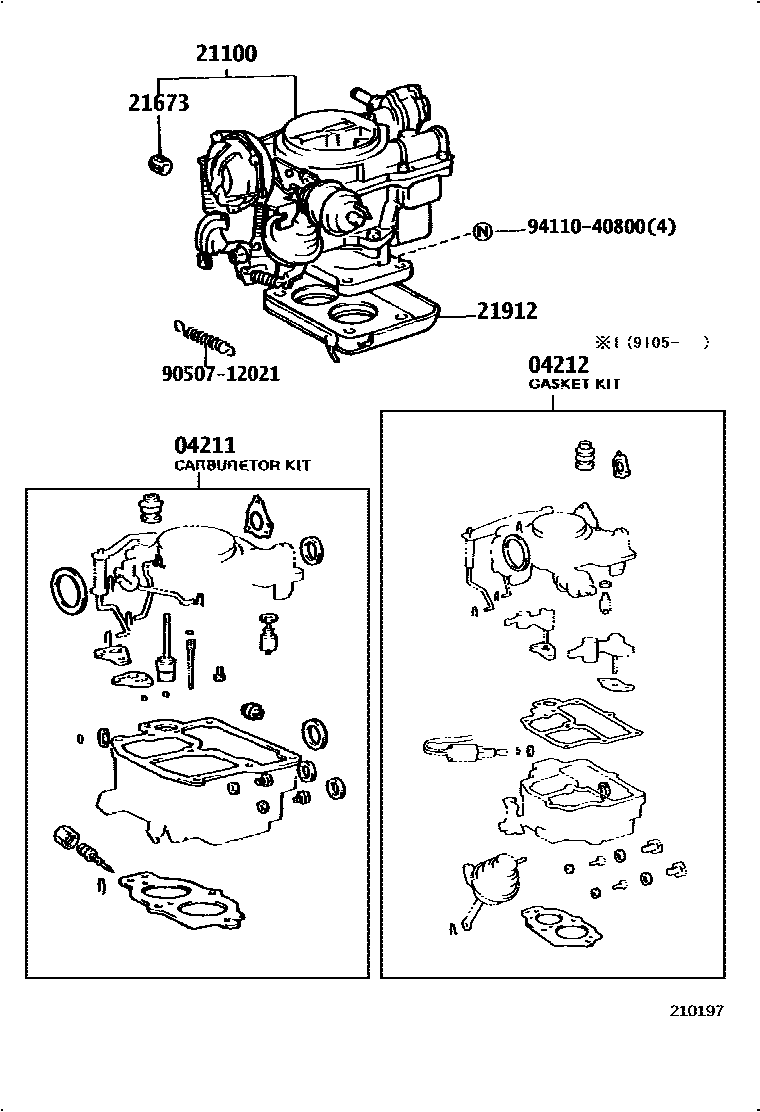

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-13480i5K..KXC10198907-199001

main04211-13481i5K..KXC10199001-199105

main04211-13500i5K..KXC10199105-199310

main04211-13501i5K..KXC10199310-199511

04212GASKET KIT, CARBURETOR

main04212-13041i5K..KXC10198907-199001

main04212-13042i5K..KXC10199001-199511

21100CARBURETOR ASSY

main21100-13710i5K..KXC10198907-199105

main21100-13760i5K..KXC10199105-199511

21673CAP, IDLE LIMIT

main21673-13280i5K..KXC10198907-199511

21912INSULATOR, CARBURETOR HEAT

main21912-13031i5K..KXC10198907-198912

main21912-13070i5K..KXC10198912-199511

9050712021

main90507-12021

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
