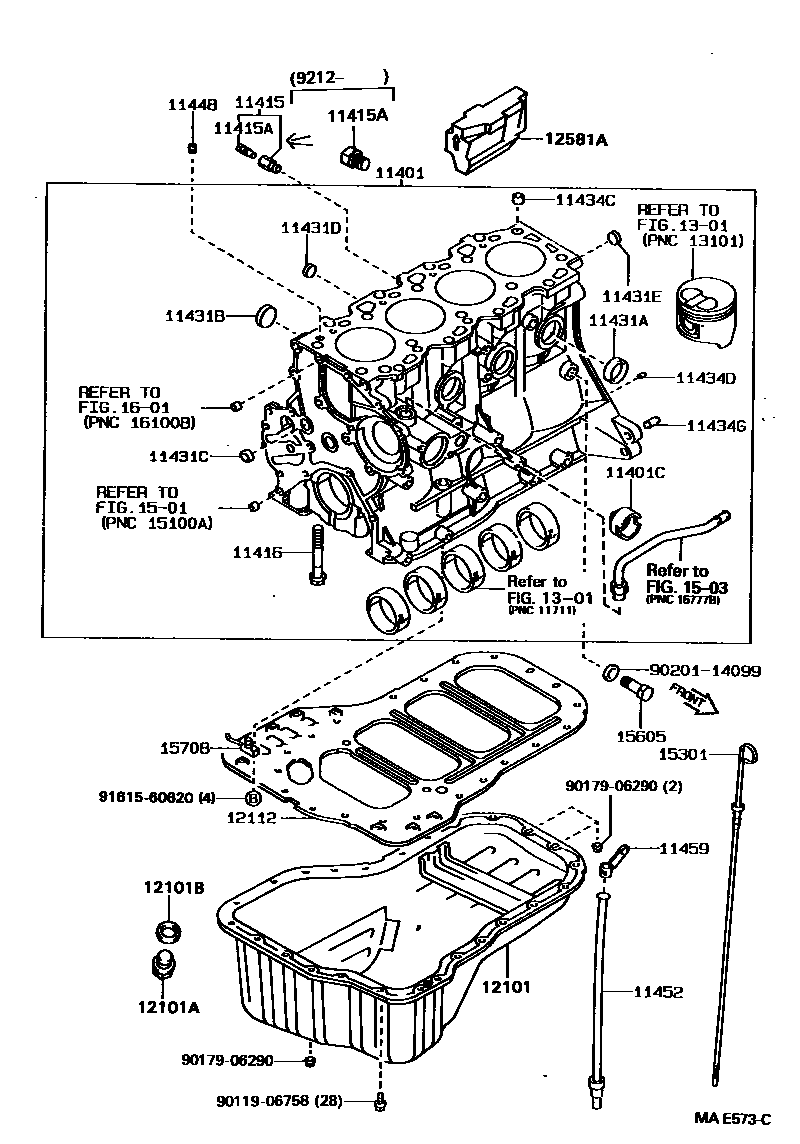

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19335i5K..KXC10198907-199504

sub11401-19336

sub11011-11010

sub90910-09091

main11401-19336i5K..KXC10199504-199511

main11401-69425i2C..CXC10199105-199209

sub11401-69427

sub11115-64122

main11401-69426i2C..CXC10199209-199409

sub11401-69428

sub11115-64122

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i2C..CXC10199105-199204

sub16353-64011

main16353-64011i2C..CXC10199204-199409

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2C..CXC10199105-199212

sub90345-52003

main90910-09091i5K..KXC10199504-199511

main96431-53828i5K..KXC10198907-199504

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i2C..CXC10199212-199409

main90910-09087i2C..CXC10199105-199511

main96432-23814i5K..KXC10198907-199504

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019i5K..KXC10198907-199511

main90910-02061i2C..CXC10199105-199409

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i5K..KXC10198907-199511

main96411-43500i2C..CXC10199105-199409

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2C..CXC10199105-199409

main96411-44500i5K..KXC10198907-199511

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2C..CXC10199105-199409

main96411-43500i5K..KXC10198907-199511

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2C..CXC10199105-199409

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i2C..CXC10199105-199409

main96412-01800i5K..KXC10198907-199511

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i5K..KXC10198907-199511

main90253-14001i2C..CXC10199105-199208

main90253-14002i2C..CXC10199208-199409

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i2C..CXC10199105-199409

main90250-08120i5K..KXC10198907-199511

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2C..CXC10199105-199409

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2C..CXC10199105-199209

main11448-64020i2C..CXC10199209-199409

11452GUIDE, OIL LEVEL GAGE

main11452-13010i5K..KXC10198907-199511

main11452-64020i2C..CXC10199105-199408

main11452-64021i2C..CXC10199408-199409

11459SUPPORT, OIL LEVEL GAGE GUIDE

main90929-01026i2C..CXC10199105-199409

12101PAN SUB-ASSY, OIL

main12101-19017i5K..KXC10198907-199012

sub12101-19018

main12101-19018i5K..KXC10199012-199511

main12101-64080i2C..CXC10199105-199309

sub12101-64081

main12101-64081i2C..CXC10199309-199408

sub12101-64082

main12101-64082i2C..CXC10199408-199409

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2C..CXC10198907-199511

main90341-12026i2C..CXC10199208-199409

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i5K..KXC10198907-199008

sub90430-12028

main90430-12027i2C..CXC10199008-199312

sub90430-12031

main90430-12028i2C..CXC10199105-199108

sub90430-12031

main90430-12031i2C..CXC10199304-199511

12112PAN, OIL NO.2

main12112-64050i2C..CXC10199105-199306

sub12112-64051

main12112-64051i2C..CXC10199306-199409

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-64010i2C..CXC10..4HC199105-199409

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13011i5K..KXC10198907-199511

main15301-64050i2C..CXC10199105-199201

main15301-64051i2C..CXC10199201-199408

main15301-64052i2C..CXC10199408-199409

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2C..CXC10199105-199409

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021i2C..CXC10199105-199409

sub15790-64030

sub90110-06034

1601

9011906758

main90119-06758

9017906290

main90179-06290

9020114099

main90201-14099

9161560620

main91615-60620

32 parts on this diagram · 2 diagrams in section
