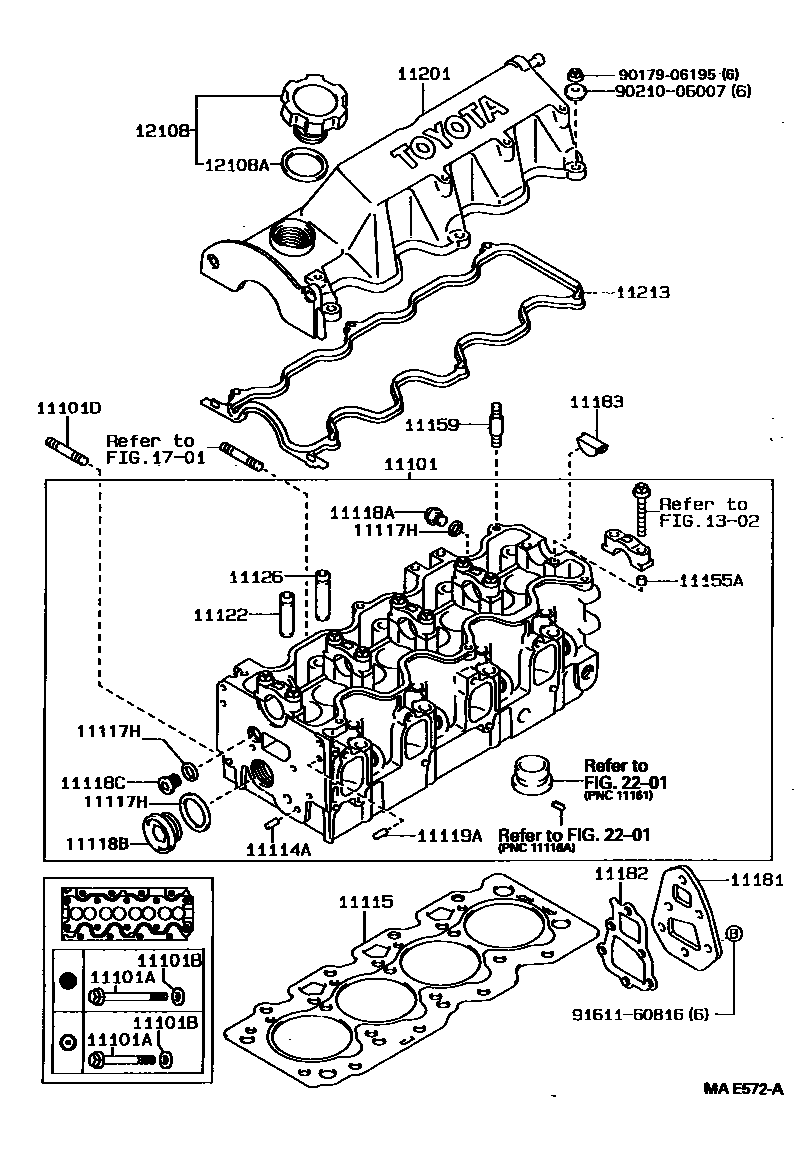

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
L/HEAD FR RIGHT
HEAD FR RIGHT
*11-1.25PX130-50
*11-1.25PX152-50
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101DBOLT, STUD(FOR WATER OUTLET)
11114APIN, STRAIGHT
11117HGASKET(FOR WATER HOLE)
11118APLUG, STRAIGHT, NO.1
11118BPLUG, STRAIGHT, NO.2
11118CPLUG, STRAIGHT, NO.3
11119APIN, STRAIGHT, NO.1
11122BUSH, INTAKE VALVE GUIDE
11155APIN, RING W/HEAD
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
1302
1701
2201
9017906195
main90179-06195
9021006007
main90210-06007
9161160816
main91611-60816
28 parts on this diagram · 2 diagrams in section
