ENGINE OVERHAUL GASKET KIT

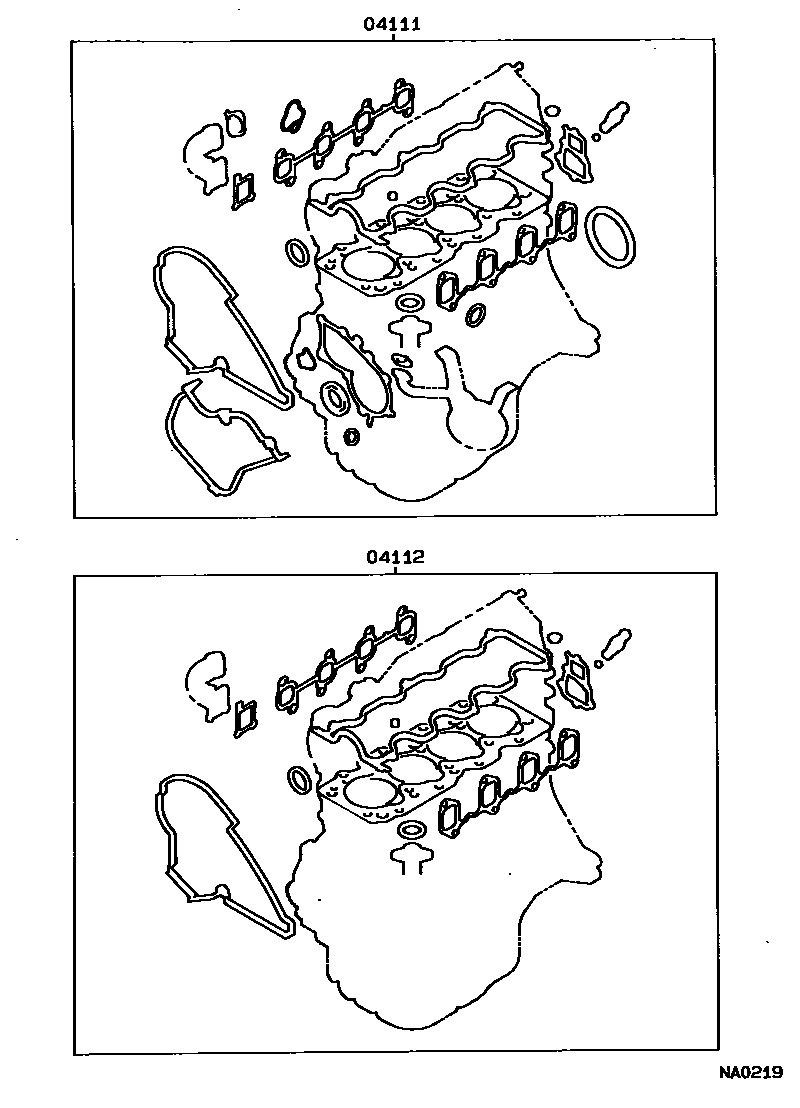

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-13042i5K..KXC10198907-198912

main04111-13043i5K..KXC10198912-199008

main04111-13044i5K..KXC10199008-199508

main04111-13045i5K..KXC10199508-199511

main04111-64163i2C..CXC10199105-199409

04112GASKET KIT, ENGINE VALVE GRIND

main04112-13020i5K..KXC10198907-198912

main04112-13021i5K..KXC10198912-199008

main04112-13022i5K..KXC10199008-199508

main04112-13023i5K..KXC10199508-199511

main04112-64105i2C..CXC10199105-199409

2 parts on this diagram · 2 diagrams in section
