HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1�������������(�����) 0002 1�������������(���) 0003 1������� ������ & ����� 0004 1����� ������ 0005 1������� 1/2 0006 1������� 2/2 0007 1������� 2/2 0008 1������� 2/2 0009 1��� 0011 1���

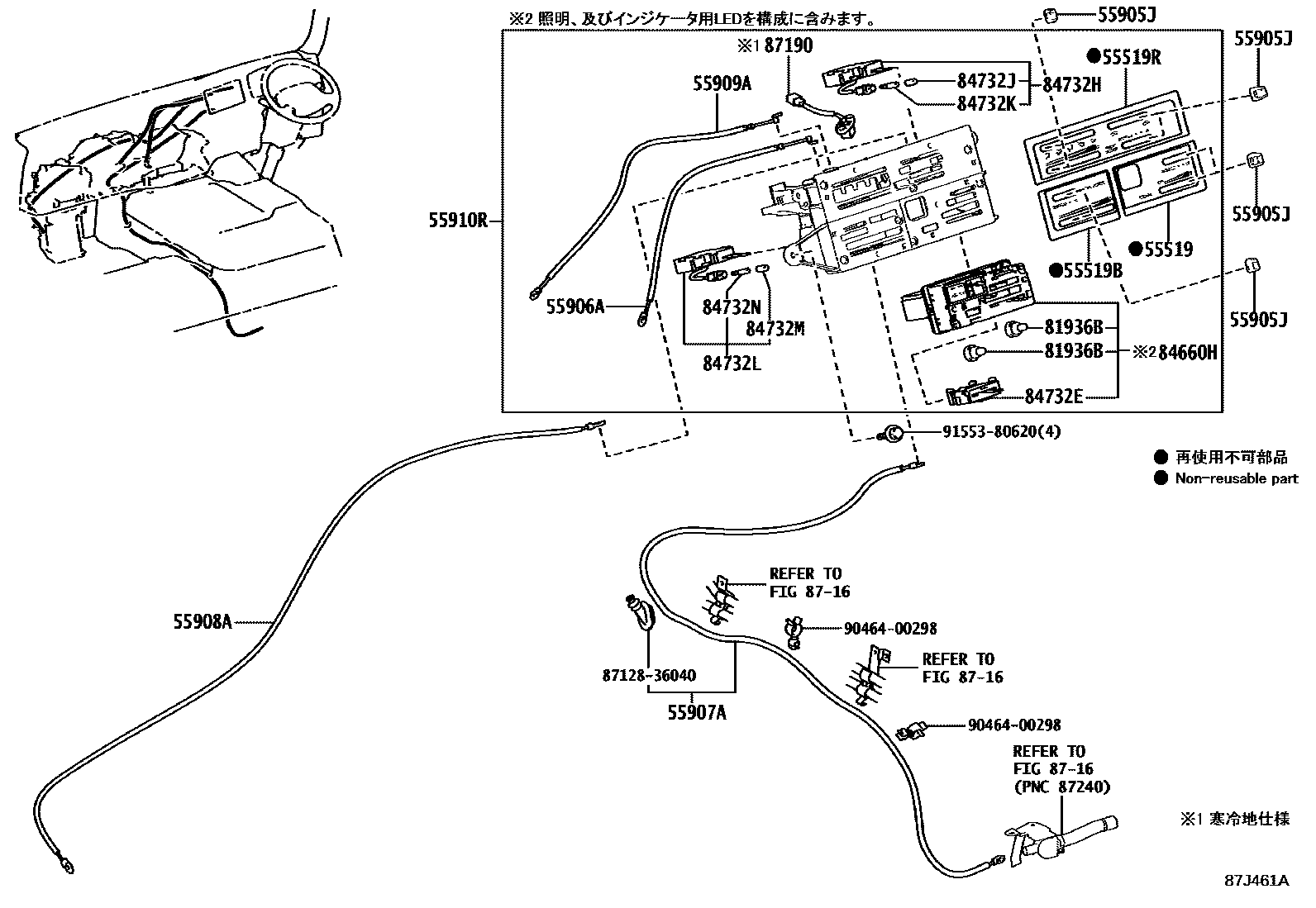

55519PLATE, HEATER CONTROL NAME

main55519-36030iXZB60..09S;XZB60..5F..(LX,S);XZB70..(29S,49S)..(LX,S)202201-202312

55519BPLATE, HEATER CONTROL NAME

main55519-36080iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55519RPLATE, HEATER CONTROL NAME

main55519-36070iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55905JKNOB SUB-ASSY, CONTROL

main55905-36040×8iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36070iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36120iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-36080iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55907-36070iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

55910RCONTROL ASSY, HEATER

main55910-36260supersedes 55910-36250iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

81936BBULB ASSY, COOLER CONTROL

main81936-32010×2iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

84660HSWITCH ASSY, COOLER CONTROL

main84660-36050iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

main84660-36051iXZB60..09S;XZB60..5F..(LX,S);XZB70..(29S,49S)..(LX,S)202208-202312

84732ESWITCH, COOLER BLOWER

main84732-35010iGDB60,70,80..LX,S202201-202412

84732HSWITCH, HEATER BLOWER

main84732-36060iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

84732JCAP, HEATER BLOWER SWITCH BULB

main84998-10050iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

84732KBULB, HEATER BLOWER SWITCH

main90981-11014iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

84732LSWITCH, REAR HEATER BLOWER

main84732-36080iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

84732MCAP, REAR HEATER BLOWER SWITCH BULB

main84998-10050iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

84732NBULB, REAR HEATER BLOWER SWITCH

main90981-11014iXZB60..09S;XZB60,70..5F..(LX,S);XZB70..(29S,49S)..6FC..(LX,S)201701-202201

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

87190SWITCH ASSY, TEMPERATURE CONTROL

main87190-36010iXZB70..(09S,24S)..6FC..LX;XZB60,80..(13S,25S,39S)..6FC..(LX,S)201701

8712836040GROMMET, HEATER

main87128-36040

9046400298

main90464-00298

9155380620

main91553-80620

23 parts on this diagram · 10 diagrams in section
