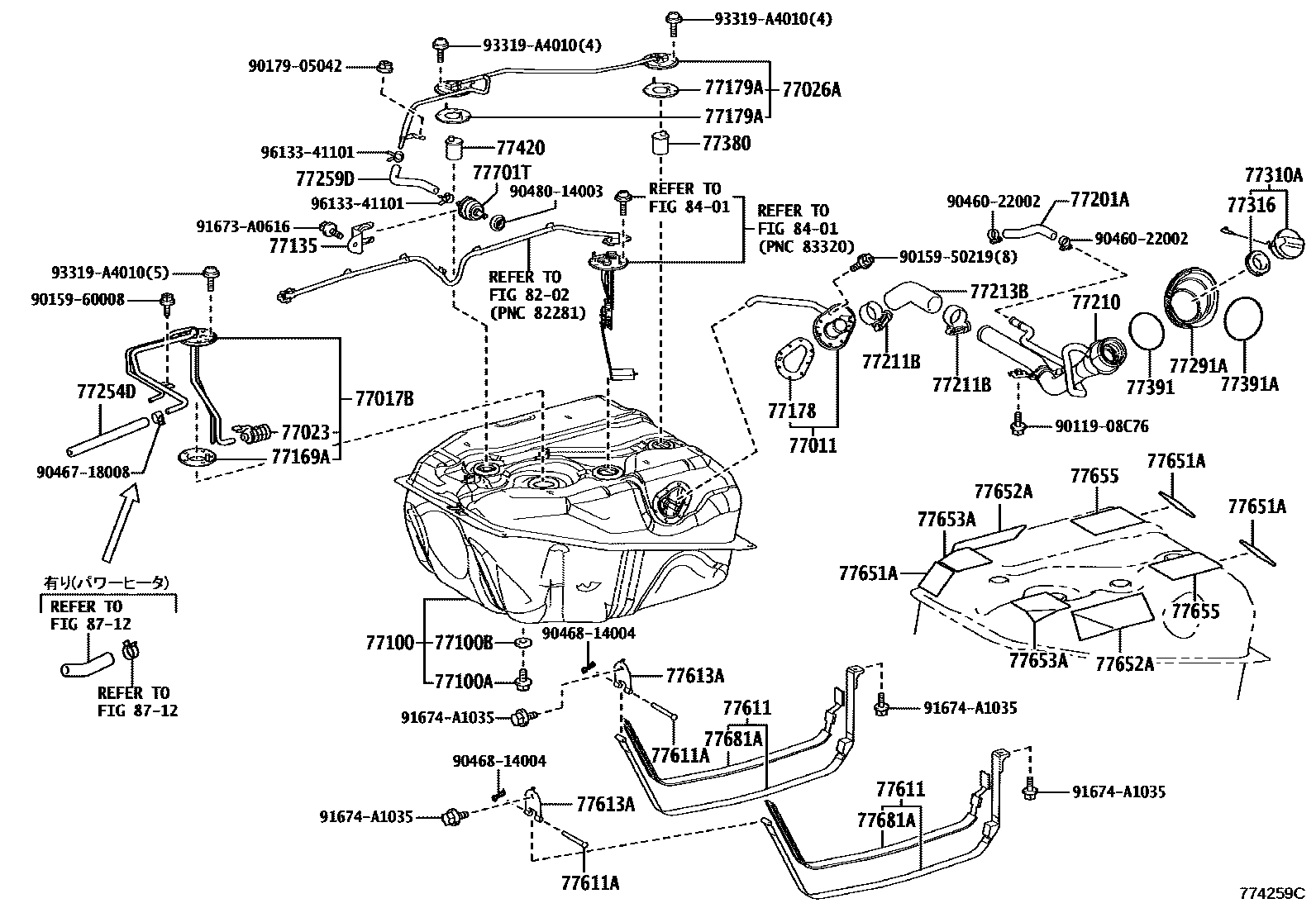

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77017BTUBE SUB-ASSY, FUEL TANK VENT
main77017-36440iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
main77023-60010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
main77026-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77100TANK ASSY, FUEL
main77001-3B262iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77100APLUG(FOR FUEL TANK)
main90105-12116iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77100BGASKET(FOR FUEL TANK)
main90430-12245iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77135BRACKET, CHECK VALVE
main77135-36041iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202412
77169AGASKET, FUEL SUCTION TUBE SET
main77169-14020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77178GASKET, FUEL TANK FILLER PIPE, LOWER
main77178-34010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77179AGASKET, FUEL TANK BREATHER TUBE
main77179-26011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
main95313-13017iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77210PIPE ASSY, FUEL TANK FILLER
main77210-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77211BCLAMP (FOR FUEL FILLER PIPE)
main90460-46005iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77213BHOSE, FUEL TANK TO FILLER PIPE
main77213-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77254DHOSE, FUEL
main95338-12018iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77259DHOSE, FUEL, NO.1
main77259-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77291ASHIELD, FUEL TANK FILLER PIPE
main77291-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77310ACAP ASSY, FUEL TANK
main77300-12030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77316GASKET, FUEL TANK CAP
main77316-52040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
main77391-28020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77391ARING, FUEL INLET BOX
main77391-52040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77420VALVE ASSY, FUEL CUT OFF, NO.2
main77420-26010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77611BAND, FUEL TANK
main77601-36120iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77611APIN (FOR FUEL TANK BAND)
main90240-08047iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77613ABRACKET, FUEL TANK BAND, NO.1
main77613-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77651ACUSHION, FUEL TANK, NO.1
main77651-36130iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77652ACUSHION, FUEL TANK, NO.2
main77652-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77653ACUSHION, FUEL TANK, NO.3
main77653-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77655CUSHION, FUEL TANK, NO.3
main77653-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77681ASEAT, FUEL TANK BAND
main77681-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
main90917-10020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
8202
8401
8712
9011908C76
main90119-08C76
9015950219
main90159-50219
9015960008
main90159-60008
9017905042
main90179-05042
9046022002
main90460-22002
9046718008
main90467-18008
9046814004
main90468-14004
9048014003
main90480-14003
91673A0616
main91673-A0616
91674A1035
main91674-A1035
93319A4010
main93319-A4010
9613341101
main96133-41101
48 parts on this diagram · 8 diagrams in section
