BODY STRIPE

5554FRONT PANEL & WINDSHIELD GLASS

→ Go to FIG 55-54

75655TAPE, CENTER PILLAR

main75916-36010iGDB60,70,80202201-202412

75937STRIPE, ROOF, REAR

main75937-36020iGDB70..GX202401-202412

main75937-36030supersedes 75937-36020iXZB60..6FC..GX201701

75941BSTRIPE, CENTER PILLAR, NO.1

main75941-36010-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75941-36010-K0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75941-36060-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75941-36060-K0iXZB60,70..(24S,25S)..6FC..LX201701

75942STRIPE, CENTER PILLAR, NO.2

main75942-36010-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75942-36010-K0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75942-36050-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75942-36050-K0iXZB60,70..(24S,25S)..6FC..LX201701

75973FSTRIPE, FRONT SIDE PANEL, RH

main75973-36030-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75973-36030-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75974ESTRIPE, FRONT SIDE PANEL, LH

main75974-36070-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75974-36070-K0iXZB60,70..(24S,25S)..6FC..LX201701

75974FSTRIPE, FRONT SIDE PANEL, LH

main75974-36030-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75974-36030-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75974-36060-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75974-36060-K0iXZB60,70..(24S,25S)..6FC..LX201701

75982BSTRIPE, FENDER, LH

main75982-36010-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75982-36010-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75982DSTRIPE, FENDER, LH

main75991-36050-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36050-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75984ASTRIPE, SLIDE DOOR

main75984-36040-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75984-36040-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75985STRIPE, FRONT DOOR, RH

main75985-36050-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75985-36050-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75985ASTRIPE, SIDE PANEL, RH

main75985-36070-E0iXZB70..(24S,29S)..6FC..LX; XZB70..(24S,29S)..LX; XZB70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR; XZB70..LX201701-202201

main75985-36070-K0iXZB70..(24S,29S)..6FC..LX; XZB70..(24S,29S)..LX; XZB70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR; XZB70..LX201701-202201

main75985-36060-E0iXZB60..09S;XZB60..5F..LX; XZB60..25S..6FC..LX; XZB60..25S..LX; XZB60..5F..GX; XZB60..LX201701-202201

main75985-36060-K0iXZB60..09S;XZB60..5F..LX; XZB60..25S..6FC..LX; XZB60..25S..LX; XZB60..5F..GX; XZB60..LX201701-202201

75986ASTRIPE, SIDE PANEL, LH

main75986-36060-E0iXZB70..(09S,24S)..6FC..LX; XZB70..24S..6FC..GX201701

main75986-36060-K0iXZB70..(09S,24S)..6FC..LX; XZB70..24S..6FC..GX201701

main75986-36050-E0iXZB60..09S;XZB60..5F..LX; XZB60..25S..6FC..LX; XZB60..25S..LX; XZB60..5F..GX; XZB60..LX201701-202201

main75986-36050-K0iXZB60..09S;XZB60..5F..LX; XZB60..25S..6FC..LX; XZB60..25S..LX; XZB60..5F..GX; XZB60..LX201701-202201

main75986-36130-E0supersedes 75986-36050-E0iXZB60..25S..6FC..LX201701

main75986-36130-K0supersedes 75986-36050-K0iXZB60..25S..6FC..LX201701

main75986-36140-E0iXZB70..24S..6FC..LX201701

main75986-36140-K0iXZB70..24S..6FC..LX201701

75986JSTRIPE, SIDE PANEL, LH

main75986-36120-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75986-36120-K0iXZB60,70..(24S,25S)..6FC..LX201701

75988DSTRIPE, REAR DOOR OUTSIDE, LH

main75999-36010-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75999-36010-K0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75999-36040-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75999-36040-K0iXZB60,70..(24S,25S)..6FC..LX201701

75988FSTRIPE, REAR DOOR, OUTSIDE LH

main75998-36020-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75998-36020-K0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75998-36040-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75998-36040-K0iXZB60,70..(24S,25S)..6FC..LX201701

75991STRIPE, QUARTER, RH NO.1

main75991-36020-E0×2iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36020-K0×2iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75991ASTRIPE, QUARTER, RH

main75991-36030-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36030-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75991BSTRIPE, QUARTER, RH

main75991-36230-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201908-202201

main75991-36230-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201908-202201

75991FSTRIPE, QUARTER LOWER RH

main75998-36010-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75998-36010-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75992STRIPE, QUARTER, LH NO.1

main75991-36060-E0×2iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36060-K0×2iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75992ASTRIPE, QUARTER, LH

main75991-36090-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36090-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75992CSTRIPE, QUARTER LH

main75991-36080-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36080-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36160-E0supersedes 75991-36080-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75991-36160-K0supersedes 75991-36080-K0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75991-36200-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75991-36200-K0iXZB60,70..(24S,25S)..6FC..LX201701

75992DSTRIPE, QUARTER, FRONT LH

main75991-36070-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36070-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75991-36150-E0supersedes 75991-36070-E0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75991-36150-K0supersedes 75991-36070-K0iXZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..29S..6FC..LX201701-202201

main75991-36190-E0iXZB60,70..(24S,25S)..6FC..LX201701

main75991-36190-K0iXZB60,70..(24S,25S)..6FC..LX201701

75993STRIPE, QUARTER, RH NO.2

main75993-36040-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75993-36040-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75993ASTRIPE, QUARTER, REAR RH

main75993-36030-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75993-36030-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75994BSTRIP, QUARTER, REAR LH

main75994-36030-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75994-36030-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

75996FSTRIPE, QUARTER, UPR RH

main75996-36050-E0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

main75996-36050-K0iXZB60,70..(24S,25S,29S)..6FC..LX; XZB60,70..(24S,25S,29S)..LX; XZB60,70..LX; XZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX; XZB70..HDCR;XZB60,70..5F..(EX,GX);XZB70..29S..6FC..GX..DCR201701-202201

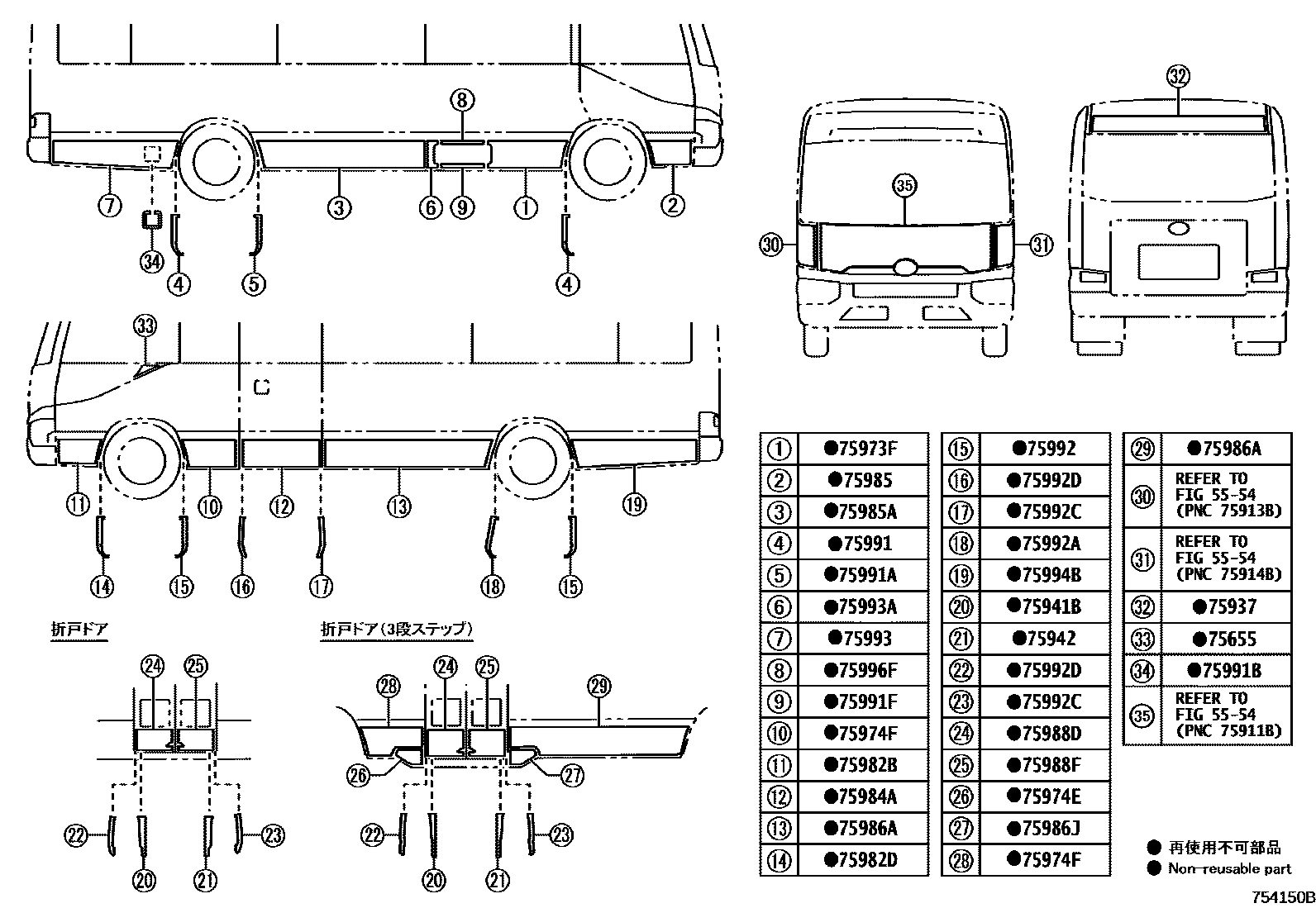

29 parts on this diagram · 1 diagram in section
