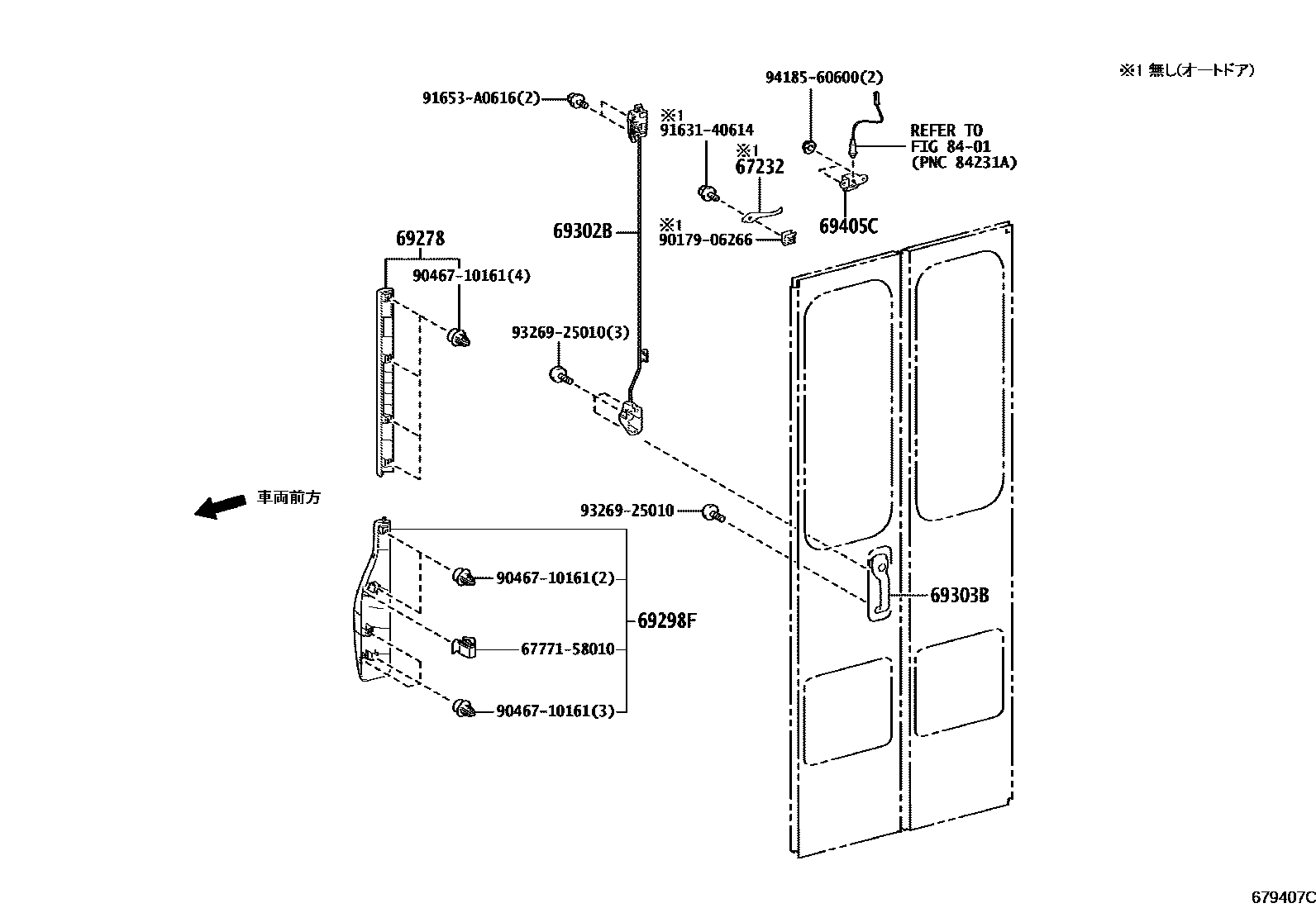

CENTER DOOR LOCK & HINGE

0001 1������� 0002 1��������� 0003 1���������, ��(������) 0004 1���������, ��(������)

67232STOPPER, CENTER DOOR OPEN

main67255-36011iXZB60..25S..6FC..LX;XZB70..(09S,24S)..6FC..LX201701-202312

main67255-36011iXZB60,70..(24S,25S)..6FC..LX201701-202412

69278BEZEL, DOOR INSIDE HANDLE, NO.1 LH

main69278-36030-B0iXZB60,70..(24S,25S,29S)..LX201701-201902

LT.GRAY,TRIM1#

main69278-36030-B0iXZB60,70..S201701-201902

main69278-36030-B0iXZB60,70..S201701-201902

main69278-36030-B0iXZB60,70..S201701-201902

main69278-36031-B0iGDB60,70..(24S,25S)..LX201903-202412

main69278-36031-B0iXZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX201903-202412

LT.GRAY,TRIM1#

main69278-36031-B0iXZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX201903-202412

main69278-36031-B0iXZB60..09S;XZB60,70..5F..LX;XZB70..29S..6FC..LX201903-202412

69298FBEZEL, DOOR INSIDE HANDLE, NO.2 LH

main69298-36050-B0iXZB60,70..S201701-201902

LT.GRAY,TRIM1#

main69298-36050-B0iXZB60,70..S201701-201902

main69298-36050-B0iXZB60,70..S201701-201902

main69298-36051-B0iXZB70..S;XZB60..5F..S201903-202412

LT.GRAY,TRIM1#

main69298-36051-B0iXZB70..S;XZB60..5F..S201903-202412

main69298-36051-B0iXZB70..S;XZB60..5F..S201903-202312

69302BLOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE

main69302-36040-B1iXZB70..S;XZB60..5F..S201701-202412

LT.GRAY,TRIM1#

main69302-36040-B1iXZB70..S;XZB60..5F..S201701-202412

main69302-36040-B1iXZB70..S;XZB60..5F..S201701-202312

69303BHANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE

main69303-36010iXZB60,70..5F..LX;XZB70..29S..6FC..LX201701-202412

main69303-36010iXZB70..S;XZB60..5F..S201701-202412

main69303-36010iXZB70..S;XZB60..5F..S201701-202412

69405CSTOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK

main69405-90B00iXZB60..6FC..S201701-202301

main69405-90B00iXZB70..S;XZB60..5F..S201701-202301

main69405-90B00iXZB70..S;XZB60..5F..S201701-202301

main69405-V4020iXZB70..S;XZB60..5F..S202302-202412

main69405-V4020iXZB60..09S;XZB60..5F..LX;XZB70..29S..LX202302-202412

main69405-V4020iXZB60..09S;XZB60..5F..LX;XZB70..29S..LX202302-202412

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777158010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58010

9017906266

main90179-06266

9046710161

main90467-10161

9163140614

main91631-40614

91653A0616

main91653-A0616

9326925010

main93269-25010

9418560600

main94185-60600

14 parts on this diagram · 4 diagrams in section
