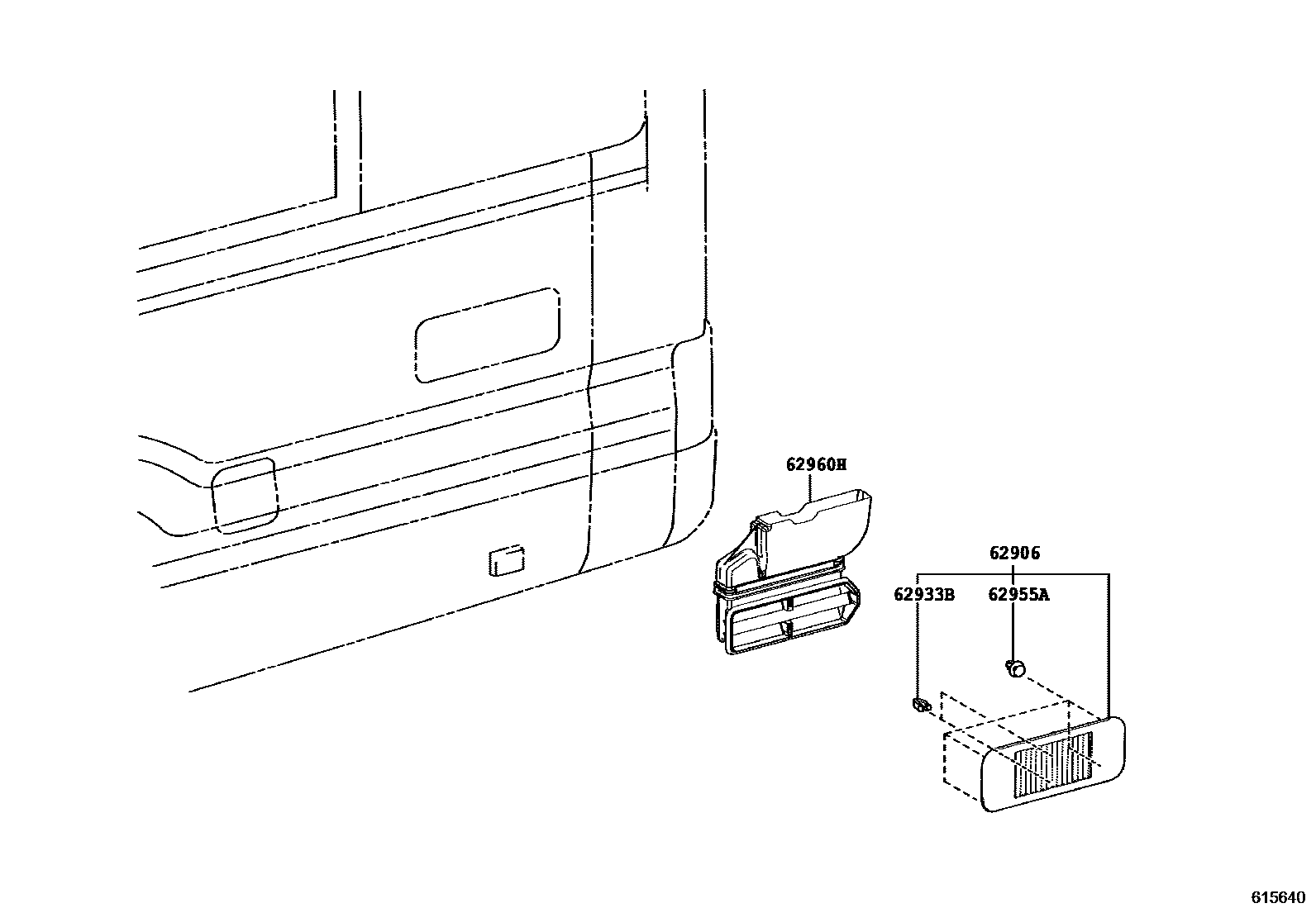

REAR VENTILATOR & ROOF VENTILATOR

62906LOUVER, QUATER VENTILATION, LH

main62906-36040-A0iXZB60,80..(13S,39S)..6FC..DCR201701-202412

WHITE,058

main62906-36040-A0iXZB60..5F..S;XZB70,80..(13S,49S)..(GX,S)201701-202412

WHITE,058 ,2DT ,2JP

main62906-36040-B0iGDB60,70..24S,25S201701-202412

SILVER M.M.,1E7

main62906-36040-E0iXZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR201701-202412

BEIGE ME.,4R4

main62906-36040-F0iXZB70..S;XZB60..5F..S201701-202412

YELLOW,541

62933BCLIP, QUARTER VENT DUCT

main90467-05171iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

62955ARETAINER, QUARTER VENT LOUVER

main62955-50010iGDB60,70,80201701-202412

62960HDUCT ASSY, QUARTER VENT, NO.2 LH

main62960-36040iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR201701-202412

4 parts on this diagram · 1 diagram in section
