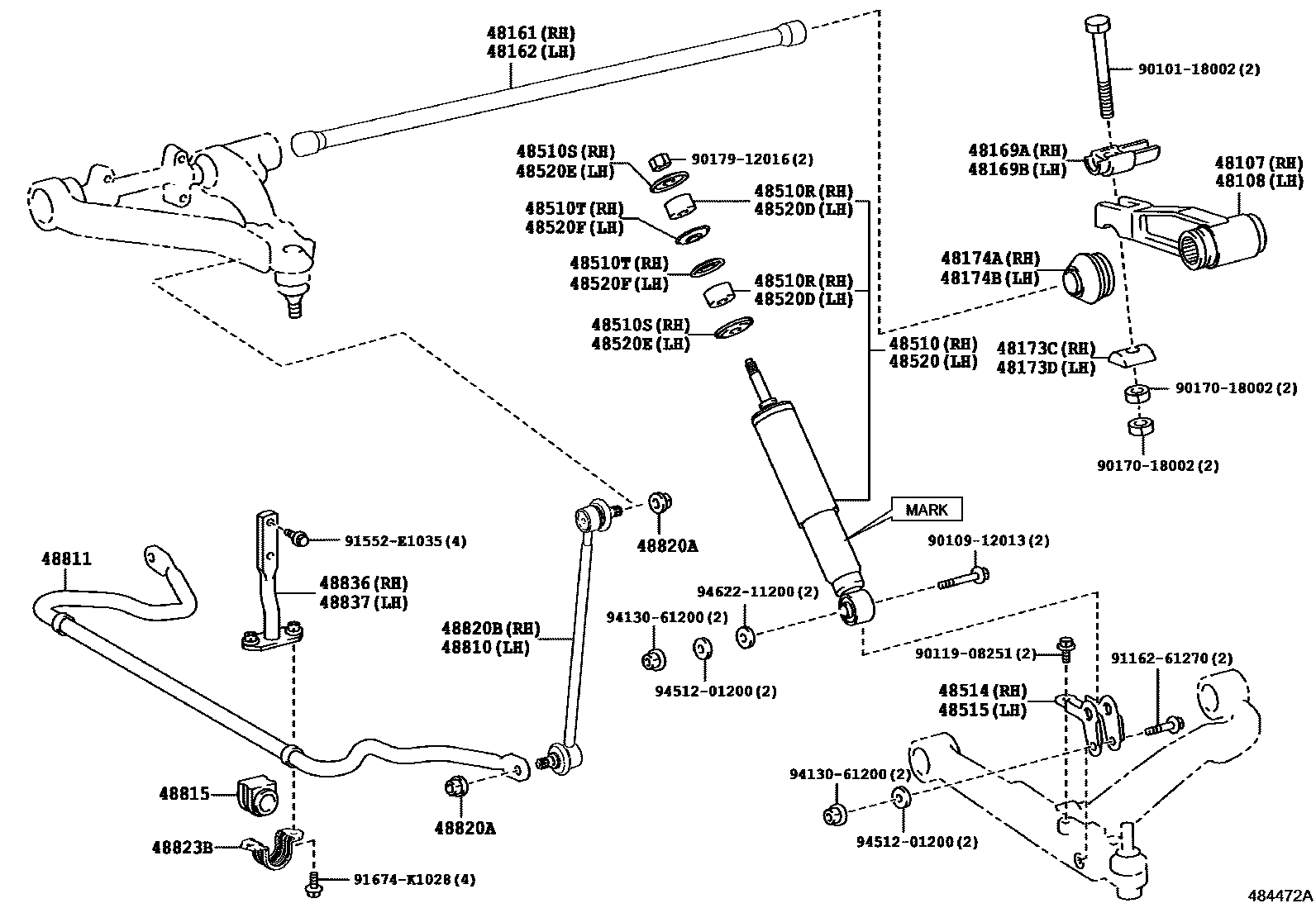

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
main48107-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48108ARM SUB-ASSY, ANCHOR, LH
main48108-36030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48161SPRING, TORSION BAR, RH
48162SPRING, TORSION BAR, LH
48169ASWIVEL, ANCHOR ARM, RH
main48169-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48169BSWIVEL, ANCHOR ARM, LH
main48169-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48173CSEAT, ANCHOR ARM ADJUSTER, RH
main48173-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48173DSEAT, ANCHOR ARM ADJUSTER, LH
main48173-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48174ACOVER, TORSION BAR DUST, RH
main48174-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48174BCOVER, TORSION BAR DUST, LH
main48174-36010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48510ABSORBER ASSY, SHOCK, FRONT RH
main48511-80176iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48510RCUSHION, FRONT SHOCK ABSORBER, NO.1 RH
main90948-01004iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48510SRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 RH
main90948-02009iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48510TRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 RH
main90948-02054iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
main48514-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
main48514-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48520ABSORBER ASSY, SHOCK, FRONT LH
main48511-80176iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48520DCUSHION, FRONT SHOCK ABSORBER, NO.1 LH
main90948-01004iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48520ERETAINER, FRONT SHOCK ABSORBER CUSHION, NO.1 LH
main90948-02009iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48520FRETAINER, FRONT SHOCK ABSORBER CUSHION, NO.2 LH
main90948-02054iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48810LINK ASSY, FRONT STABILIZER, LH
main48820-36022iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48811BAR, STABILIZER, FRONT
main48811-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-36060iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-12151iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-36022iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48823BCOVER, FRONT STABILIZER BRACKET
main48823-36080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48836BRACKET, FRONT STABILIZER END, RH
main48836-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
48837BRACKET, FRONT STABILIZER END, LH
main48837-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412
9010118002
main90101-18002
9010912013
main90109-12013
9011908251
main90119-08251
9017018002
main90170-18002
9017912016
main90179-12016
9116261270
main91162-61270
91552E1035
main91552-E1035
91674K1028
main91674-K1028
9413061200
main94130-61200
9451201200
main94512-01200
9462211200
main94622-11200
39 parts on this diagram · 1 diagram in section
