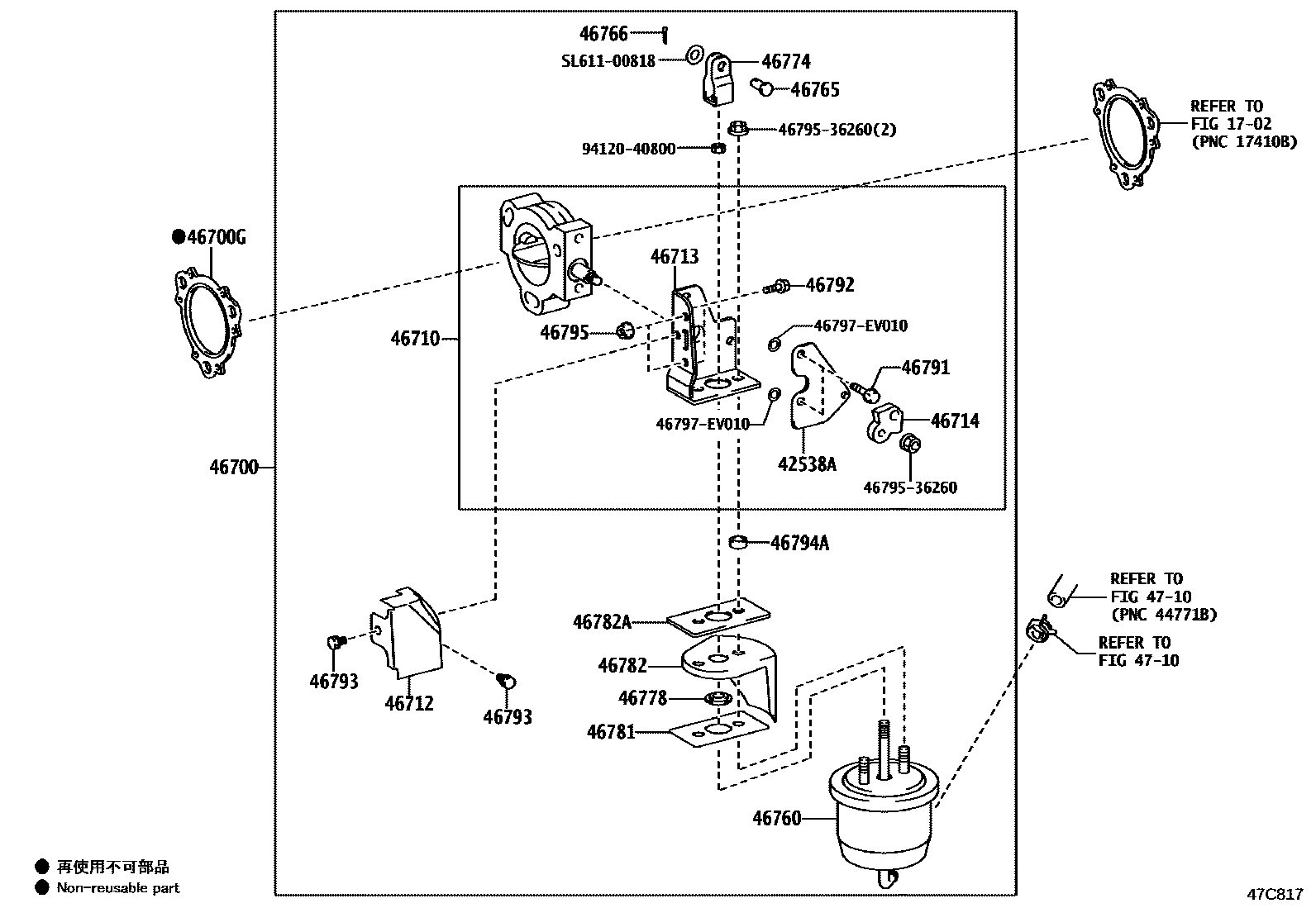

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

1702EXHAUST PIPE

→ Go to FIG 17-02

42538ASTAY, CONTROL SHAFT BRACKET

main42538-EV010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46700RETARDER ASSY, EXHAUST

main46700-E0372iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46700GGASKET(FOR EXHAUST BRAKE)

main17451-E0110iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46710VALVE ASSY, EXHAUST BRAKE

main46710-EV030iXZB60,70,80201701

46712COVER, EXHAUST VALVE LINK

main46712-EV030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46713BRACKET, EXHAUST VALVE

main46713-EV020iXZB60,70,80201701

46714LEVER, EXHAUST VALVE

main46714-EV010iXZB60,70,80201701

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-EV060iXZB60,70,80201701

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iXZB60,70,80201701

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iXZB60,70,80201701

46774CLEVIS, EXHAUST BRAKE ROD

main46774-EV010iXZB60,70,80201701

46778BEARING, VACUUM CYLINDER

main46778-EV010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iXZB60,70,80201701

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-EV030iXZB60,70,80201701

46782APROTECTOR, EXHAUST RETARDER

main46782-EV020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46791BOLT, EXHAUST VALVE COVER

main46791-25041×2iXZB60,70,80201701

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iXZB60,70,80201701

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iXZB60,70,80201701

46794ACOLLAR, ACTUATOR ROD GUIDE

mainSZ01015003×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iXZB60,70,80201701

4710EXHAUST BRAKE TUBE & CLAMP

→ Go to FIG 47-10

4679536260NUT, EXHAUST VALVE BRACKET

main46795-36260

46797EV010

main46797-EV010

9412040800

main94120-40800

SL61100818

mainSL611-00818

26 parts on this diagram · 1 diagram in section
