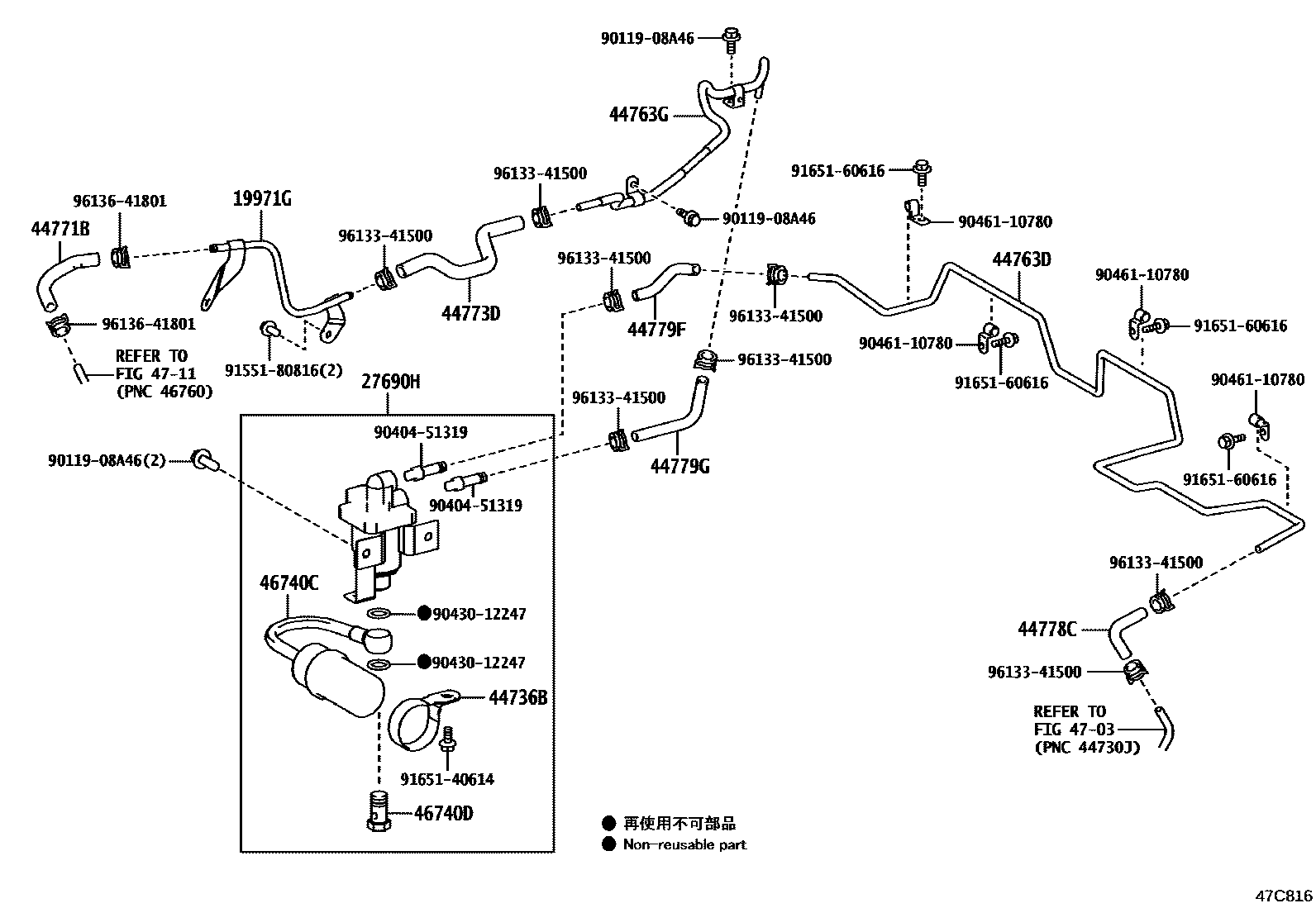

EXHAUST BRAKE TUBE & CLAMP

19971GPIPE, VACUUM

main19971-78300iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

27690HSOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)

main27690-56160iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

44736BBRACKET, AIR CLEANER

main44736-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44763DTUBE, HOSE TO HOSE, NO.1

main44763-36043iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44763GTUBE, HOSE TO HOSE, NO.2

main44763-36091iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44771BHOSE, VACUUM TUBE CONNECTOR

main44771-36331iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36190iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44778CHOSE, CONNECTOR TO VACUUM RESERVOIR

main44775-36100iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44779-36121iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44779GHOSE, CONNECTOR TUBE TO SOLENOID, NO.2

main44779-36110iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46740CCLEANER ASSY, EXHAUST RETARDER AIR

main46740-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

46740DBOLT, UNION(FOR EXHAUST RETARDER AIR CLEANER ASSY)

main90401-12097iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4711EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

→ Go to FIG 47-11

9011908A46

main90119-08A46

9040451319

main90404-51319

9043012247

main90430-12247

9046110780

main90461-10780

9155180816

main91551-80816

9165140614

main91651-40614

9165160616

main91651-60616

9613341500

main96133-41500

9613641801

main96136-41801

23 parts on this diagram · 1 diagram in section
