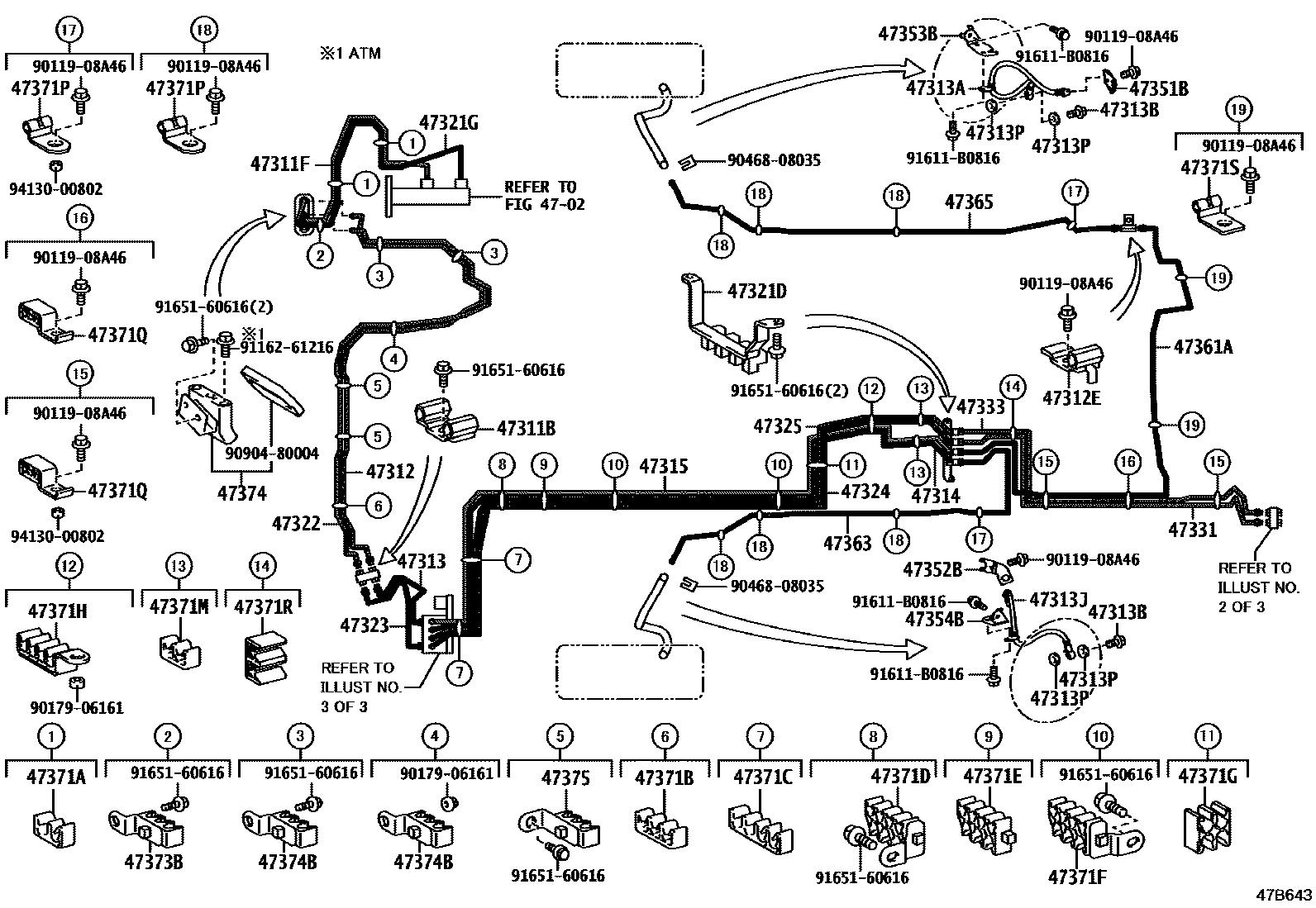

BRAKE TUBE & CLAMP

0001 1�������������� 0002 1�������������� 0003 1�������������� 0004 1�������������� 0005 1������������ 0006 1������������ 0007 1������������

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-12068iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-36610iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

47312TUBE, FRONT BRAKE, NO.2

main47312-36360iXZB60,70,80201701-202101

main47312-V4010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR202101

main47312-V4040iGDB60,70,80202201-202412

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10311iXZB60,70201701-201908

47313TUBE, FRONT BRAKE, NO.3

main47313-36420iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H77iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10023×2iGDB60,70,80202201-202412

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H77iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iGDB60,70,80202409-202412

main90430-10074×4iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47314TUBE, FRONT BRAKE, NO.4

main47314-36420iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main47314-V4030iGDB60,70,80202201-202412

47315TUBE, FRONT BRAKE, NO.5

main47315-36300iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main47315-V4030iGDB60,70,80202201-202412

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10310iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-36430iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47322TUBE, REAR BRAKE, NO.2

main47322-36520iXZB60,70,80201701-202101

main47322-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202201

main47322-V4070iGDB60,70,80202201-202412

47323TUBE, REAR BRAKE, NO.3

main47323-36110iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47324TUBE, REAR BRAKE, NO.4

main47324-36390iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main47324-V4030iGDB60,70,80202201-202412

47325TUBE, REAR BRAKE, NO.5

main47325-36710iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main47325-V4050iGDB60,70,80202201-202412

47331TUBE, REAR BRAKE, NO.10

main47331-36310iXZB60,70201701-201908

main47331-36330iXZB60,70,80201908-202101

main47331-V4010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR202101

47333TUBE, REAR BRAKE, NO.12

main47333-36140iXZB60,70201701-201908

main47333-36190iXZB60,70,80201908-202101

main47333-V4010iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR202101

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-36211iGDB60,70,80202201-202412

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-36201iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-36230iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main47355-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-36260iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-36150iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47361ATUBE, FRONT BRAKE, NO.10

main47361-36120iXZB60,70201701-201908

47363TUBE, FRONT BRAKE, NO.12

main47363-36110iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47365TUBE, FRONT BRAKE, NO.14

main47365-36120iXZB60,70201701-201908

main47365-36130iXZB60,70,80201908-202101

main47365-V4010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC202101-202201

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00920×2iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01E53iXZB60,70,80201701-202101

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01540×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01540×2iGDB60,70,80202201-202412

main90949-04071iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E52iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47371FCLAMP, BRAKE TUBE, NO.10

main90949-04072×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47371GCLAMP, BRAKE TUBE, NO.11

main90464-00876iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47371HCLAMP, BRAKE TUBE, NO.12

main90949-04073iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47371MCLAMP, BRAKE TUBE, NO.13

main90464-00903×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47371PCLAMP, BRAKE TUBE, NO.14

main90461-06112×8iXZB60,70,80201701-202101

47371QCLAMP, BRAKE TUBE, NO.15

main90949-01536×3iXZB60,70201701-201908

47371RCLAMP, BRAKE TUBE, NO.16

main90480-01620iXZB60,70201701-201908

47371SCLAMP, BRAKE TUBE, NO.17

main90461-08639×2iXZB60,70,80201701-202101

47373BCLAMP, BRAKE TUBE, NO.3

main90949-04066iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47374CONNECTOR, TUBE

main47307-36120iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47374BCLAMP, BRAKE TUBE, NO.4

main90949-04066×3iXZB60,70,80201701-202101

47375CLAMP, BRAKE TUBE, NO.5

main90949-04067×2iXZB60,70,80201701-202101

9011908A46

main90119-08A46

9017906161

main90179-06161

9046808035

main90468-08035

9090480004

main90904-80004

9116261216

main91162-61216

91611B0816

main91611-B0816

9165160616

main91651-60616

9413000802

main94130-00802

53 parts on this diagram · 7 diagrams in section
