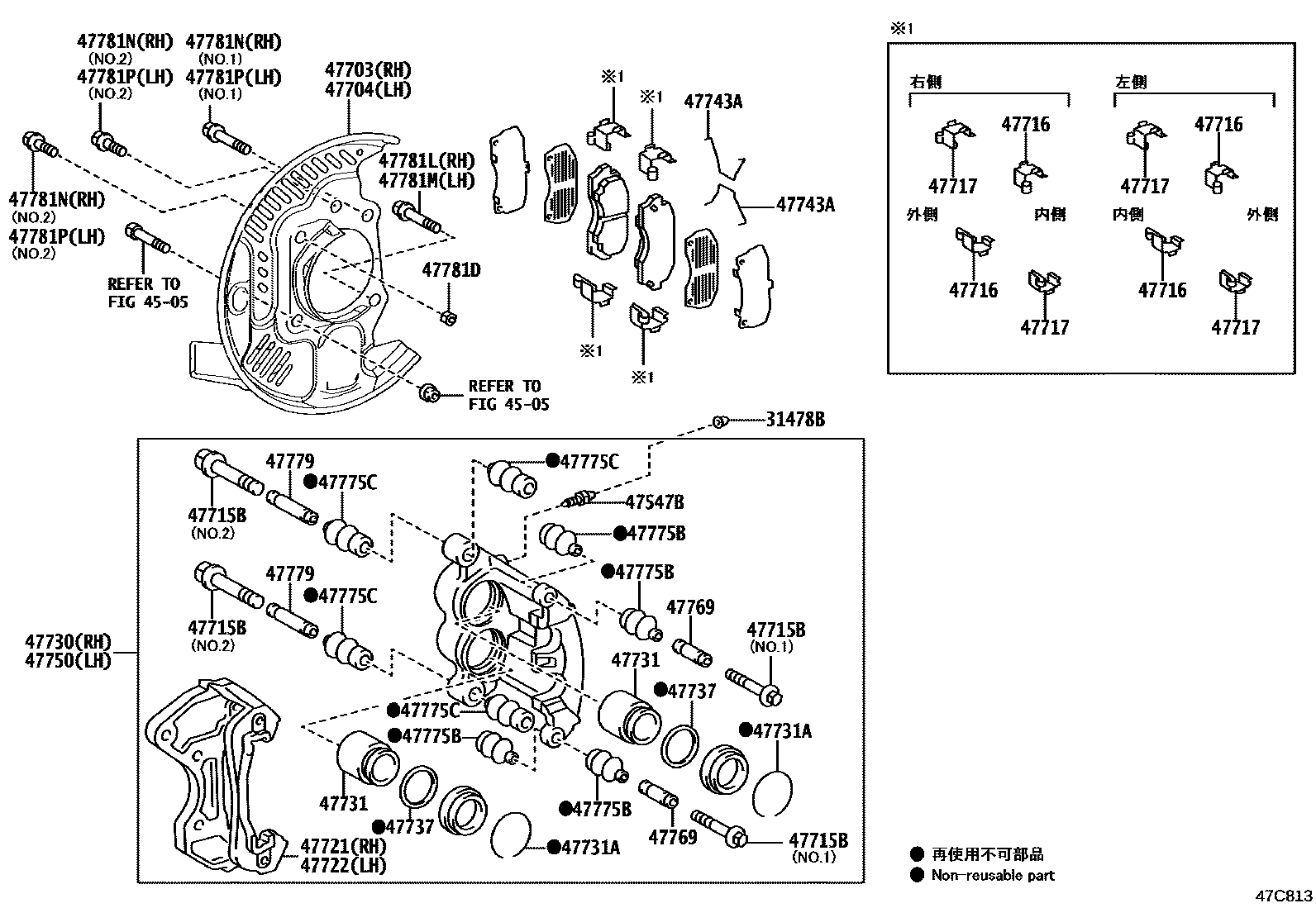

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36090iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main47703-36100iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36090iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

main47704-36100iGDB60,70,80202201-202412

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-08992×4iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main90119-12256×4iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47731PISTON, FRONT DISC BRAKE

main47731-36020×4iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-32010×4iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-36040iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

47781DNUT(FOR DUST COVER SETTING)

main94130-01602×2iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

47781LBOLT(FOR STEERING KNUCKLE ARM TO DUST COVER RH)

main90105-16044iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47781MBOLT(FOR STEERING KNUCKLE ARM TO DUST COVER LH)

main90105-16044iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

47781NBOLT(FOR STEERING KNUCKLE TO DUST COVER RH)

main90105-16044iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

main90105-16045×2iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

47781PBOLT(FOR STEERING KNUCKLE TO DUST COVER LH)

main90105-16044iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

main90105-16045×2iGDB60,70,80202201-202412

25 parts on this diagram · 2 diagrams in section
