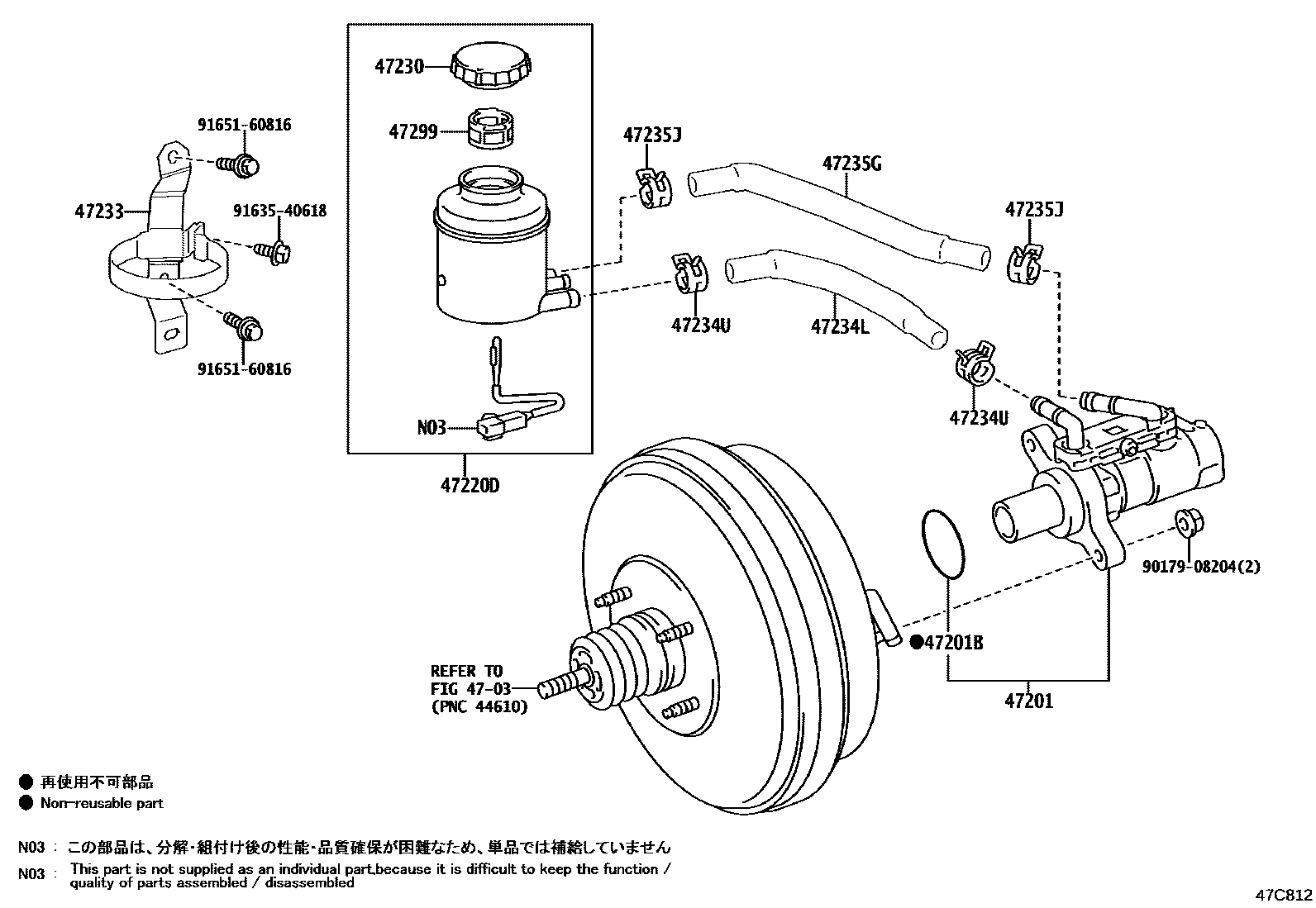

Toyota 811110 — BRAKE MASTER CYLINDER
4703BRAKE BOOSTER & VACUUM TUBE
47201BRING, O(FOR BRAKE MASTER CYLINDER)
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47233BRACKET, RESERVOIR
47234LHOSE, RESERVOIR, NO.1
47234UCLIP(FOR RESERVOIR HOSE NO.1)
47235GHOSE, RESERVOIR, NO.2
47235JCLIP(FOR RESERVOIR HOSE NO.2)
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9017908204
91631B0618
9165160816
14 parts on this diagram · 1 diagram in section
BRAKE MASTER CYLINDER for Toyota 811110
This section contains 14 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota 811110. Key components include: BRAKE BOOSTER & VACUUM TUBE, CYLINDER SUB-ASSY, BRAKE MASTER, RING, O(FOR BRAKE MASTER CYLINDER), RESERVOIR ASSY, BRAKE MASTER CYLINDER, CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER.
