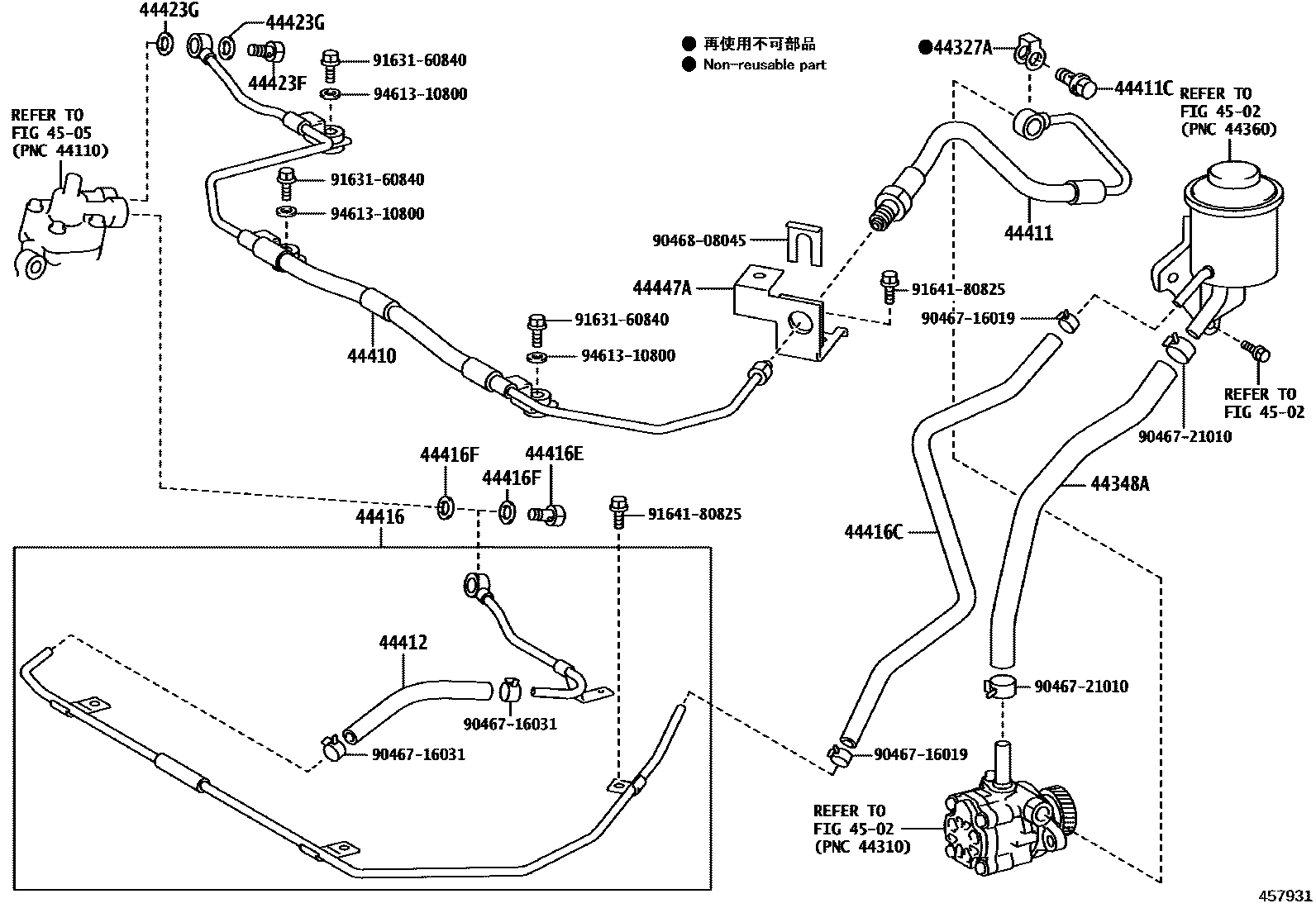

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36380iXZB60,70201701-201908

main44348-36400iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201908-202201

main44348-V4010iGDB60,70,80202201-202412

44410TUBE ASSY, PRESSURE FEED

main44410-36150iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44411HOSE, PRESSURE FEED

main44411-36550iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main44411-V4010iGDB60,70,80202201-202412

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44412HOSE, RETURN

main90445-18137iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36410iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main44416-V4010iGDB60,70,80202201-202412

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main44412-36080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main44412-V4010iGDB60,70,80202201-202412

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-14003iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44416FGASKET(FOR RETURN TUBE)

main90430-14014×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44423FBOLT, UNION

main90401-14003iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44423GGASKET, UNION BOLT

main90430-14014×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36200iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9046716019

main90467-16019

9046716031

main90467-16031

9046721010

main90467-21010

9046808045

main90468-08045

9163160840

main91631-60840

9164180825

main91641-80825

9461310800

main94613-10800

22 parts on this diagram · 2 diagrams in section
