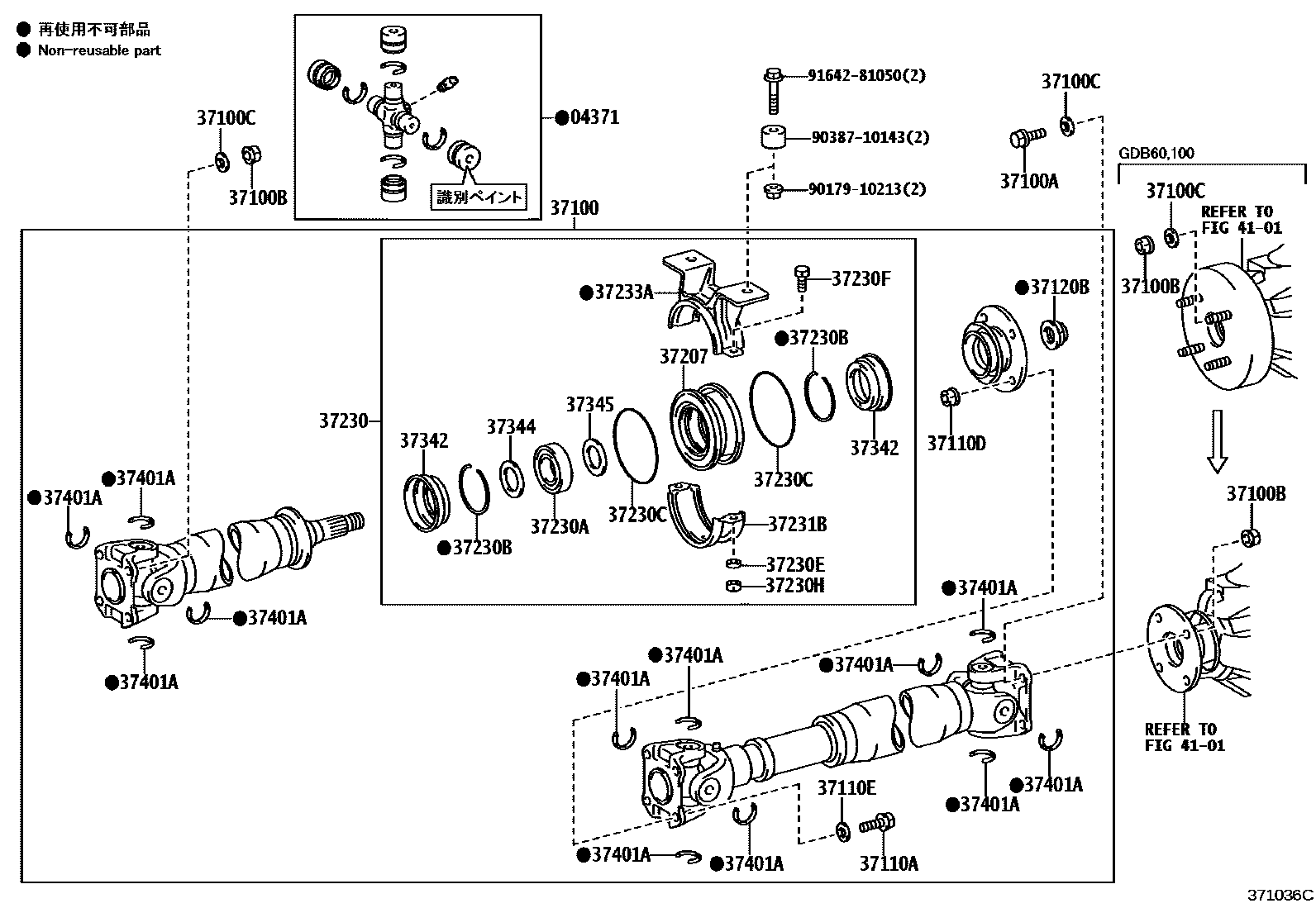

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���������� 0002 1���������� 0003 1���������������

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36050×3iXZB60..09S; XZB70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main04371-60210×4iXZB60..(25S,39S)..6FC; XZB70,80..(09S,13S,24S)..6FC..DCR201701

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-36915iXZB70..5F202201-202312

main37100-36925iXZB70..(09S,24S)..6FC..DCR201701

main37100-36929iXZB80..HDCR201908-202201

main37100-36A00iXZB60..5F202201-202312

main37100-36A40iXZB60..09S202201-202312

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-11013×4iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-11005×8iGDB60,70,80202201-202412

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90201-11013×8iGDB60,70,80202201-202412

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013×8iXZB60..(25S,39S)..6FC; XZB70,80..(09S,13S,24S)..6FC..DCR201701

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005×4iXZB60..5F;XZB60..09S; XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013×12iGDB60; GDB70,80202201-202412

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-20006×2iXZB60..(25S,39S)..6FC; XZB70,80..(09S,13S,24S)..6FC..DCR201701

37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1

main37207-35011iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-36141iGDB60,70,80202201-202412

37230ABEARING, NO.1 (FOR CENTER SUPPORT)

main90363-30029iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)

main90521-66077×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37230CRING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)

main90522-97001×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)

main94512-00800×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90101-08157×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37230HNUT, NO.1 (FOR CENTER SUPPORT BEARING)

main94130-00802×2iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701

37231BHOUSING, CENTER SUPPORT BEARING, NO.1

main37231-36021iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37233AHOUSING, CENTER SUPPORT BEARING, NO.2

main37233-36080iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-36010×2iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3

main37344-36010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4

main37345-36010iXZB70201701-202112

main37345-36020×2iXZB60..5F;XZB60..09S;XZB80..HDCR201701-202201

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29024iXZB60..09S;XZB60,70..5F;XZB70..24S..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main90520-29025iGDB60,70,80202201-202412

main90520-29026iGDB60,70,80202201-202412

main90520-29027iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main90520-29039×4iXZB80..HDCR201908-202201

main90520-29040iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main90520-29041iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main90520-29042iXZB60..(25S,39S)..6FC;XZB70..(09S,24S)..6FC..DCR201701

main90520-29043iGDB60,70,80202201-202412

main90520-29044×4iXZB80..HDCR201908-202201

main90520-29045iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

main90520-29046iGDB60,70,80202201-202412

main90520-29047iGDB60,70,80202201-202412

main90520-29048×4iXZB80..DCR201908

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

9017910213

main90179-10213

9038710143

main90387-10143

9164281050

main91642-81050

27 parts on this diagram · 3 diagrams in section
