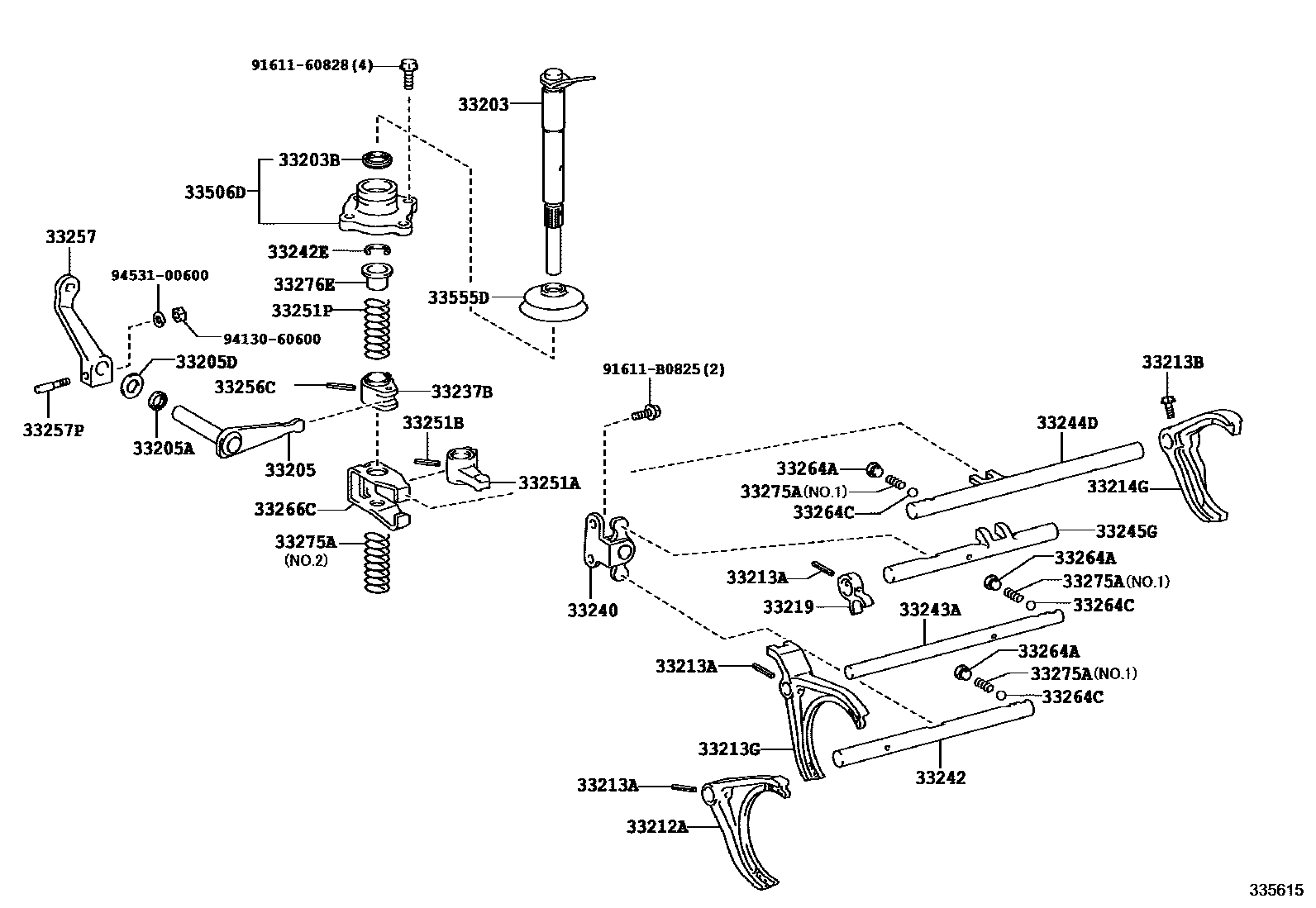

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33219PLATE, SHIFT FORK LOCK
33237BHEAD, SELECT, INNER
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33245GSHAFT, GEAR SHIFT FORK, NO.4
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
33251PSPRING (FOR SHIFT & SELECT LEVER)
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33264APLUG, INTERLOCK HOLE
33264CBALL (FOR SHIFT INTERLOCK)
33266CPLATE, SHIFT INTERLOCK
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33276ESEAT, SELECT SPRING, NO.1
33506DCOVER SUB-ASSY, CONTROL SHAFT
33555DBOOT, SHIFT LEVER
9161160828
main91611-60828
91611B0825
main91611-B0825
9413060600
main94130-60600
9453100600
main94531-00600
35 parts on this diagram · 1 diagram in section
