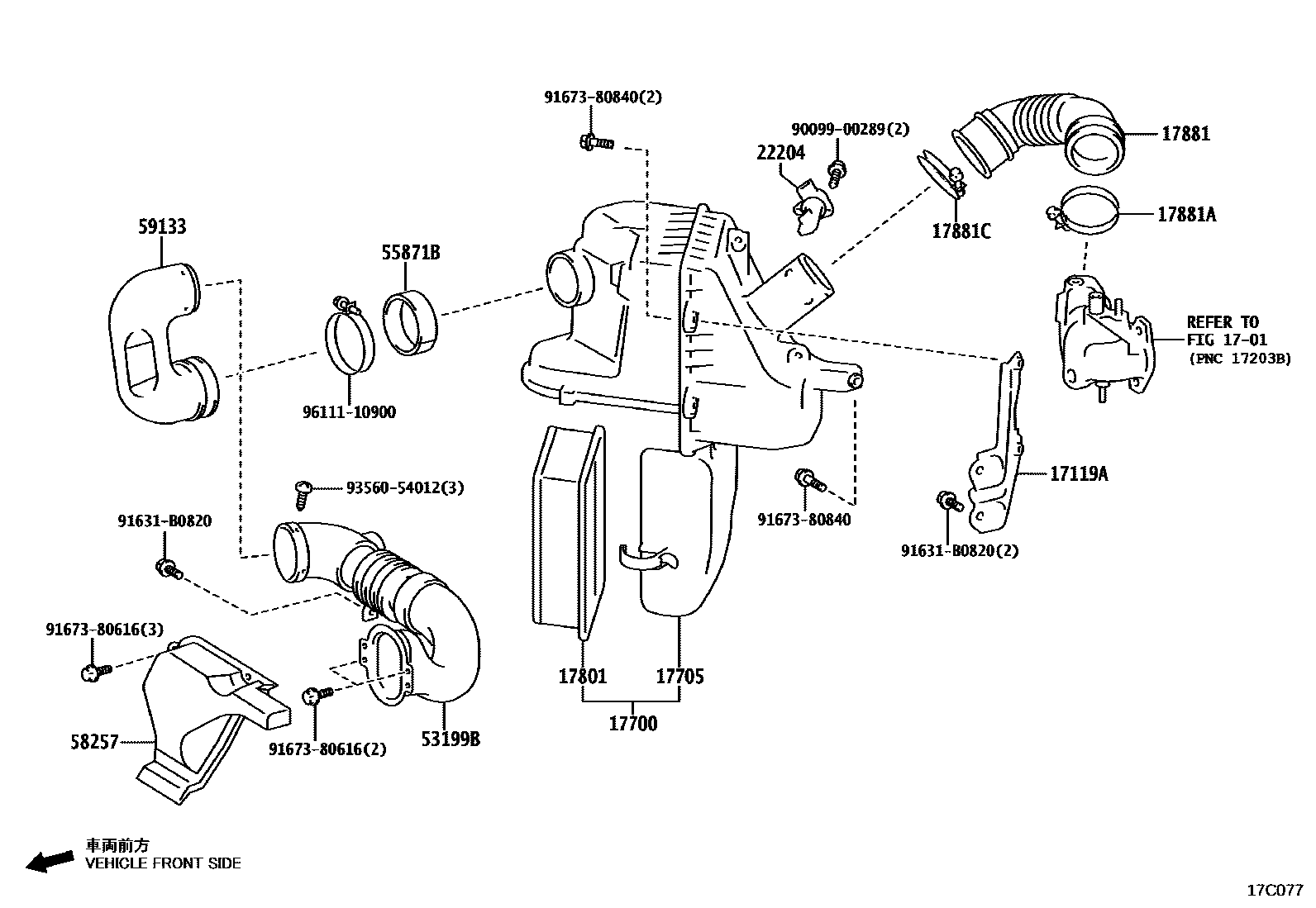

AIR CLEANER

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

17119ABRACKET, AIR CLEANER

main17119-V4010i1GDFTV..GDB60,70,80202201-202412

17700CLEANER ASSY, AIR

main17700-78531iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

main17700-V4010i1GDFTV..GDB60,70,80202201-202412

17705CAP SUB-ASSY, AIR CLEANER

main17705-17180iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

main17705-V4010i1GDFTV..GDB60,70,80202201-202412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-30070i1GDFTV..GDB60,70,80202201-202412

main17801-58030iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701

17881HOSE, AIR CLEANER, NO.1

main17880-V4010i1GDFTV..GDB60,70,80202201-202412

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i1GDFTV..GDB60,70,80202201-202412

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i1GDFTV..GDB60,70,80202201-202412

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-30020iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

main22204-30030i1GDFTV..GDB60,70,80202201-202412

53199BDUCT SUB-ASSY, COOL AIR INTAKE

main53207-V4010iGDB60,70,80202201-202412

55871BSEAL, AIR DUCT

main55871-36020iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

58257PLATE, AIR CLEANER HOUSE

main58257-36050iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202201

main58257-V4010iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

59133HOSE, COOL AIR INTAKE, NO.3

main59132-36020iGDB60,70,80202201-202412

9009900289

main90099-00289

91631B0820

main91631-B0820

9167380616

main91673-80616

9167380840

main91673-80840

9356054012

main93560-54012

9611110900

main96111-10900

19 parts on this diagram · 3 diagrams in section
