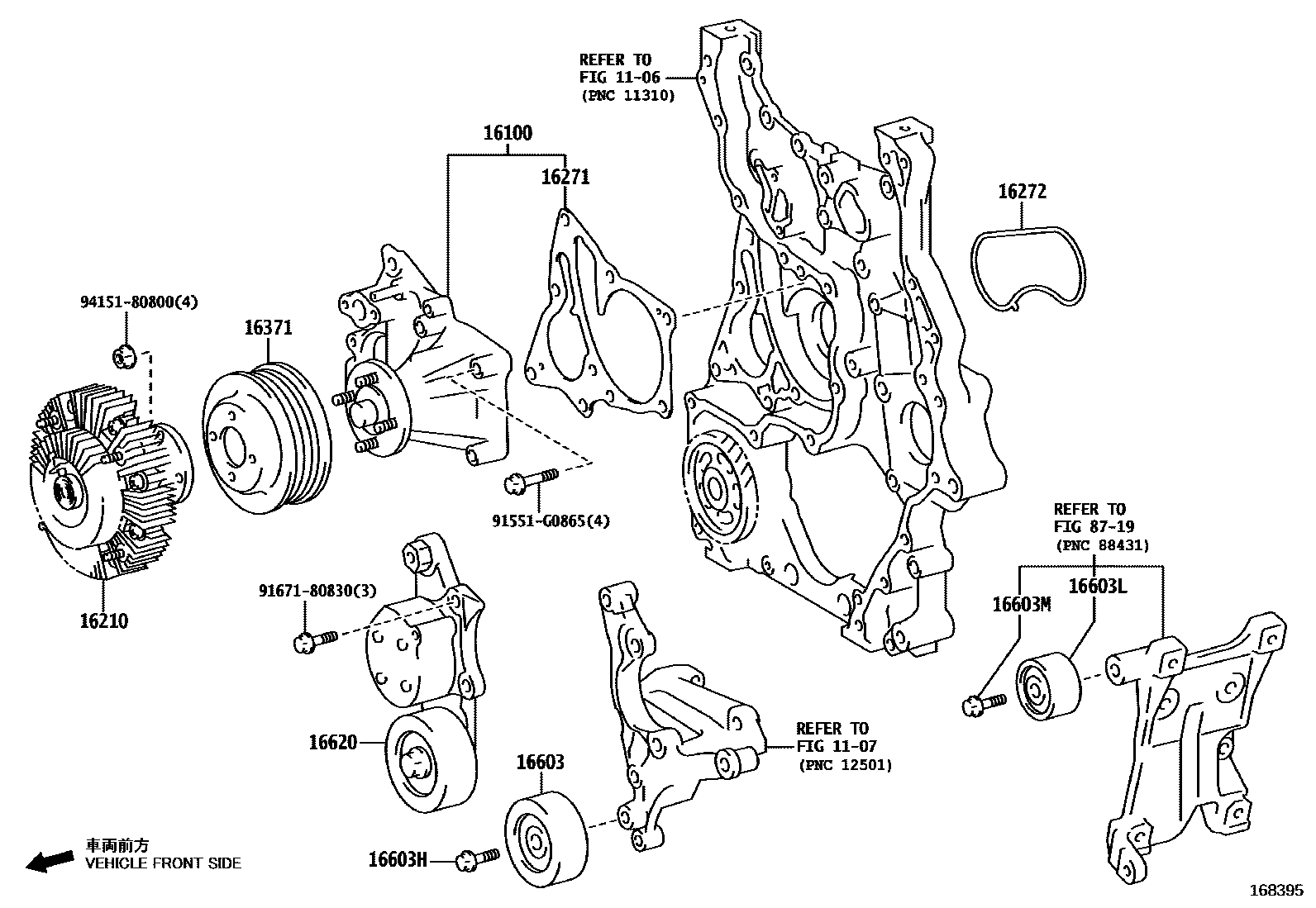

WATER PUMP

0001 1 0002 1 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1107MOUNTING

→ Go to FIG 11-07

16100PUMP ASSY, ENGINE WATER

main16100-19375i1GDFTV..GDB60,70,80202201-202412

main16100-E0B60iN04C..XZB60,70201701-201812

main16100-E0B61iN04C..XZB60,70201901-201905

main16100-E0B71iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201

main16100-E0B90iN04C..XZB60,70201905-201908

16210COUPLING ASSY, FLUID

main16210-30031i1GDFTV..GDB60,70,80202201-202412

mainS162501850iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701

16271GASKET, WATER PUMP

main16271-11010i1GDFTV..GDB60,70,80202201-202412

main16271-78010iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201

16272GASKET, WATER PUMP, NO.2

main16272-11010i1GDFTV..GDB60,70,80202201-202412

16371PULLEY, FAN

main16107-E0040iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

main16371-11020i1GDFTV..GDB60,70,80202201-202412

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i1GDFTV..GDB60,70,80202201-202412

main16603-E0031iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

16603HBOLT(FOR IDLER PULLEY)

main91552-81050i1GDFTV..GDB60,70,80202201-202412

16603LPULLEY SUB-ASSY, IDLER, NO.1

main16603-11010i1GDFTV..GDB60,70,80202201-202412

16603MBOLT(FOR IDLER PULLEY)

main91552-81050i1GDFTV..GDB60,70,80202201-202412

16620TENSIONER ASSY, V-RIBBED BELT

main16620-11010i1GDFTV..GDB60,70,80202201-202412

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

91551G0865

main91551-G0865

9167180830

main91671-80830

9415180800

main94151-80800

16 parts on this diagram · 3 diagrams in section
