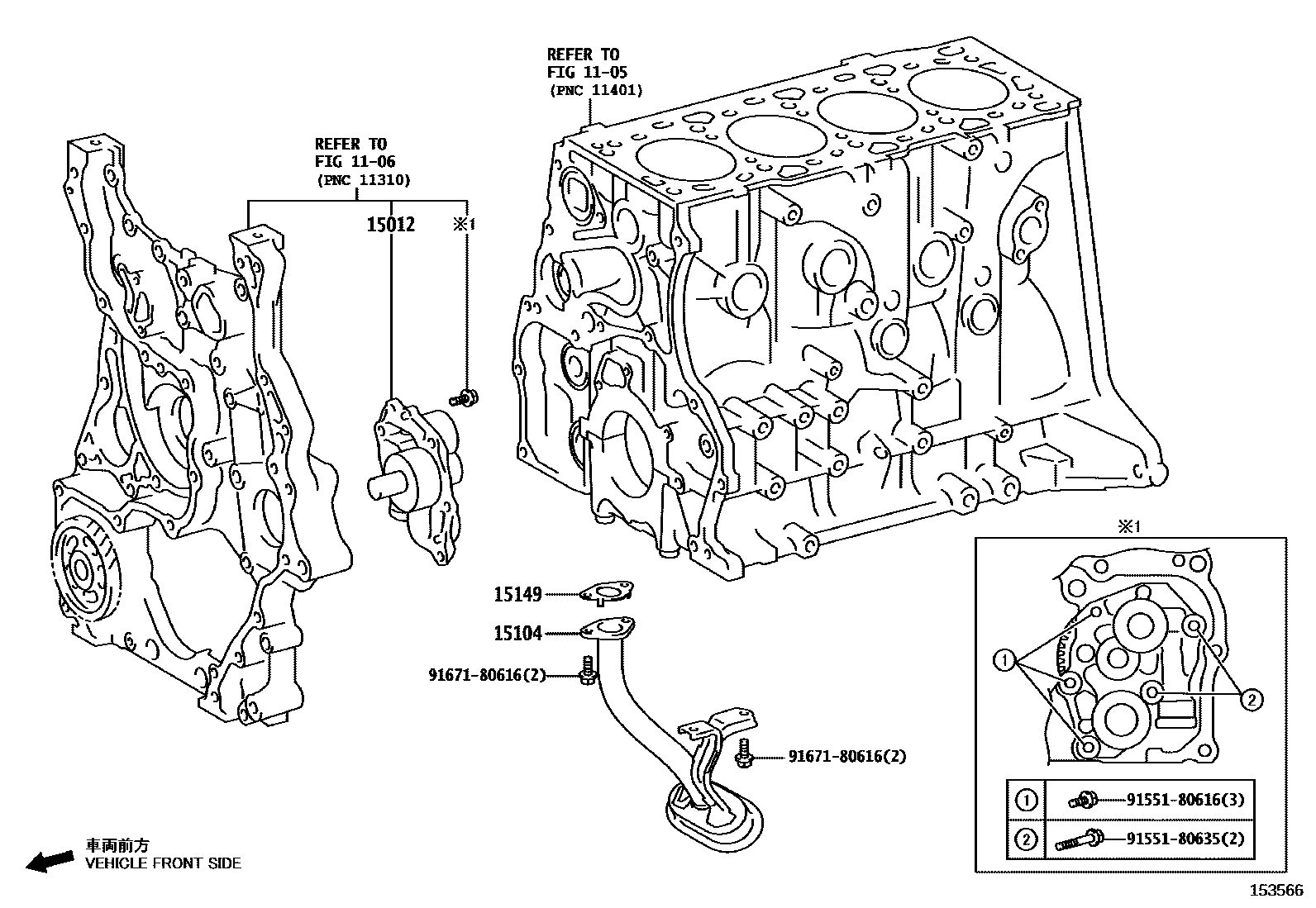

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15012COVER SUB-ASSY, OIL PUMP

main15012-11030i1GDFTV..GDB60,70,80202201-202412

main15012-E0121iN04C..XZB70..(09S,24S)..6FC..DCR;N04C..XZB60,80..(13S,25S,39S)..6FC..DCR201701

15104STRAINER SUB-ASSY, OIL

main15104-11230i1GDFTV..GDB60,70,80202201-202412

mainS151041940iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201701-202201

15149GASKET, OIL STRAINER FLANGE

main15149-11120i1GDFTV..GDB60,70,80202201-202412

9155180616

main91551-80616

9155180635

main91551-80635

9167180616

main91671-80616

8 parts on this diagram · 2 diagrams in section
