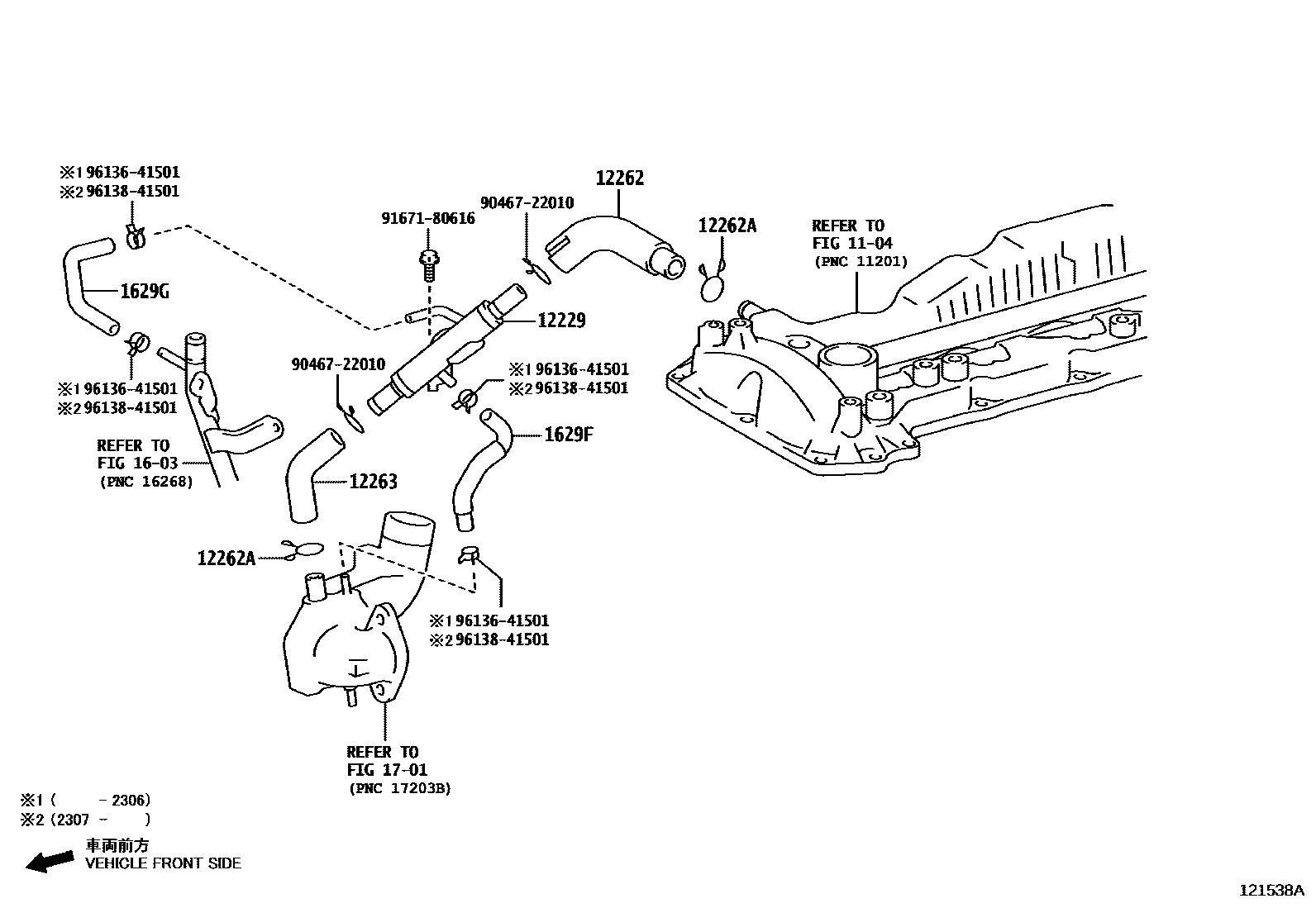

VENTILATION HOSE

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12229PIPE, VENTILATION

main12229-11060i1GDFTV..GDB60,70,80202201-202412

12262HOSE, VENTILATION, NO.2

main12261-78640iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201

main12262-11110i1GDFTV..GDB60,70,80202201-202412

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-22005×2i1GDFTV..GDB60,70,80202201-202412

12263HOSE, VENTILATION, NO.3

main12261-78650iN04C..XZB60..09S;N04C..XZB60,70..5F;N04C..XZB70,80..(13S,24S)..HDCR;N04C..XZB70..(21S,29S,49S)..6FC201908-202201

main12263-11020i1GDFTV..GDB60,70,80202201-202412

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1629FHOSE, WATER BY-PASS, NO.19

main1629F-11010i1GDFTV..GDB60,70,80202201-202412

1629GHOSE, WATER BY-PASS, NO.20

main1629G-11010i1GDFTV..GDB60,70,80202201-202412

1701MANIFOLD

→ Go to FIG 17-01

9046722010

main90467-22010

9167180616

main91671-80616

9613641501

main96136-41501

9613841501

main96138-41501

13 parts on this diagram · 3 diagrams in section
