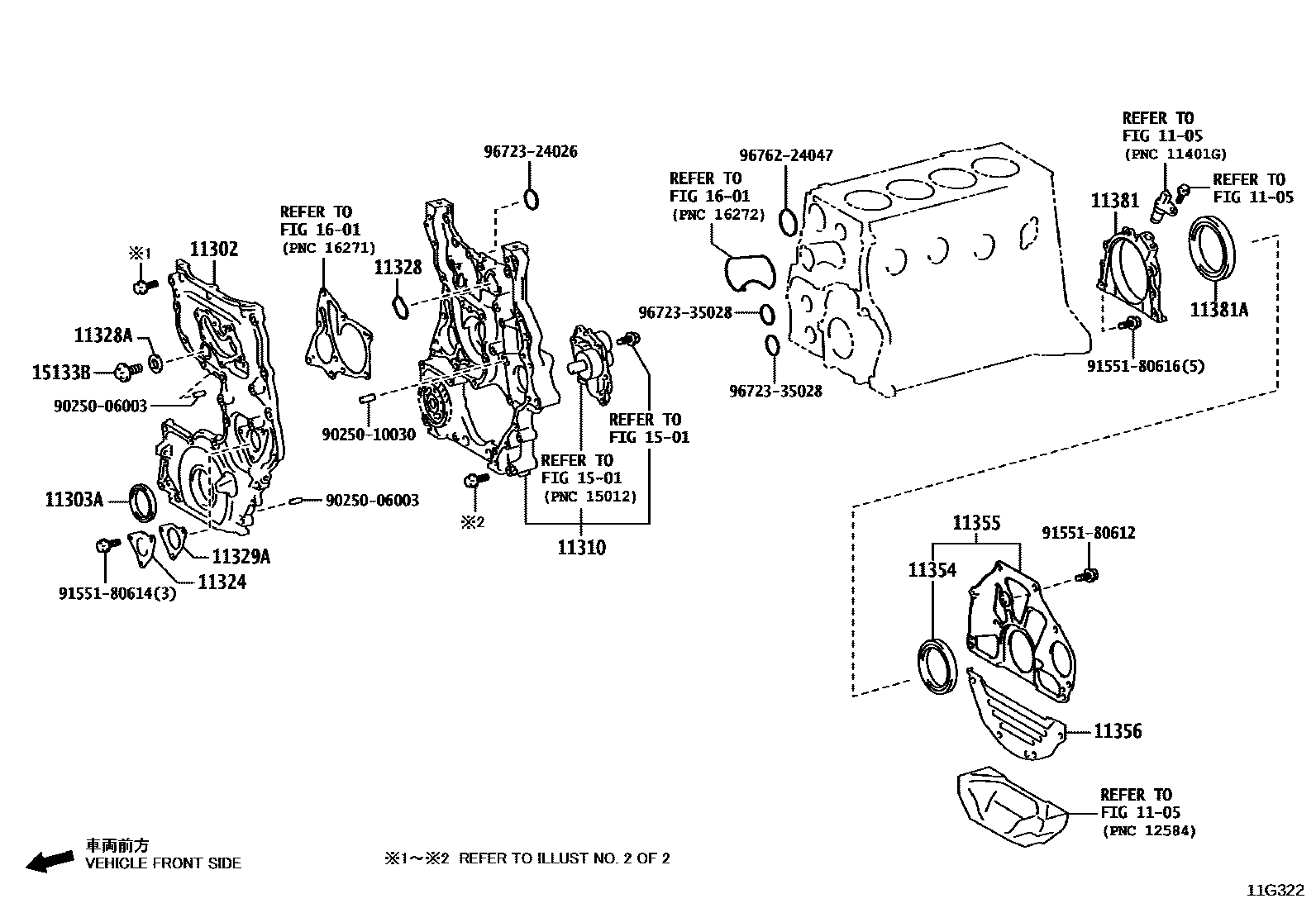

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-11120i1GDFTV..GDB60,70,80202201-202306

main11321-35040i1GDFTV..GDB60,70,80202307-202412

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-50051i1GDFTV..GDB60,70,80202201-202412

11310COVER ASSY, TIMING CHAIN

main11310-11041i1GDFTV..GDB60,70,80202201-202406

main11310-35120i1GDFTV..GDB60,70,80202407-202412

11324PLATE, TIMING CHAIN COVER

main11324-11010i1GDFTV..GDB60,70,80202201-202412

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11070i1GDFTV..GDB60,70,80202201-202412

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV..GDB60,70,80202201-202412

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-11020i1GDFTV..GDB60,70,80202201-202412

11354SEAL, FLYWHEEL HOUSING DUST

main11354-30010i1GDFTV..GDB60,70,80202201-202412

main11354-E0060iN04C..XZB60..5F;N04C..XZB60..09S;N04C..XZB70..21S,29S,49S;N04C..XZB70,80..(13S,24S)..HDCR202201-202312

11355PLATE, REAR END

main11355-11040i1GDFTV..GDB60,70,80202201-202412

11356PLATE, REAR END, NO.2

main11356-11060i1GDFTV..GDB60,70,80202201-202412

11381RETAINER, ENGINE REAR OIL SEAL

main11381-11010i1GDFTV..GDB60,70,80202201-202412

11381ASEAL, ENGINE REAR OIL

main90311-95015i1GDFTV..GDB60,70,80202201-202412

mainSZ31100002iN04C..XZB60,70..5F201701-201906

mainSZ31100004iN04C..XZB60,70..5F;N04C..XZB70,80..(13S,21S)..HDCR201907-202201

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV..GDB60,70,80202201-202412

1601WATER PUMP

→ Go to FIG 16-01

9025006003

main90250-06003

9025010030

main90250-10030

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

24 parts on this diagram · 4 diagrams in section
