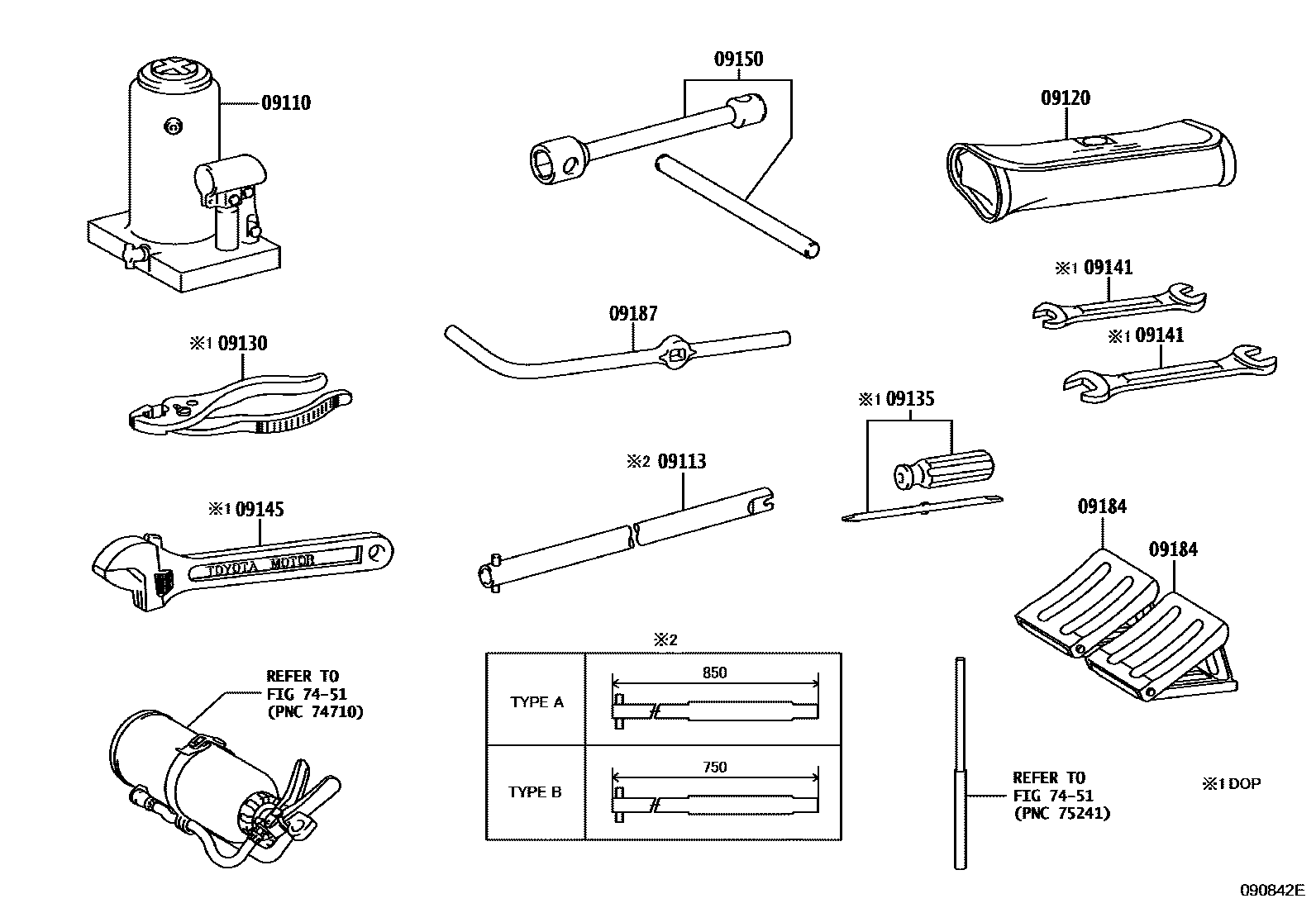

STANDARD TOOL

09110JACK ASSY

main09111-36321iXZB70..(09S,24S)..6FC..DCR;XZB60,80..(13S,25S,39S)..6FC..DCR201701-202412

09113HANDLE, JACK

main09113-36170iXZB70..09S201701-202201

main09113-36170iXZB60..09S202201-202412

main09113-36190iXZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201909-202201

main09113-36190iXZB60..5F;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202412

09120BAG, TOOL

main09120-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09145WRENCH, MONKEY

main99911-11200

09150WRENCH, HUB NUT BOX

main09150-37030iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

09184STOPPER, WHEEL

main09184-60010iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iXZB60..09S;XZB60,70..5F;XZB70,80..(13S,24S)..HDCR;XZB70..(21S,29S,49S)..6FC201701-202412

7451

11 parts on this diagram · 1 diagram in section
