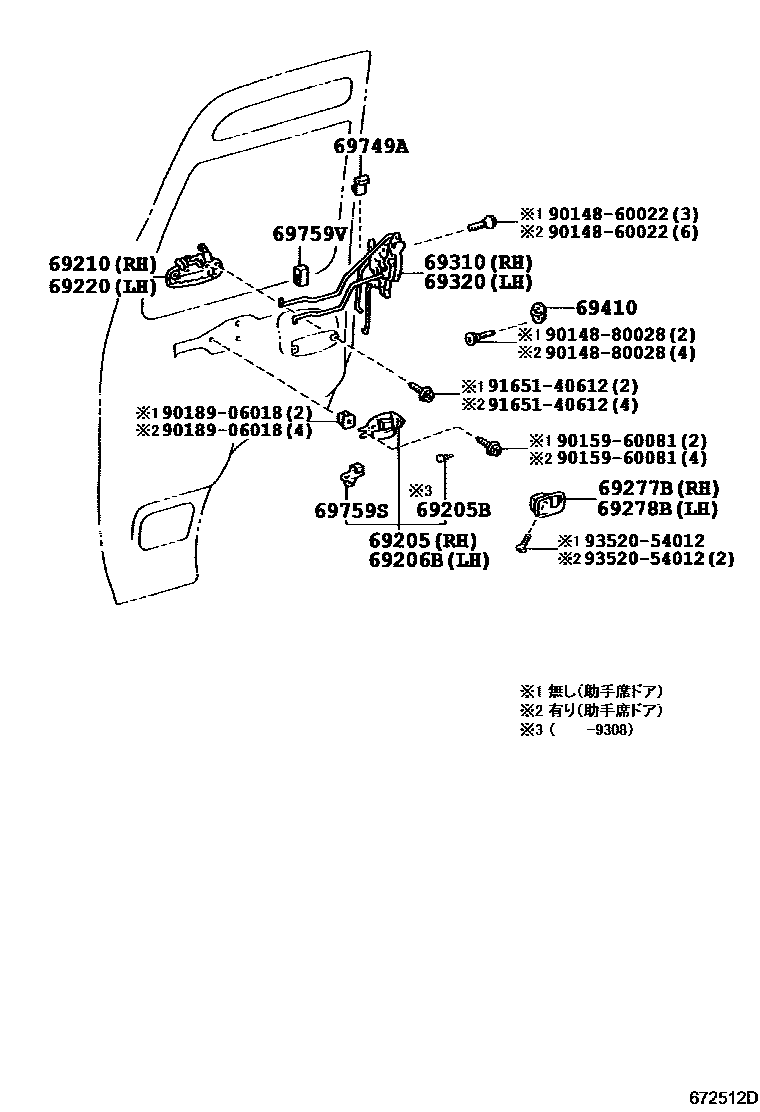

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-60030-A0iBB4#,HDB5#,HZB4#,5#199301-199505

IVORY,TRIM4#

main69205-60040-A0iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199505-199907

IVORY,TRIM4#

sub69205-60040

main69205-60040-A1iBB58,HDB5#,HZB4#,5#..CBU,IV5199907-200108

IVORY,TRIM4#

sub69205-60040

main69205-60040-B1iBZB40,50,XZB4#,5#200108-201612

MD.CHARCOAL,TRIM1#

sub69205-60040

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iBB46,HZB56199301-199308

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-60030-A0iBB46,HZB56199301-199505

IVORY,TRIM4#

sub69206-60030

main69206-60040-A0iBB46,HZB56199505-199907

IVORY,TRIM4#

main69206-60040-A1iHZB46,56199907-200108

IVORY,TRIM4#

main69206-60040-B1iHZB46,56..09S200108-201612

MD.CHARCOAL,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-201501

main69210-36020-E0iXZB51200408-201501

BEIGE ME.,4R4

main69210-36020-F0iHDB51,HZB41..CBU,IV5200108-200408

CHAMPAGNE ME.,583

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-36010iHZB46,56..09S199301-201501

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-60010-A0iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

IVORY,TRIM4#

sub69277-60010

main69277-60010-A1iBB58,HDB5#,HZB4#,5#..CBU,IV5199907-200108

IVORY,TRIM4#

sub69277-60010

main69277-60010-B0iBB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5200108-201612

MD.CHARCOAL,TRIM1#

sub69277-60010

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-60010-A0iBB46,HZB56199301-199907

IVORY,TRIM4#

sub69278-60010

main69278-60010-A1iHZB46,56199907-200108

IVORY,TRIM4#

sub69278-60010

main69278-60010-B0iHZB46,56..09S200108-201612

MD.CHARCOAL,TRIM1#

sub69278-60010

69310LOCK ASSY, FRONT DOOR, RH

main69030-36010iXZB51..SULNG200908-201501

main69030-36020iBZB40,50..LX200908-201501

main69310-36010iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199301-201501

main69310-36020iBB5#199512-200408

69320LOCK ASSY, FRONT DOOR, LH

main69040-36020iXZB46,56200908-201501

main69320-36010iXZB46,56..09S199301-200908

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iXZB46,56..6FC199301-201501

main69410-87001iXZB51..SULNG200408-201108

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iBB46,HZB56199301-201501

main69749-12010iXZB51..SULNG200408-201108

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iHZB46,56..09S199301-201501

main69759-24070iHZB46,56..09S199301-201501

main69759-24070iXZB51..SULNG200408-201108

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU199301-201501

main69759-30021iXZB51..SULNG200408-201108

9014860022

main90148-60022

9014880028

main90148-80028

9015960081

main90159-60081

9018906018

main90189-06018

9165140612

main91651-40612

9352054012

main93520-54012

19 parts on this diagram · 1 diagram in section
