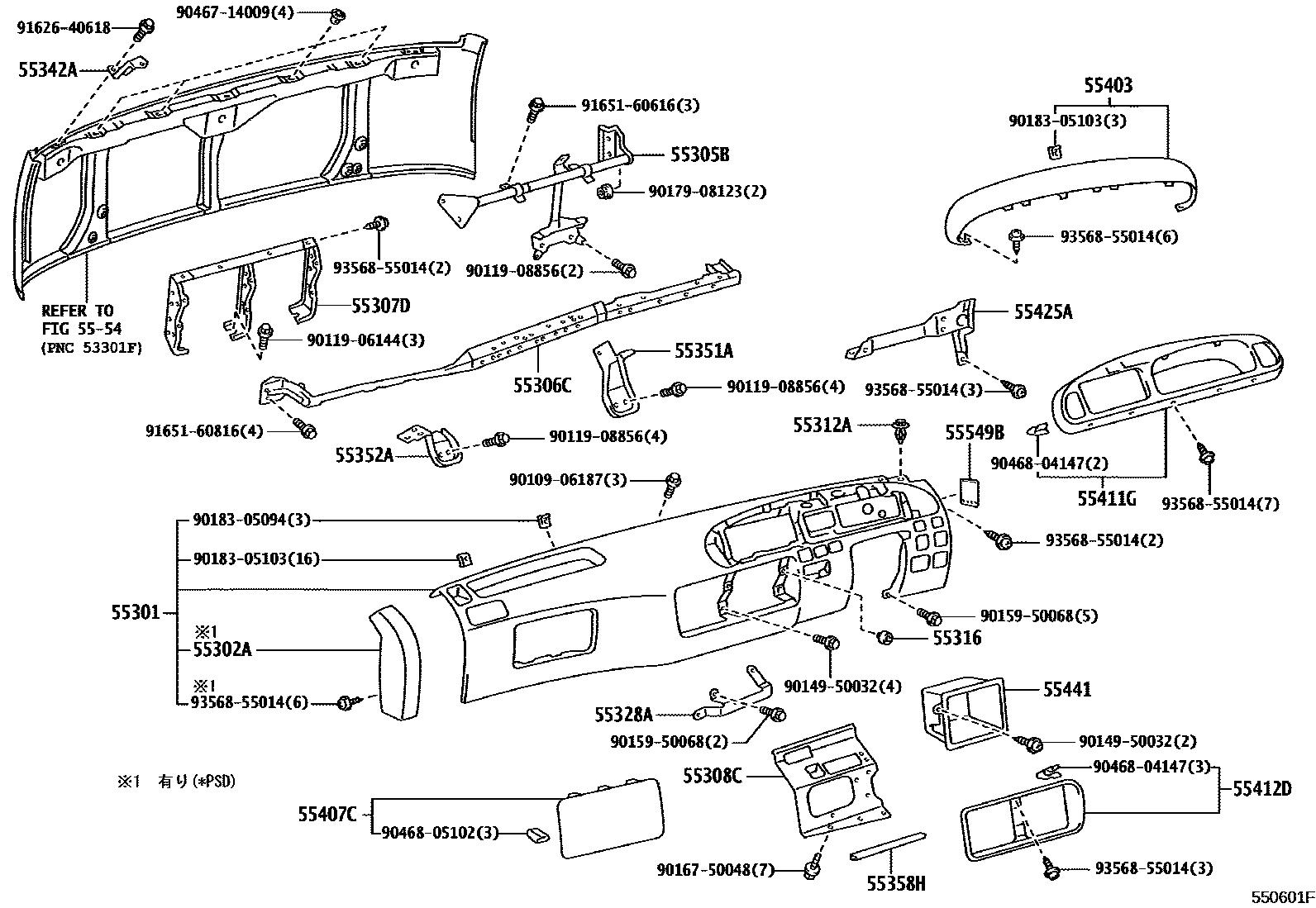

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-36010-E0iBB4#,5#,HDB5#,HZB4#,5#199301-199907

GREIGE,TRIM4#

main55301-36030-E0iBB46,HZB56199301-199907

main55301-36031-B0iHZB46,56..09S200108-200408

main55301-36031-E0iHZB46,56199907-200108

main55301-36032-B0iXZB46,56..09S200512-200705

main55301-36033-B0iXZB46,56..09S200705-200708

main55301-36040-E0iBB40,58,HDB5#,HZB4#,50..HRF..(CBU,IV5)199705-199907

main55301-36041-B0iBZB40,50,XZB4#,5#200408-200511

main55301-36041-E0iBB58,HDB5#,HZB4#,5#..CBU,IV5199907-200108

main55301-36042-B0iBZB40,50,XZB4#,5#200512-200705

main55301-36043-B0iBZB40,50,XZB4#,5#200705-200708

main55301-36060-B0iBB58,BZB40,50,HDB5#,HZB4#,5#200108-200408

DK.CHARCOAL,TRIM1#

main55301-36060-E0iBB58,HDB5#,HZB4#,5#199907-200108

GREIGE,TRIM4#

main55301-36061-B0iBZB40,50,XZB4#,5#200512-200705

DK.CHARCOAL,TRIM1#

main55301-36062-B0iBZB40,50,XZB4#,5#200705-200708

DK.CHARCOAL,TRIM1#

main55301-36070-B0iXZB46,56..09S200408-200511

main55301-36070-E0iHZB46,56199907-200108

main55301-36071-B0iXZB46,56..09S200512-200705

main55301-36072-B0iXZB46,56..09S200705-200708

main55301-36100-B0iBZB40,50,XZB4#,5#200708-200812

DK.CHARCOAL,TRIM1#

main55301-36101-B0iXZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC200901-201501

DK.CHARCOAL,TRIM1#

main55301-36110-B0iXZB46,56200708-200812

main55301-36111-B0iXZB46,56200901-201501

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-36010-B0iHZB46,56..09S200108-200408

DK.CHARCOAL,TRIM1#

main55302-36010-E0iHZB46,56199907-200108

GREIGE,TRIM4#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main55305-36030iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

main55305-36031iXZB4#,5#..4FC,6F200705-200708

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-36010iHZB46..09S; HZB56199907-200408

main55306-36011iXZB46,56..09S200704-200708

main55306-36012iXZB46,56200708-201011

main55306-36013iXZB46,56201012-201206

main55306-36014iXZB46,56201501

main55306-36020iXZB51..SULNG200408-200512

main55306-36022iBZB40,50,XZB4#,5#200604-200704

main55306-36023iBZB40,50,XZB4#,5#200704-200708

main55306-36024iXZB40,51..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..WC200708-201011

main55306-36025iBZB40,50,XZB51..STD,SULNG201012-201108

main55306-36026iBZB40,50,XZB4#,5#201207-201501

55307DREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3

main55307-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main55307-36020iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-36010iBB4#,55,HDB5#,HZB4#,5#199301-199705

main55308-36011iBB4#,58,HDB5#,HZB4#,5#199705-199907

main55308-36012iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

main55308-36013iBZB40,50,XZB51..STD,SULNG201012-201108

main55308-36014iBZB40,50,XZB4#,5#201209-201501

55312ACLIP, INSTRUMENT PANEL

main90467-07071-E3iBB58,HDB5#,HZB4#,5#199907-200108

GREIGE,TRIM4#

main90467-07071-P3iXZB40,51..CBU;XZB40..ATM..IV5;XZB51..4FC..IV5;BZB40,50,XZB46,50,56..WC200408-201501

DK.CHARCOAL,TRIM1#

55316SPACER, INSTRUMENT PANEL, NO.2

main55316-36010×2iXZB50..WC;XZB40..CBU;XZB40..4FC..IV5;BZB40,50,XZB46,51,56..EX,LX200408-200708

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-36010iXZB51..SULNG200408-200512

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199808

main55342-36030iBB4#,58,HDB5#,HZB4#,5#199808-199907

main55342-36050iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200903

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-36010iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-36010iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

55358HPROTECTOR, INSTRUMENT PANEL

main55358-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

55403HOOD SUB-ASSY, METER

main55421-36010-B0iBZB40,50,XZB4#,5#200408-200708

DK.CHARCOAL,TRIM1#

main55421-36010-E0iBB4#,5#,HDB5#,HZB4#,5#199301-199907

GREIGE,TRIM4#

main55421-36030-B0iBZB40,50,XZB4#,5#200708-201501

DK.CHARCOAL,TRIM1#

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-36010-B0iBZB40,50,XZB4#,5#201501-201612

DK.CHARCOAL,TRIM1#

main55407-36010-E0iBB4#,5#,HDB5#,HZB4#,5#199301-199907

GREIGE,TRIM4#

main55407-36030-B0iHDB5#..(26S,29S)..CBU; HZB50..29S..WC..CBU200108-200408

main55407-36030-E0iHDB5#..(26S,29S)..CBU; HZB50..29S..WC..CBU199907-200108

main55407-36031-B0iBZB40,50,XZB40,50,51..EX,GX,LX201501-201612

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-36010iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

main55411-36050iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

main55411-36070iBZB40,50,XZB4#,5#201501

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-36010-E0iBB58,HZB50..29S..WC..CBU;BB46,55,HDB5#,HZB41,56..CBU,IV1199301-199907

GREIGE,TRIM4#

main55412-36011-B0iBZB40,50,XZB4#,5#200408-200707

DK.CHARCOAL,TRIM1#

main55412-36011-E0iBB58,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV1)199907-200108

GREIGE,TRIM4#

main55412-36012-B0iBZB40,50,XZB4#,5#201501-201612

DK.CHARCOAL,TRIM1#

main55412-36020-E0iBB58,HZB40..LX;BB40,55,HDB5#,HZB41,50..CBU,IV5199301-199907

main55412-36021-B0iBB58,HDB5#,HZB40,41,50..(19S,20S,26S,29S,39S,49S)..(CBU,IV5); BZB40,50;HDB51,HZB41..IV5200108-200408

main55412-36021-E0iBB58,HDB5#,HZB40,41,50..CBU,IV5199907-200108

main55412-36022-B0iBZB40,50,XZB40,50,51200708-201501

55425ABRACKET, METER HOOD SET

main55425-36010iXZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD200408-200708

main55425-36030iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

main55425-36031iXZB40,50;BZB40,50,XZB46,51,56..EX,LX201102-201501

55441BOX, INSTRUMENT PANEL

main55441-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

5554FRONT PANEL & WINDSHIELD GLASS

→ Go to FIG 55-54

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-36010-B0iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200903

DK.CHARCOAL,TRIM1#

9010906187

main90109-06187

9011906144

main90119-06144

9011908856

main90119-08856

9014950032

main90149-50032

9015950068

main90159-50068

9016750048

main90167-50048

9017908123

main90179-08123

9018305094

main90183-05094

9018305103

main90183-05103

9046714009

main90467-14009

9046804147

main90468-04147

9046805102

main90468-05102

9162640618

main91626-40618

9165160616

main91651-60616

9165160816

main91651-60816

9356855014

main93568-55014

37 parts on this diagram · 4 diagrams in section
