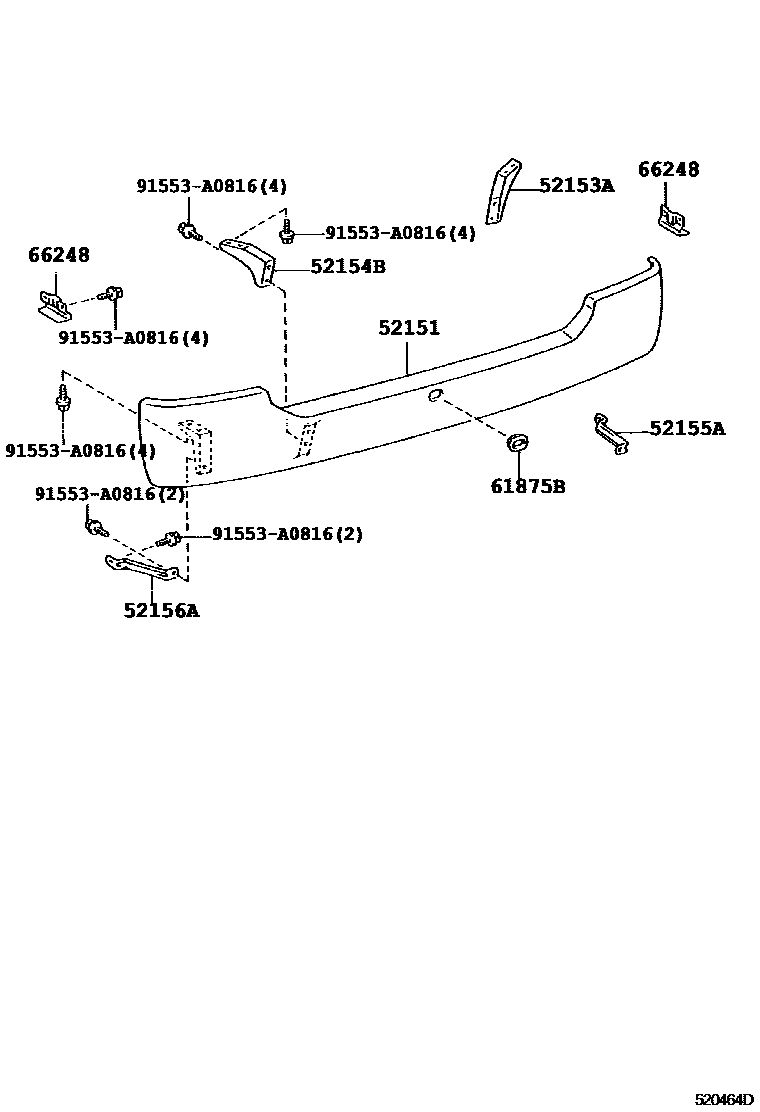

REAR BUMPER & BUMPER STAY

0001 1����������� �� 0002 1����������� ��

52151BUMPER ASSY, REAR

main52105-36900iXZB50..29S..WC..(5F,6FC)..CBU;BZB40,50,XZB40,51..(26S,29S)..(5F,6FC)..CBU200408-201501

main52105-36907iXZB40,50,51201209-201501

main52106-36900iBB46,HZB56199301-199907

main52106-36902iXZB4#,5#..EX,GX,LX201501

main52107-36900iXZB50..29S..WC..(5F,6FC)..CBU;XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU200408-201209

main52107-36902iXZB4#,5#..EX,GX,LX201501

52153ASTAY, REAR BUMPER SIDE, RH

main52153-36010iBB58,BZB40,50,HDB5#,HZB4#,5#..CBU,IV5199907-200408

52154BSTAY, REAR BUMPER SIDE, LH

main52154-36010iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-36010iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-36010iBB40,5#,HDB5#,HZB4#,50..CBU,IV5199301-199907

66248PROTECTOR, REAR BODY SIDE PANEL, RH

main66248-36010×2iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

91553A0816

main91553-A0816

8 parts on this diagram · 2 diagrams in section
