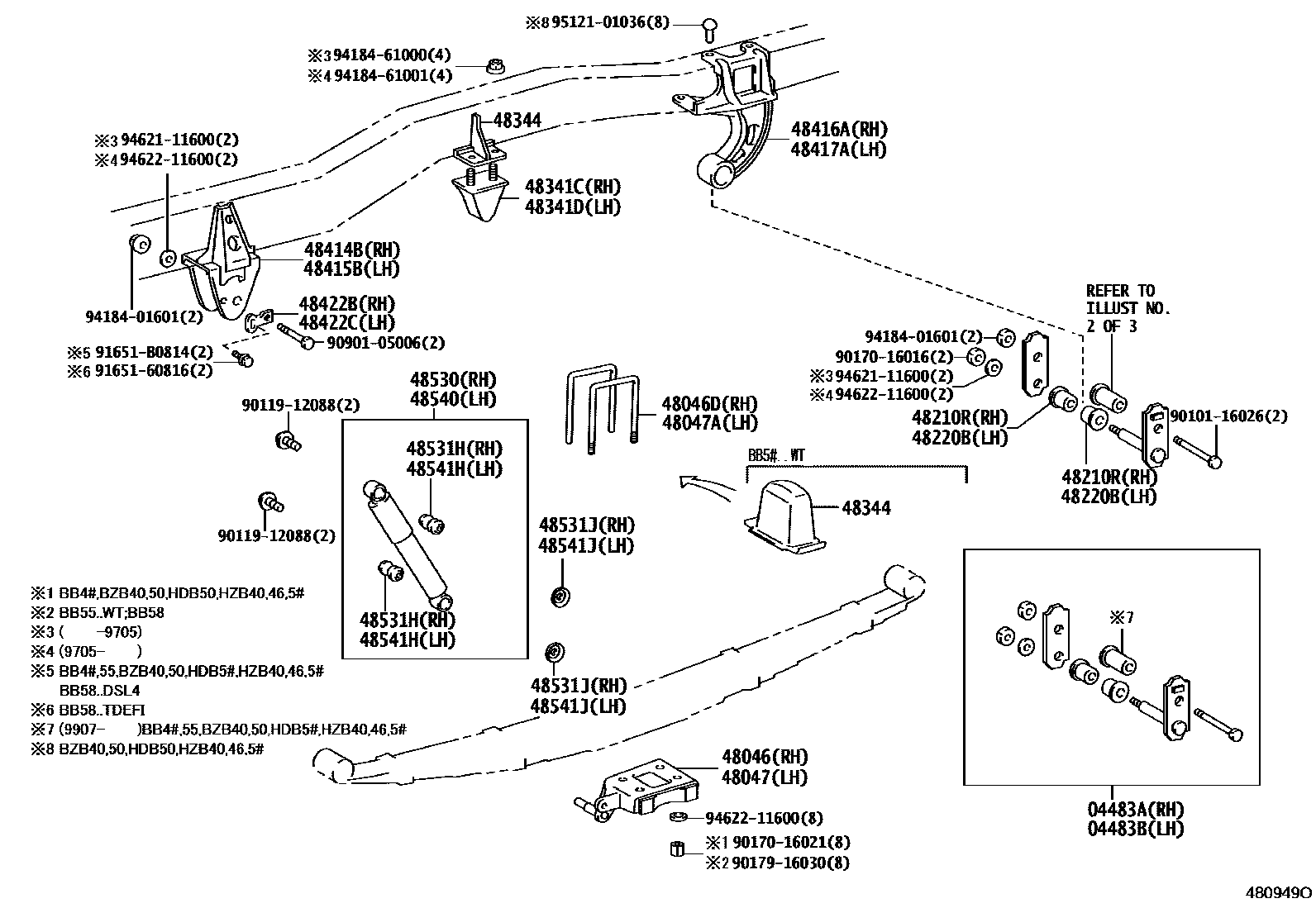

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 12-LEAF 0006 12-LEAF 0007 1 0008 12-LEAF 0009 1

04483ASHACKLE KIT, REAR SPRING, RH

main04483-36080iBB58199907-200408

sub04483-36140

main04483-36120iBZB40,50,XZB4#,50,56201501

04483BSHACKLE KIT, REAR SPRING, LH

main04483-36080iBB4#,5#,HDB50,HZB40,5#..WT199301-199907

sub04483-36140

main04483-36120iXZB4#,50,56..4FC,6F200408-200708

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36240iHDB50,HZB40,50..GX,LX199301-199907

main48046-36250iXZB51201501

main48046-36260iBB4#,HZB56;HZB40,50..DX,STD199301-199907

main48046-36270iBB58199907-200408

48046DBOLT, U(FOR REAR SPRING RH)

main90117-16042×2iBZB40,50..STD200408-201108

main90117-16046×2iBB5#..WT199612-199907

main90117-16062×2iBB55..WT199610-199612

main90117-20003×2iXZB51..6FC..IV5200408-200908

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-36240iBZB40,50,XZB4#,50,56201501

main48047-36250iXZB51201501

main48047-36260iBB4#,HZB56;HZB40,50..DX,STD199301-199907

main48047-36270iBB5#..WT199610-199907

48047ABOLT, U(FOR REAR SPRING LH)

main90117-16042×2iBB4#,HDB50,HZB40,5#199301-199907

main90117-16046×2iBB58199907-200408

main90117-16062×2iBB55..WT199610-199612

main90117-20003×2iXZB51..6FC..IV5200408-200908

48210SPRING ASSY, REAR RH

main48210-3B750iXZB51..SULNG200408-200512

main48210-3B840iBB40..26S;HZB50..DX199309-199907

main48210-3B850iHZB40,50..DX199907-200408

main48210-3B860iBB4#,HZB5#..09S,39S,49S199301-199907

main48210-3B870iBZB40,50,HZB40,46,5#..09S,39S,49S199907-200408

main48210-3C070iHZB46..09S..4FC199908

main48210-3C120iBB5#..WT199610-199907

main48210-3C180iXZB50..HDCR201501

main48210-3C270iXZB40..20S200408-200708

48210RBUSH(FOR REAR SPRING SHACKLE LOWER RH)

main90385-23002×2iBZB40,50,XZB4#,50,56201501

48220SPRING ASSY, REAR LH

main48210-3B800iXZB40,50..(26S,29S)..DCR..4FC200408-200708

main48210-3B840iHZB40,50..DX199907-200408

main48210-3B850iBB40..26S;HZB50..DX199309-199907

main48210-3B860iBZB40,50..STD200408-201108

main48210-3B870iBB4#,HZB5#..09S,39S,49S199301-199907

main48210-3C170iHDB50199907-200408

main48210-3C260iHZB40..19S200211-200408

main48220-36120iXZB51..SULNG200408-200512

main48220-36150iBB5#..WT199610-199907

48220BBUSH(FOR REAR SPRING SHACKLE LOWER LH)

main90385-23002×2iXZB4#,50,56..4FC,6F200408-200708

48341CBUMPER, REAR SPRING, NO.2 RH

main48306-36080iBB4#,HDB50,HZB40,5#199301-199707

main48306-36081iBB4#,HDB50,HZB40,5#199707-199907

main48306-36090iBZB40,50,HDB50,HZB40,46,5#199907-200408

48341DBUMPER, REAR SPRING, NO.2 LH

main48306-36080iBB4#,HDB50,HZB40,5#199301-199707

main48306-36081iBB4#,HDB50,HZB40,5#199707-199907

main48306-36090iXZB4#,50,56..4FC,6F200408-200708

48344STOPPER, BUMPER, REAR

main48344-36270×2iBB58199907-200408

main48344-36420×2iBB4#,HDB5#,HZB4#,5#199301-199903

main48344-36450iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main48345-36060iBZB40,50,XZB4#,5#201501

48414BBRACKET, SPRING, NO.3 RH

main48414-36310iXZB51..SULNG..6FC200408-201108

main48414-36320iHDB50,HZB50..GX199907-200408

main48414-36330iXZB50..LX,STD;BZB40,50,XZB4#,56201501

48415BBRACKET, SPRING, NO.3 LH

main48414-36310iXZB51..SULNG..6FC200408-201108

main48415-36100iXZB50..GX..(5F,6FC)200408-201501

main48415-36110iBZB40,50..STD200408-201108

48416ABRACKET, SPRING, NO.4 RH

main48416-36290iBB4#,HDB50,HZB40,5#199301-199705

sub48416-36291

main48416-36300iHDB50,HZB50..GX199705-199907

sub48416-36301

48417ABRACKET, SPRING, NO.4 LH

main48417-36160iXZB50..LX,STD;BZB40,50,XZB4#,56201501-201611

sub48417-36161

main48417-36170iHDB50,HZB50..GX199907-200408

sub48417-36171

48422BSUPPORT, REAR SPRING PIN, RH

main48422-36030iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200208

main48422-37010iBB58,BZB40,50,HDB5#,HZB4#,5#200208-200408

48422CSUPPORT, REAR SPRING PIN, LH

main48422-36030iBB4#,5#,HDB5#,HZB4#,5#..WT199301-199907

main48422-37010iBB58,BZB40,50,HDB5#,HZB4#,5#200208-200408

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-36010iBB55..ST199512-199705

main48531-80152iHDB51,HZB41199301-199703

main48531-80169iBB4#,55,HDB50,HZB40,5#..WT199301-199703

main48531-80580iXZB51201501

main48531-80582iXZB4#,50,56..4FC,6F200408-200708

main48531-80793iXZB4#,50,56201501

48531HBUSH(FOR REAR SHOCK ABSORBER RH)

main90385-19006×2iBB4#,5#,HDB5#,HZB4#,5#..WT199301-199907

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90948-03011×2iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-36010iBB55..ST199512-199705

main48531-80152iHDB51,HZB41199301-199703

main48531-80169iBB4#,55,HDB50,HZB40,5#..WT199301-199703

main48531-80580iXZB51..SULNG200408-200512

main48531-80582iXZB50..WOC;XZB40..5F..IV5200408-200908

main48531-80793iXZB4#,50,56201501

48541HBUSH(FOR REAR SHOCK ABSORBER LH)

main90385-19006×2iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90948-03011×2iBB58,BZB40,50,HDB5#,HZB4#,5#199907-200408

9010116026

main90101-16026

9011912088

main90119-12088

9017016016

main90170-16016

9017016021

main90170-16021

9017916030

main90179-16030

9090105006

main90901-05006

9165160816

main91651-60816

91651B0814

main91651-B0814

9418401601

main94184-01601

9418461000

main94184-61000

9418461001

main94184-61001

9462111600

main94621-11600

9462211600

main94622-11600

9512101036

main95121-01036
