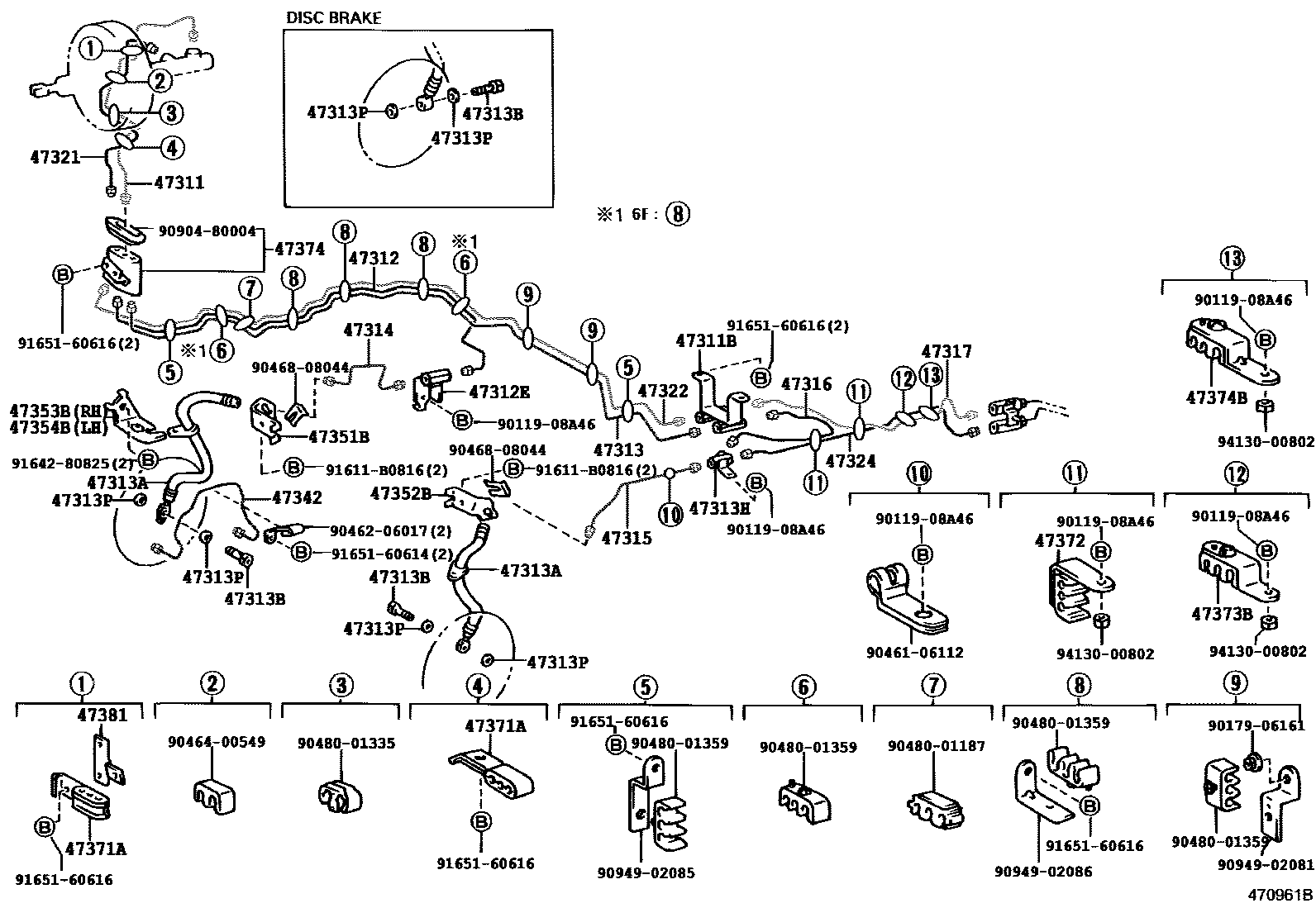

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1��(ABS) 0005 1��(ABS) 0006 1��(ABS) 0009 1��(ABS) 0010 1 0011 1 0013 1 0014 1��(LSPV) 0015 1��(ABS) 0016 1��(ABS) 0017 1 0018 1 0020 1 0021 1��(ABS) 0022 1��(ABS) 0023 1��(ABS) 0027 1��(ABS) 0028 1��(ABS) 0030 1��(ABS) 0031 1��(ABS) 0032 1��(ABS) 0033 1��(ABS) 0034 1��(ABS) 0037 1 0038 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36480iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47311-36490iHDB51,HZB41199301-199907

main47311-36490iHDB51..IV1199805-199907

main47311-36551iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199907-201501

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10006iBB55..ST199512-199705

main90412-12045iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main90412-12047iHDB51..IV1199805-199907

main90412-12047iHDB51,HZB41199301-199907

main90904-12050iBB5#..WT199610-200408

main90904-12083iBZB40,50,HDB5#,HZB4#,5#199907-201501

47312TUBE, FRONT BRAKE, NO.2

main47312-36260iBB55..ST199512-199705

main47312-36270iBB4#,HDB5#,HZB4#,5#199301-199705

main47312-36271iBB4#,HDB5#,HZB4#,5#..CBU,IV5199705-199907

main47312-36281iBB5#..WT199610-200408

main47312-36301iHZB40,46199907-200408

main47312-36340iXZB4#..DX,LX,STD200408-200708

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main47391-36010iBB5#199512-200408

main90412-10210iXZB4#..DX,LX,STD199301-200708

main90413-10271iHDB51,HZB41199301-199907

main90413-10271iHDB51..IV1199805-199907

main90904-12061iXZB40..5F..IV5200708-201501

main90904-13517iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199907-201501

main90904-13517iBZB40,50;HDB51,HZB41..IV5200108-200408

47313TUBE, FRONT BRAKE, NO.3

main47313-36231iBB5#..WT199610-200408

main47313-36240iBB55..ST199512-199705

main47313-36250iBB4#,HDB5#,HZB4#,5#199301-199705

main47313-36251iBB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)199705-199907

main47313-36260iHDB51,HZB41199301-199705

main47313-36261iHDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(4FC,5F)..(CBU,IV5)199705-199907

main47313-36261iHDB51..IV1199805-199907

main47313-36290iHDB5#..6F199705-199907

main47313-36300iHDB5#..6F199705-199907

main47313-36311iXZB51..SULNG199907-200708

main47313-36321iXZB40,50,51..MTM199907-200708

main47313-36330iXZB50,51..6FC200512-200708

main47313-36380iBZB40,50..LX200708-201501

main47313-36390iXZB50..WOC;XZB40..5F..IV5200708-201108

main47313-36410iXZB50,51..HDCR..CBU200708-201108

main47313-36440iXZB4#,5#..DCR201108-201501

sub47313-36450

main47313-36441iXZB4#,5#..DCR201501

sub47313-36451

main47313-36450iXZB50,51..HDCR201108-201501

main47313-36451iXZB50,51..HDCR201501

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02707iHZB50;BB4#,HDB5#,HZB4#,56..WC199301-199907

main90947-02708iBB4#..WOC199301-199907

main90947-02B91iBZB40,50,HDB5#,HZB4#,5#199907-201501

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iBB4#..WOC199301-199907

main90401-10023iBZB40,50,XZB4#,5#199907-201501

main90401-10023iHZB50;BB4#,HDB5#,HZB4#,56..WC199301-199907

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90412-10232iXZB51..SULNG200512-201501

main90413-10270iHZB40,46199301-200708

main90414-10056iXZB40..6FC..IV5;XZB40..(DX,LX,STD)..CBU200708-201501

main90904-13030iBB5#199512-200408

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iBB4#,HDB5#,HZB4#,5#199301-201501

47314TUBE, FRONT BRAKE, NO.4

main47314-36300iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47314-36340iBB58199512-200408

main47314-36351iBB58199610-200408

main47314-36371iHZB40,46199907-200408

main47314-36410iXZB4#..DX,LX,STD200408-200708

47315TUBE, FRONT BRAKE, NO.5

main47313-36280iBB58199512-200408

main47315-36220iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47315-36251iBB5#..WT199610-200408

main47315-36261iXZB4#..DX,LX,STD199907-200708

main47315-36330iXZB40..5F..IV5200708-201501

47316TUBE, FRONT BRAKE, NO.6

main47316-36260iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47316-36291iBB5#..WT199610-200408

main47316-36301iHZB40,46199907-200708

47317TUBE, FRONT BRAKE, NO.7

main47317-36120iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47317-36130iHDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(CBU,IV5)199301-199907

main47317-36130iHDB51..IV1199805-199907

main47317-36161iXZB4#..DX,LX,STD199907-200708

main47317-36171iXZB50..WOC;XZB40..5F..IV5199907-201501

main47317-36171iXZB51..IV5200203-201501

47321TUBE, REAR BRAKE, NO.1

main47321-36300iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47321-36310iHDB51..IV1199805-199907

main47321-36310iHDB51,HZB41199301-199907

main47321-36371iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199907-201501

47322TUBE, REAR BRAKE, NO.2

main47322-36320iBB55..ST199512-199705

main47322-36330iBB4#,HDB5#,HZB4#,5#199301-199705

main47322-36331iBB4#,HDB5#,HZB4#,5#..(4FC,5F)..(CBU,IV5)199705-199907

main47322-36340iHDB51,HZB41199301-199705

main47322-36341iHDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..(4FC,5F)..(CBU,IV5)199705-199907

main47322-36341iHDB51..IV1199805-199907

main47322-36371iBB5#..WT199610-199907

main47322-36380iHDB5#..6F199705-199907

main47322-36390iHDB5#..6F199705-199907

main47322-36401iBZB40,50,HDB5#,HZB4#,5#..4FC,5F199907-200708

main47322-36411iXZB40,50,51..MTM199907-200708

main47322-36420iBB58199907-200408

main47322-36430iXZB50,51..6FC200512-200708

main47322-36480iBZB40,50200708-201501

main47322-36490iXZB50..WOC;XZB40..5F..IV5200708-201108

main47322-36510iXZB50,51..HDCR..CBU200708-201108

main47322-36540iXZB4#,5#..DCR201108-201501

sub47322-36550

main47322-36541iXZB4#,5#..DCR201501

sub47322-36551

main47322-36550iXZB50,51..HDCR201108-201501

main47322-36551iXZB50,51..HDCR201501

47324TUBE, REAR BRAKE, NO.4

main47324-36290iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47324-36300iBB55..ST199512-199705

main47324-36341iBB58199610-200408

main47324-36361iHZB40,46199907-200708

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36090iBB4#..WOC199301-199907

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-36210iBB4#,HDB5#,HZB4#,5#199301-201501

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-36200iBB4#,HDB5#,HZB4#,5#199301-201501

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-36190iBB4#,HDB5#,HZB4#,5#199301-199907

main47353-36230iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU199907-201501

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-36190iBB58199610-200408

main47353-36210iBB4#,HDB5#,HZB4#,5#199301-201501

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-36090iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)199301-201501

47371ACLAMP, BRAKE TUBE, NO.1

main47371-36040iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main47371-36110iBB58,BZB40,50,HDB5#,HZB4#,5#199907-201612

47372CLAMP, BRAKE TUBE, NO.2

main47371-36060iBB4#,HDB5#,HZB4#,5#199301-199907

main47371-36080iBB5#..WT199610-199907

main47371-36080iBB58199907-200408

main47373-35040iXZB51..SULNG200408-201501

main47373-35040iBB58200210-200408

main47373-36040iBB58199907-200210

sub47373-35040

47373BCLAMP, BRAKE TUBE, NO.3

main47372-36040iBB5#..WT199610-200408

main47372-36050iHDB51..IV1199805-199907

main47372-36050iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main90949-01536iXZB51..SULNG199907-201501

main90949-01536iXZB40..5F..IV5200708-201501

main90949-01D59iXZB40..LX,STD200708-201501

47374CONNECTOR, TUBE

main47307-36010iBB4#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

main47307-36030iHDB51,HZB41199301-199907

main47307-36030iHDB51..IV1199805-199907

main47307-36040iBB5#199512-199907

main47307-36080iXZB4#..DX,LX,STD199907-200708

main47307-36090iHZB40,46199907-200708

main47307-36090iBB58,BZB40,50,HDB5#,HZB41,5#199907-200408

main47307-36100iXZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU200708-201501

47374BCLAMP, BRAKE TUBE, NO.4

main47371-28020iBZB40,50,XZB4#,5#200708-201501

main47371-35130iXZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD199907-200708

main47371-36050iHDB50,HZB5#199301-199907

main47371-36050iHDB50,HZB5#199301-199907

main47371-36080iBB55..WT199610-200408

main47372-36060iBB4#,HDB5#,HZB4#,5#199301-199907

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47371-36110iBB58199907-200408

main47381-36120iBB5#199601-199907

main47381-36120iBB4#,HDB5#,HZB4#,5#199301-199907

main47381-36140iBB5#199601-199907

main47381-36160iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5199907-201501

main47381-36170iBB58199907-200408

9011908A46

main90119-08A46

9017906161

main90179-06161

9046106112

main90461-06112

9046206017

main90462-06017

9046400549

main90464-00549

9046808044

main90468-08044

9048001187

main90480-01187

9048001335

main90480-01335

9048001359

main90480-01359

9090480004

main90904-80004

9094902081

main90949-02081

9094902085

main90949-02085

9094902086

main90949-02086

91611B0816

main91611-B0816

9164280825

main91642-80825

9165160614

main91651-60614

9165160616

main91651-60616

9413000802

main94130-00802

46 parts on this diagram · 27 diagrams in section
