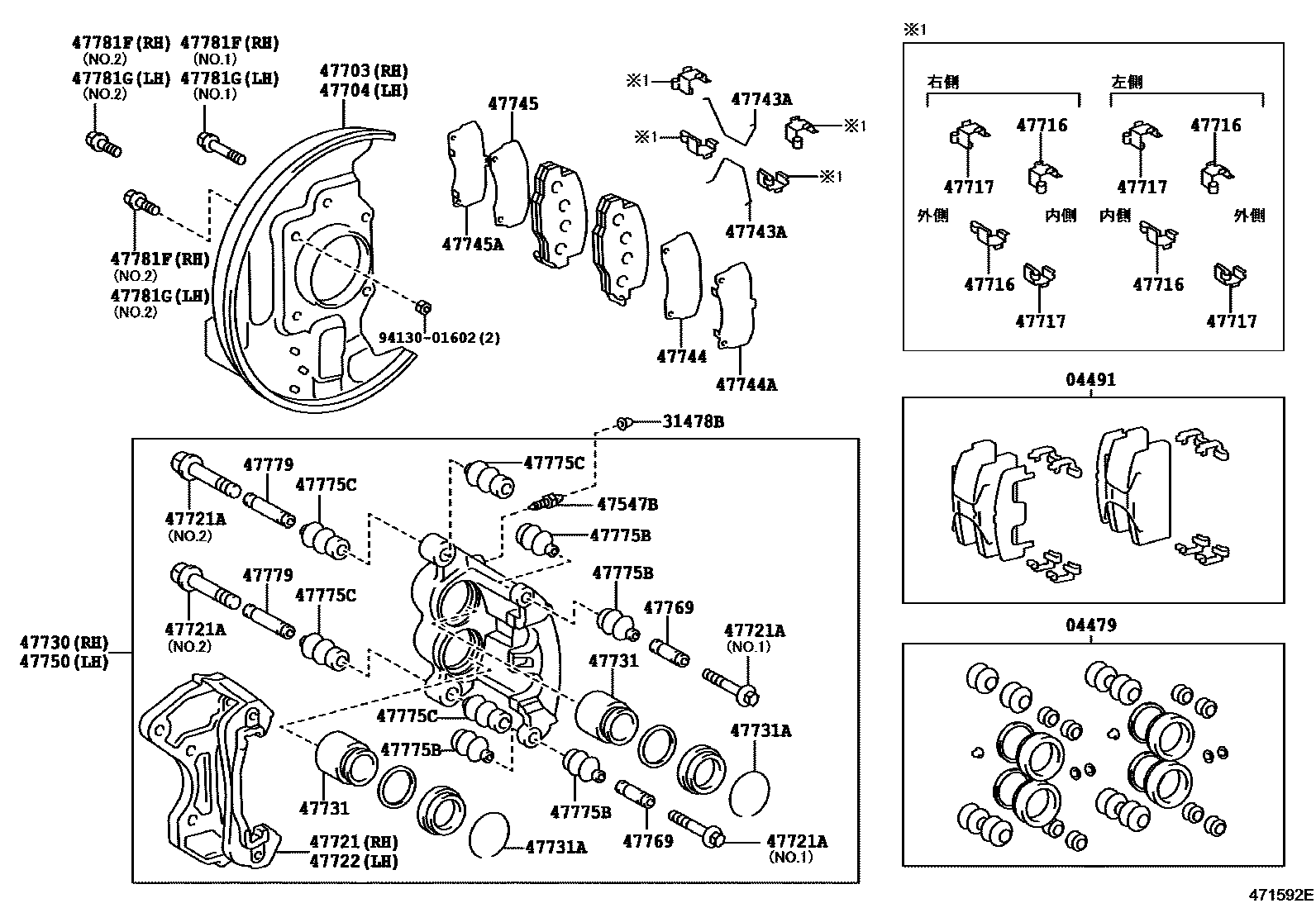

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-36020iBZB40,50,XZB4#,5#201501

main04479-60020iBB5#199512-199907

04491PAD KIT, DISC BRAKE, FRONT

main04491-36060iHDB51,HZB41199301-199308

main04491-36070iBB4#,HZB40199301-199505

main04491-36080iHDB5#,HZB41,5#199301-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXZB51..SULNG200408-200512

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36040iBB4#,HDB5#,HZB4#,5#199301-199907

main47703-36060iBZB40,50,HDB5#,HZB4#,5#199907-200408

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36040iBB4#,HDB5#,HZB4#,5#199301-199907

main47704-36060iBZB40,50,HDB5#,HZB4#,5#199907-200408

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iBZB40,50,HDB5#,HZB4#,5#199907-200408

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iBB4#,HDB5#,HZB4#,5#199301-199907

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-36030iHZB40,46199907-200408

main47721-36040iHZB40..26S..WC;HDB5#,HZB41,46,5#..09S,10S,20S,24S,26S,29S,49S199907-200408

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08992×4iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

main90119-12256×4iBZB40,50,XZB4#,5#201501

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-36030iHZB40,46199907-200408

main47722-36040iHZB40,46..08S,19S200310-200408

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-36030iXZB40..5F..IV5200408-200908

main47730-36040iBZB40,50,HDB5#,HZB41,5#; HZB40,46..(09S,26S)..LX199907-200408

main47730-36050iBB58199907-200408

47731PISTON, FRONT DISC BRAKE

main47731-36020×4iBZB40,50,HDB5#,HZB4#,5#199907-200408

main47731-60010×8iBB58199907-200408

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-50003×8iBB58199907-200408

main90522-61001×4iBZB40,50,HDB5#,HZB4#,5#199907-200408

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47742-36010×2iBB4#,HDB5#,HZB4#,5#199301-199907

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47745-36010×2iBB4#,HDB5#,HZB4#,5#199301-199907

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-36010×2iBB4#,HDB5#,HZB4#,5#199301-199907

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47745-36010×2iBB4#,HDB5#,HZB4#,5#199301-199907

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-36030iBB4#,HZB40199301-199907

main47750-36040iHDB5#,HZB41,5#199301-199907

main47750-36050iBB58199907-200408

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXZB51..SULNG200408-200512

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iBB4#,HDB5#,HZB4#,5#199301-199907

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iBZB40,50,XZB4#,5#201501

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90105-16044×2iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

main90105-16045×2iBZB40,50,XZB4#,5#201501

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90105-16044×2iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

main90105-16045×2iBZB40,50,XZB4#,5#201501

9413001602

main94130-01602

27 parts on this diagram · 5 diagrams in section
