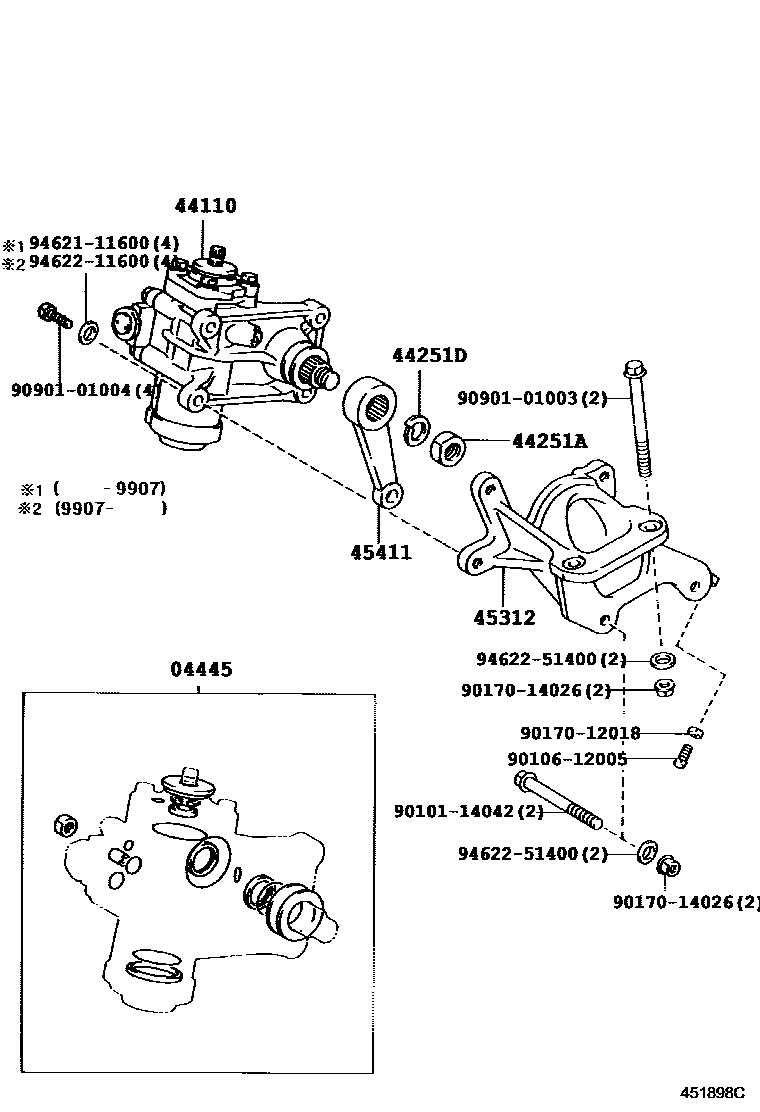

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1���� 0009 1���� 0010 1��

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-36100iBB4#,HDB5#,HZB4#,5#199301-199907

main04445-36120iBB5#199512-199907

main04445-37040iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

44110GEAR ASSY, POWER STEERING

main44110-36300iBB4#,HDB5#,HZB4#,5#199301-199907

main44110-36330iBB5#199512-199907

main44110-36350iBB58,HDB5#,HZB4#,5#199909-200010

main44110-36370iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU200408-201501

main44110-36380iBB58199907-199909

44251ANUT, CASTLE(FOR PITMAN ARM)

main90170-30001iXZB51..SULNG200408-200512

44251DWASHER(FOR PITMAN ARM)

main90204-30040iBZB40,50,XZB4#,5#201501

45312BRACKET, STEERING GEAR HOUSING

main45312-36210iBB4#,HDB5#,HZB4#,5#199301-199907

main45312-36230iBB5#199512-199907

main45312-36240iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

45411ARM, PITMAN

main45411-36570iBB4#,HDB5#,HZB4#,5#199301-199907

main45411-36590iBB5#199512-199907

main45411-36600iBB58199907-200408

main45411-36610iBZB40,50,HDB5#,HZB4#,5#199907-200408

main45411-65060iBB55199512-199705

9010114042

main90101-14042

9010612005

main90106-12005

9017012018

main90170-12018

9017014026

main90170-14026

9090101003

main90901-01003

9090101004

main90901-01004

9462111600

main94621-11600

9462211600

main94622-11600

9462251400

main94622-51400

15 parts on this diagram · 10 diagrams in section
