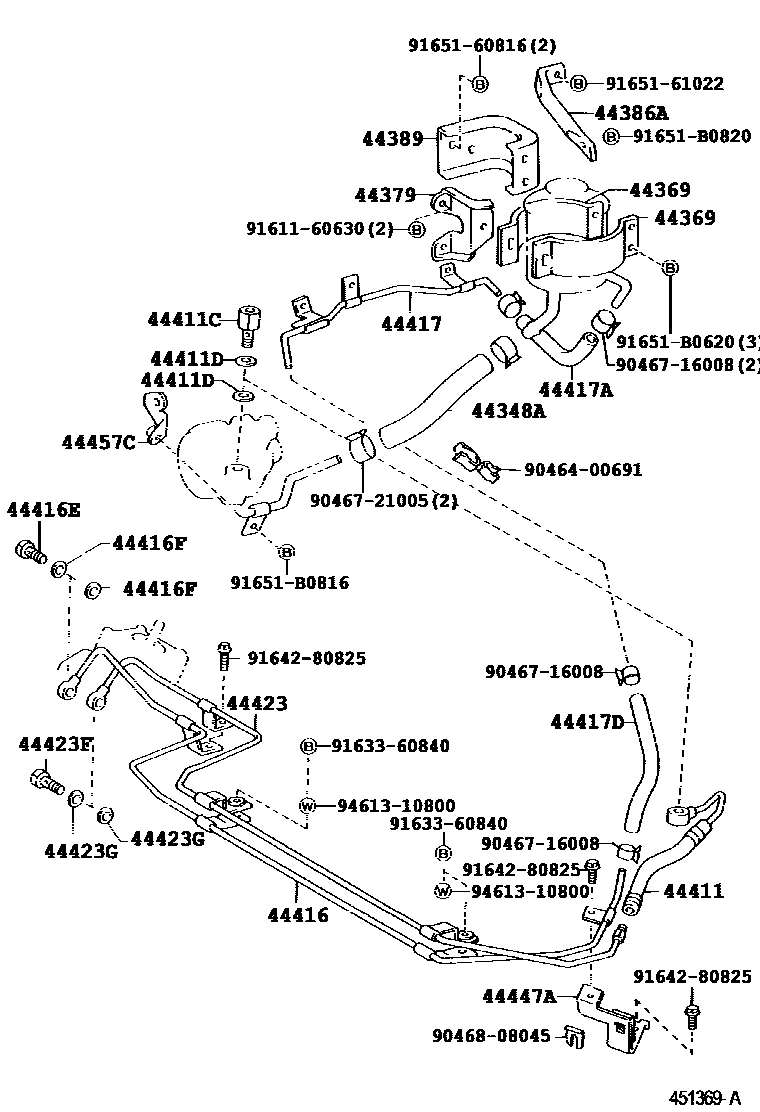

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36180iBB58199907-200408

main44348-36250iHDB5#,HZB4#,5#199605-199907

main44348-36260iBB4#199301-199907

main44348-36280iBB5#199605-199907

main44348-36300iHDB5#199907-200408

main44348-36350iBZB40,50201501

main44348-36360iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main44348-36380iXZB4#,5#201108-201501

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36010×2iBB5#199512-199907

main44369-36020×2iBB4#199301-199907

44379BRACKET, OIL RESERVOIR, NO.2

main44369-36040iHDB5#199907-200408

main44379-36150iBB4#199301-199505

main44379-36170iBB5#199512-199907

main44379-36190iBB58199907-200408

main44379-37020iBB4#199505-199907

44386ASUPPORT, OIL RESERVOIR

main44386-36100iBB4#199301-199907

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36060iBB4#199301-199907

44411HOSE, PRESSURE FEED

main44411-36401iBZB40,50..LX200408-201501

main44411-36410iHDB5#,HZB4#,5#199301-199907

main44411-36500iHDB5#199907-200310

main44411-36501iHDB5#200310-200408

main44411-36550iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201501

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16020iHDB5#199907-200408

main90404-16024iBZB40,50..STD200408-201108

main90904-01001iBB58199907-200408

main96341-41603iXZB51..SULNG..6FC200408-201108

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iBZB40,50,XZB4#,5#201501

main44327-30040iHDB5#200203-200408

main90430-16168×2iBB58,HDB5#,HZB4#,5#199907-200203

main90430-16242×2iBB58200203-200408

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36310iHDB5#199907-200408

main44416-36350iBB4#,HDB5#,HZB4#,5#199301-199907

main44416-36351iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

44416EBOLT, UNION(FOR RETURN TUBE)

main90401-14003iBZB40,50,XZB4#,5#201501

44416FGASKET(FOR RETURN TUBE)

main90430-14014×2iBZB40,50,XZB4#,5#201501

main90430-14235×2iBZB40,50,XZB4#,5#200408-200706

44417TUBE, RETURN, NO.2

main44417-36210iBB4#199301-199907

44417AHOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)

main90445-18146iBB4#199301-199907

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18082iHDB5#199907-200408

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36270iHDB5#,HZB4#,5#199301-199505

main44423-36310iBB4#199301-199505

main44423-36311iHDB5#,HZB4#,5#199907-200104

main44423-36312iBZB40,50,HDB5#,HZB4#,5#200104-200408

44423FBOLT, UNION

main90401-14003iBB4#,5#,HDB5#,HZB4#,5#199301-199907

44423GGASKET, UNION BOLT

main90430-14014×2iBZB40,50,XZB4#,5#201501

main90430-14235×2iBZB40,50,HDB5#,HZB4#,5#199909-200408

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36200iBB4#,HDB5#,HZB4#,5#199301-199907

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36040iBZB40,50200203-200408

main44457-36090iHDB5#,HZB4#,5#199301-199907

9046400691

main90464-00691

9046716008

main90467-16008

9046721005

main90467-21005

9046808045

main90468-08045

9161160630

main91611-60630

9163360840

main91633-60840

9164280825

main91642-80825

9165160816

main91651-60816

9165161022

main91651-61022

91651B0620

main91651-B0620

91651B0816

main91651-B0816

91651B0820

main91651-B0820

9461310800

main94613-10800

32 parts on this diagram · 8 diagrams in section
