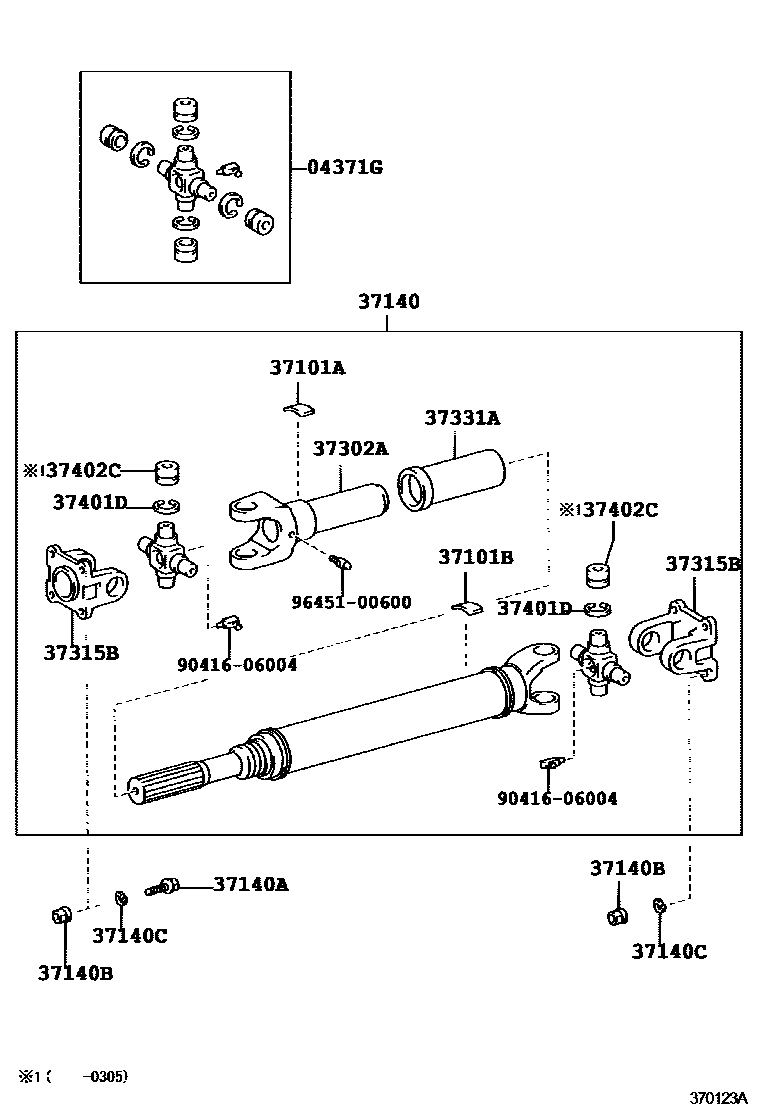

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���� 0003 1�� 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36030iHDB5#,HZB5#199301-201501

sub04371-60210

main04371-36030iBZB40,XZB4#201501-201511

sub04371-60210

main04371-36050iHDB5#,HZB5#199301-201501

main04371-36050iBZB40,XZB4#201501

main04371-60210iBZB40,XZB4#201512

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-35031iBB5#199512-199907

sub04371-35050

main04371-35040iBB5#199512-199907

sub04371-35050

main04371-35050iBB58199907-200008

sub04371-35051

main04371-35051iBB58200008-200305

sub04371-60070

main04371-60070iBB58200305-200408

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01136iBB58,BZB40,50,HDB5#,HZB4#,5#199301-200408

main90937-01140iBB58,BZB40,50,HDB5#,HZB4#,5#199301-200408

main90937-01147iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01148iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01149iBB58,BZB40,50,HDB5#,HZB4#,5#199301-200408

main90937-01150iBB58,BZB40,50,HDB5#,HZB4#,5#199301-200408

main90937-01151iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01152iBB58,BZB40,50,HDB5#,HZB4#,5#199301-200408

main90937-01153iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01154iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01155iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01156iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01157iBB4#,5#,HDB5#,HZB4#,5#199301-200408

main90937-01158iBB4#,5#,HDB5#,HZB4#,5#199301-200408

37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

main90937-01132iBB58199907-200408

main90937-01136iBB58199907-200408

main90937-01140iBB58199907-200408

main90937-01147iBB58199907-200408

main90937-01148iBB58199907-200408

main90937-01149iBB58199907-200408

main90937-01150iBB58199907-200408

main90937-01151iBB58199907-200408

main90937-01152iBB58199907-200408

main90937-01153iBB58199907-200408

main90937-01154iBB58199907-200408

main90937-01155iBB58199907-200408

main90937-01156iBB58199907-200408

main90937-01157iBB58199907-200408

main90937-01158iBB58199907-200408

main90937-01184iBB58199512-200408

main90937-01191iBB5#199512-200408

main90937-01192iBB5#199512-200408

main90937-01193iBB58199512-200408

main90937-01194iBB58199512-200408

main90937-01198iBB58199512-200408

main90937-01199iBB5#199512-200408

main90937-01200iBB58199512-200408

main90937-01268iBB5#199512-200408

main90937-01269iBB5#199512-200408

37140SHAFT ASSY, PROPELLER, FRONT

main37120-36530iXZB50,51..WC..5F199705-201501

main37120-36540iBZB50,HZB5#..5F199301-201501

main37120-36560iHDB5#,HZB5#..4FC199301-200408

main37120-36740iXZB5#..6FC200512-201501

main37140-65010iBB58199512-200408

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-11013iBB5#199512-200408

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90179-11005iBB5#199512-200408

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-11013iBB5#199512-200408

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36020iBB4#,HDB5#,HZB4#,5#199301-200408

37302AYOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-35050iBB5#199512-200408

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36020iBB4#,HZB4#199301-200408

sub37315-60090

37315BY0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

main37315-35060iBB5#199512-200408

37331ACOVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST

main37305-35020iBB5#199512-200408

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039iBB58200007-200408

main90520-25040iBB58200007-200408

main90520-25041iBB58200007-200408

main90520-25042iBB58200007-200408

main90520-25043iBB58200007-200408

main90520-25044iBB58200007-200408

main90520-25045iBB58200007-200408

main90520-25046iBB58200007-200408

main90520-25047iBB58200007-200408

main90520-25048iBB58200007-200408

main90520-25049iBB58200007-200408

main90520-25050iBB58200007-200408

main90520-25051iBB58200007-200408

main90520-25052iBB58200007-200408

main90520-25053iBB58200007-200408

main90520-25054iBB58200007-200408

main90520-25055iBB58200007-200408

main90520-25056iBB58200007-200408

main90520-25057iBB58200007-200408

main90520-25058iBB58200007-200408

main90520-26050iBB58199512-200007

sub90520-25039

main90520-26051iBB5#199512-200007

sub90520-25040

main90520-26052iBB5#199512-200007

sub90520-25041

main90520-26053iBB58199512-200007

sub90520-25042

main90520-26054iBB5#199512-200007

sub90520-25043

main90520-26055iBB58199512-200007

sub90520-25044

main90520-26056iBB58199512-200007

sub90520-25045

main90520-26057iBB5#199512-200007

sub90520-25046

main90520-26058iBB5#199512-200007

sub90520-25047

main90520-26059iBB5#199512-200007

sub90520-25048

main90520-26062iBB58199806-200007

sub90520-25049

main90520-26063iBB58199806-200007

sub90520-25050

main90520-26064iBB58199806-200007

sub90520-25051

main90520-26065iBB58199806-200007

sub90520-25052

main90520-26066iBB58199806-200007

sub90520-25053

main90520-26067iBB58199806-200007

sub90520-25054

main90520-26068iBB58199806-200007

sub90520-25055

main90520-26069iBB58199806-200007

sub90520-25056

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36070iBB4#,HZB4#199301-200408

main37402-36080iHDB5#,HZB5#199301-200408

37402CBEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-30011iBB5#199512-199907

sub04371-60070

sub04371-60100

main37402-30011iBB58199907-200305

sub04371-60070

sub04371-60100

main37402-30021iBB5#199512-200305

sub04371-60070

sub04371-60100

9041606004

main90416-06004

9645100600

main96451-00600

18 parts on this diagram · 8 diagrams in section
