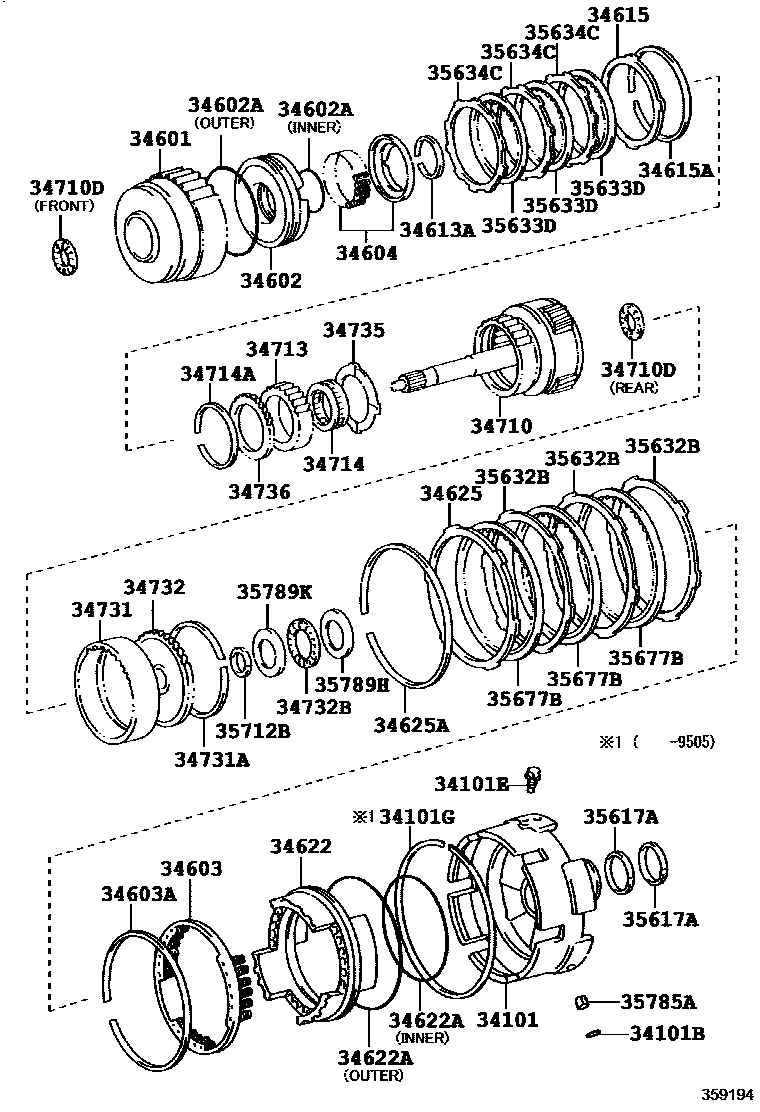

OVERDRIVE GEAR (ATM)

34101CASE SUB-ASSY, OVERDRIVE

main34101-60010iHZB4#,5#..4FC199301-199505

main34101-60030iHDB5#..4FC199301-199505

main34101-60040iXZB4#,5#..4FC200408-200708

34101BRING, O (FOR OVERDRIVE CASE)

main90301-09008×3iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-10096×6iHZB4#,5#..4FC199301-199505

main90105-12307×3iBB58,HDB5#,HZB4#,5#..4FC199801-199907

main90109-12048×3iBB5#,HDB5#,HZB4#,5#..4FC199505-199801

34101GRING, HOLE SNAP (FOR OVERDRIVE CASE)

main90521-99043iHZB4#,5#..4FC199301-199505

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-36010iHZB4#,5#..4FC199301-199505

main34601-36020iXZB4#,5#..4FC200408-200708

main34601-60010iHDB5#..4FC199301-199505

main34601-60030iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-60010iHDB5#,HZB4#,5#..4FC199301-199505

main34602-60020iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-59003iHDB5#,HZB4#,5#..4FC199301-199505

main90301-64007iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

main90301-99027iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-60010iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

main35608-36010iHZB4#,5#..4FC199301-199505

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99021iHZB4#,5#..4FC199301-199407

main90521-99109iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-60010iHDB5#,HZB4#,5#..4FC199301-199505

main34604-60020iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-50001iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

34615FLANGE, OVERDRIVE CLUTCH

main35675-60010iHDB5#,HZB4#,5#..4FC199301-199505

main35675-60020iHDB5#,HZB4#,5#..4FC199301-199505

main35675-60050iHDB5#,HZB4#,5#..4FC199301-199505

main35675-60060iHDB5#,HZB4#,5#..4FC199301-199505

main35675-60070iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

main35675-60080iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

main35675-60090iBB58,HDB5#,HZB4#,5#..4FC199907-200408

main35675-60100iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99017iHDB5#,HZB4#,5#..4FC199301-199505

main90521-99115iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

34622PISTON, OVERDRIVE BRAKE

main34622-60010iHDB5#..4FC199301-199505

main35621-36010iHZB4#,5#..4FC199301-199505

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99030iBB58,HDB5#,HZB4#,5#..4FC199907-200408

main90301-99031iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-60010iHDB5#..4FC199301-199505

main34625-60020iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

main35676-60010iHZB4#,5#..4FC199301-199505

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99021iHZB4#,5#..4FC199301-199407

main90521-99109iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-36010iHZB4#,5#..4FC199301-199505

main34710-36020iXZB4#,5#..4FC200408-200708

main34710-60010iHDB5#..4FC199301-199505

main34710-60040iBB5#,HDB5#,HZB4#,5#..4FC199505-199709

main34710-60050iBB58,HDB5#,HZB4#,5#..4FC199709-199907

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23001iXZB4#,5#..4FC200408-200708

main90374-28012iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-90002iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

34731GEAR, OVERDRIVE PLANETARY RING

main34731-36010iHZB4#,5#..4FC199301-199505

main34731-36020iXZB4#,5#..4FC200408-200708

main34731-60010iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90520-99093iXZB4#,5#..4FC200408-200708

main90521-99019iHZB4#,5#..4FC199301-199505

main90521-99110iHDB5#..4FC199301-199505

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-36011iHZB4#,5#..4FC199301-199505

main34732-36020iXZB4#,5#..4FC200408-200708

main34732-60010iHDB5#..4FC199301-199505

main34732-60020iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-34001iBB5#,HDB5#,HZB4#,5#..4FC199301-199801

main90374-34007iBB58,HDB5#,HZB4#,5#..4FC199801-199907

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34737-36010iHZB4#,5#..4FC199301-199505

main34737-60010iHDB5#..4FC199301-199505

main34737-60020iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34738-36010iBB58,HDB5#,HZB4#,5#..4FC199907-200408

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-36020×2iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35632BPLATE, BRAKE (FOR OVERDRIVE)

main35632-36010×3iHZB4#,5#..4FC199301-199505

main35632-60010×2iHDB5#..4FC199301-199505

main35632-60020iHDB5#..4FC199301-199505

main35632-60050iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-36040×3iHDB5#,HZB4#,5#..4FC199301-199505

main35633-60050×3iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35634-36010×3iHDB5#,HZB4#,5#..4FC199301-199505

main35634-60010×3iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35633-36050×3iHDB5#..4FC199301-199505

main35633-36060×3iHZB4#,5#..4FC199301-199505

main35633-60060×3iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

35712BRING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main35712-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35785ARETAINER, OVERDRIVE CASE RING

main35785-36010×3iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-36020iHDB5#,HZB4#,5#..4FC199301-199505

main35789-60030iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

35789KRACE, THRUST BEARING (FOR OVERDRIVE PLANETARY GEAR)

main35789-60020iBB5#,HDB5#,HZB4#,5#..4FC199505-199907

37 parts on this diagram · 1 diagram in section
