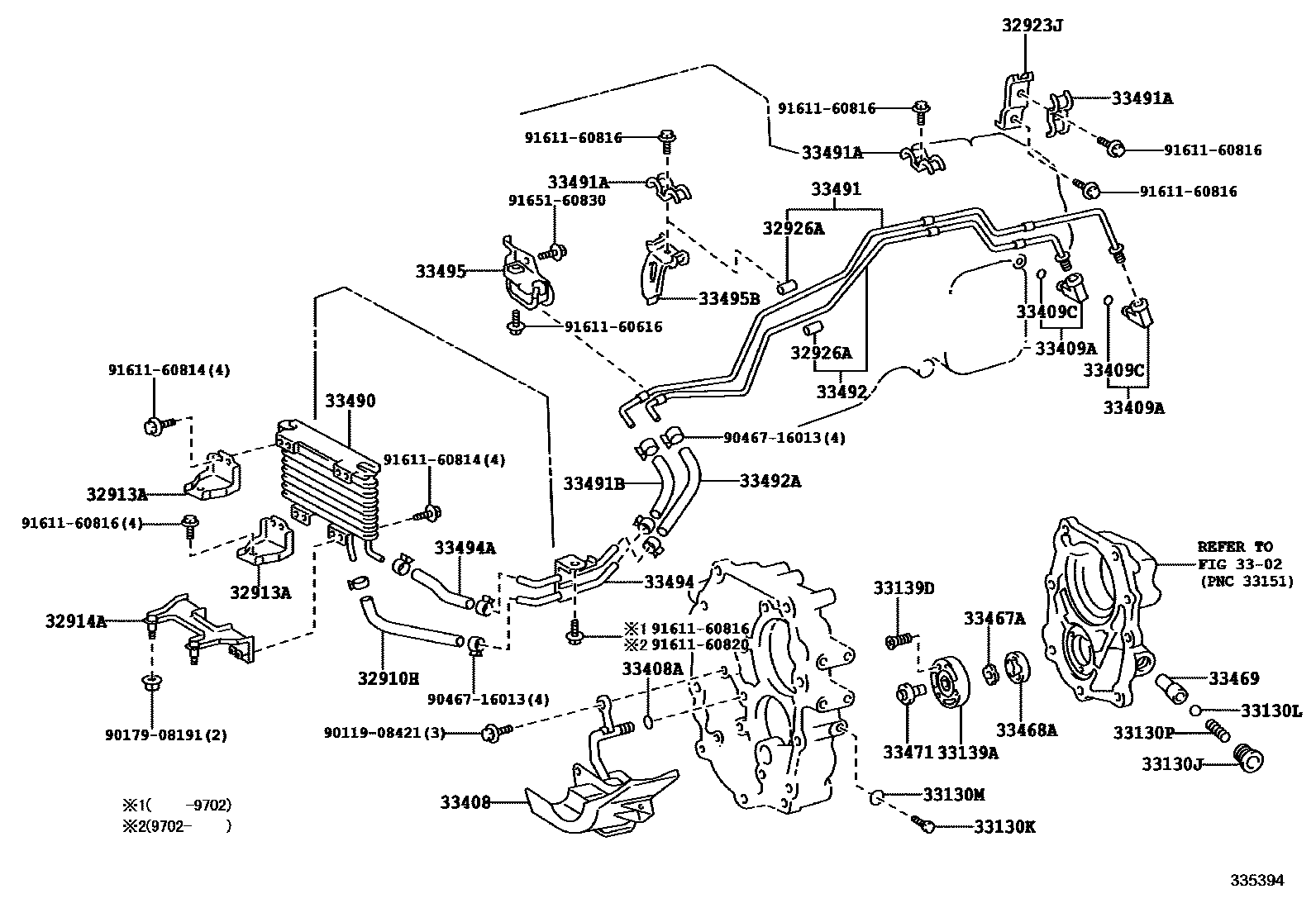

OIL PUMP, OIL COOLER & PIPE (MTM)
32910HHOSE(FOR MANUAL TRANSMISSION OIL COOLER)
32913ABRACKET, TRANSMISSION OIL COOLER
32914ASTAY, MANUAL TRANSMISSION OIL COOLER
32923JCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.4
32926ACUSHION, OIL COOLER TUBE(MTM)
3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33130JPLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33130KPLUG, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33130LBALL(FOR TRANSMISSION OIL PUMP COVER)
33130MRING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33130PSPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER)
33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)
33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)
33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL
33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33409CRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)
33467AROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION)
33468AROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION)
33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)
33471SHAFT, MANUAL TRANSMISSION OIL PUMP DRIVE, NO.1
33490COOLER ASSY, MANUAL TRANSMISSION OIL
33491TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1
33491ACLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1
33491BHOSE, NO.1 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33492TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2
33492AHOSE, NO.2 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33494TUBE, MANUAL TRANSMISSION OIL COOLER, NO.3
33494AHOSE, NO.3 (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33495CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.2
33495BCLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.3
9011908421
main90119-08421
9017908191
main90179-08191
9046716013
main90467-16013
9161160616
main91611-60616
9161160814
main91611-60814
9161160816
main91611-60816
9161160820
main91611-60820
9165160830
main91651-60830
39 parts on this diagram · 1 diagram in section
